Reversible 37mm DC Spur Gear Motor 15w DC Gear Motor 12V 60 Rpm
Price:
Negotiation
MOQ:
120pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

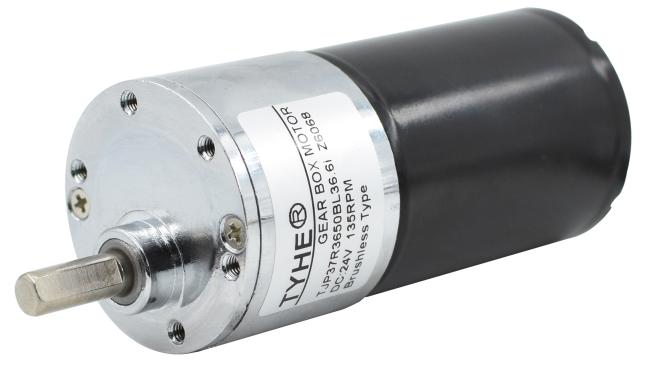

Reversible 37mm Size 12 Volt 24 Volt 15watts 60 Rpm Brushless Dc Gear Motor For Barbecue Machine

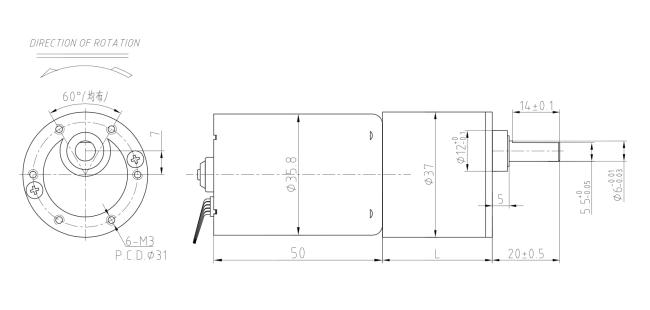

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| 3650BL | 12 | 5000 | 350 | 4000 | 1.07 | 19.20 | 8.04 | 62.83 | 57.60 | 6.50 |
| 3650BL | 24 | 5000 | 160 | 4000 | 0.53 | 19.80 | 8.29 | 64.99 | 59.40 | 3.50 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-5000RPM Input | 24V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 6.5 | 615.4 | 6.51 | 101.09 | 303.26 | 615.4 | 6.72 | 104.25 | 312.74 |
| 22.5 | 73 | 9.3 | 430.1 | 5.87 | 130.35 | 391.05 | 430.1 | 6.05 | 134.42 | 403.27 |
| 22.5 | 73 | 11.8 | 339.0 | 5.87 | 165.39 | 496.17 | 339.0 | 6.05 | 170.56 | 511.67 |
| 22.5 | 73 | 14.2 | 281.7 | 5.87 | 199.03 | 597.08 | 281.7 | 6.05 | 205.25 | 615.74 |
| 22.5 | 73 | 17.4 | 229.9 | 5.87 | 243.88 | 731.64 | 229.9 | 6.05 | 251.50 | 754.50 |
| 24.5 | 65.6 | 21.8 | 183.5 | 5.28 | 274.58 | 823.73 | 183.5 | 5.44 | 283.16 | 849.47 |
| 24.5 | 65.6 | 27.5 | 145.5 | 5.28 | 346.37 | 1039.10 | 145.5 | 5.44 | 357.19 | 1071.58 |
| 24.5 | 65.6 | 36.6 | 109.3 | 5.28 | 460.98 | 1382.95 | 109.3 | 5.44 | 475.39 | 1426.17 |
| 24.5 | 65.6 | 40.4 | 99.0 | 5.28 | 508.85 | 1526.54 | 99.0 | 5.44 | 524.75 | 1574.24 |
| 26.5 | 59 | 58.1 | 68.8 | 4.74 | 658.16 | 1974.47 | 68.8 | 4.89 | 678.72 | 2036.17 |
| 26.5 | 59 | 73.4 | 54.5 | 4.74 | 831.48 | 2494.43 | 54.5 | 4.89 | 857.46 | 2500.00 |
| 26.5 | 59 | 83 | 48.2 | 4.74 | 940.22 | 2500.00 | 48.2 | 4.89 | 969.61 | 2500.00 |
| 26.5 | 59 | 89 | 44.9 | 4.74 | 1008.19 | 2500.00 | 44.9 | 4.89 | 1039.70 | 2500.00 |
| 26.5 | 59 | 95 | 42.1 | 4.74 | 1076.16 | 2500.00 | 42.1 | 4.89 | 1109.79 | 2500.00 |
| 26.5 | 59 | 103 | 38.8 | 4.74 | 1166.78 | 2500.00 | 38.8 | 4.89 | 1203.25 | 2500.00 |
| 29.5 | 53 | 119 | 33.6 | 4.26 | 1210.94 | 2500.00 | 33.6 | 4.40 | 1248.79 | 2500.00 |
| 29.5 | 53 | 136 | 29.4 | 4.26 | 1383.94 | 2500.00 | 29.4 | 4.40 | 1427.18 | 2500.00 |
| 29.5 | 53 | 171 | 23.4 | 4.26 | 1740.10 | 2500.00 | 23.4 | 4.40 | 1794.47 | 2500.00 |
| 29.5 | 53 | 194 | 20.6 | 4.26 | 1974.14 | 2500.00 | 20.6 | 4.40 | 2035.84 | 2500.00 |
| 29.5 | 53 | 207 | 19.3 | 4.26 | 2106.43 | 2500.00 | 19.3 | 4.40 | 2172.26 | 2500.00 |
| 29.5 | 53 | 221 | 18.1 | 4.26 | 2248.90 | 2500.00 | 18.1 | 4.40 | 2319.17 | 2500.00 |
| 29.5 | 53 | 242 | 16.5 | 4.26 | 2462.59 | 2500.00 | 16.5 | 4.40 | 2500.00 | 2500.00 |
| 29.5 | 53 | 277 | 14.4 | 4.26 | 2500.00 | 2500.00 | 14.4 | 4.40 | 2500.00 | 2500.00 |
| 29.5 | 53 | 305 | 13.1 | 4.26 | 2500.00 | 2500.00 | 13.1 | 4.40 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 350 | 11.4 | 3.84 | 2500.00 | 2500.00 | 11.4 | 3.96 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 422 | 9.5 | 3.84 | 2500.00 | 2500.00 | 9.5 | 3.96 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 465 | 8.6 | 3.84 | 2500.00 | 2500.00 | 8.6 | 3.96 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 513 | 7.8 | 3.84 | 2500.00 | 2500.00 | 7.8 | 3.96 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 532 | 7.5 | 3.84 | 2500.00 | 2500.00 | 7.5 | 3.96 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 586 | 6.8 | 3.84 | 2500.00 | 2500.00 | 6.8 | 3.96 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 712 | 5.6 | 3.84 | 2500.00 | 2500.00 | 5.6 | 3.96 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 784 | 5.1 | 3.84 | 2500.00 | 2500.00 | 5.1 | 3.96 | 2500.00 | 2500.00 |
Please let us know your requirements and we will provide you with transmission solutions.
