RS 540 RS 545 DC Spur Gear Motor 24V Gear Reduction Motor For Smart Mop
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
High Precision 37mm Size 12v 24v 6v 540 545 Brushed Dc Gear Reduction Motor For Smart Mop

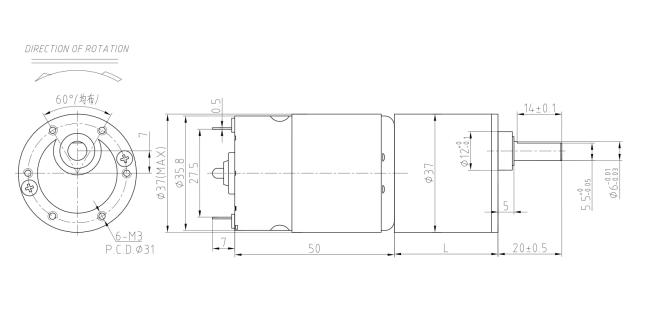

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS545 | 6 | 3200 | 280 | 2560 | 0.81 | 11.20 | 3.00 | 61.65 | 33.60 | 4.70 |
| RS545 | 12 | 2000 | 70 | 1600 | 0.20 | 8.95 | 1.50 | 63.54 | 26.85 | 1.10 |
| RS545 | 24 | 6000 | 160 | 4800 | 0.60 | 17.50 | 8.80 | 61.25 | 52.50 | 4.30 |
| RS545 | 24 | 8300 | 200 | 6640 | 0.88 | 19.30 | 13.42 | 63.90 | 57.90 | 6.90 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 6V-3200RPM Input | 12V-2000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 6.5 | 393.8 | 2.43 | 58.97 | 176.90 | 246.2 | 1.21 | 47.12 | 141.37 |
| 22.5 | 73 | 9.3 | 275.3 | 2.19 | 76.04 | 228.11 | 172.0 | 1.09 | 60.76 | 182.28 |
| 22.5 | 73 | 11.8 | 216.9 | 2.19 | 96.48 | 289.43 | 135.6 | 1.09 | 77.10 | 231.29 |
| 22.5 | 73 | 14.2 | 180.3 | 2.19 | 116.10 | 348.30 | 112.7 | 1.09 | 92.78 | 278.33 |
| 22.5 | 73 | 17.4 | 147.1 | 2.19 | 142.26 | 426.79 | 92.0 | 1.09 | 113.68 | 341.05 |
| 24.5 | 65.6 | 21.8 | 117.4 | 1.97 | 160.17 | 480.51 | 73.4 | 0.98 | 127.99 | 383.98 |
| 24.5 | 65.6 | 27.5 | 93.1 | 1.97 | 202.05 | 606.14 | 58.2 | 0.98 | 161.46 | 484.37 |
| 24.5 | 65.6 | 36.6 | 69.9 | 1.97 | 268.91 | 806.72 | 43.7 | 0.98 | 214.89 | 644.66 |
| 24.5 | 65.6 | 40.4 | 63.4 | 1.97 | 296.83 | 890.48 | 39.6 | 0.98 | 237.20 | 711.59 |
| 26.5 | 59 | 58.1 | 44.1 | 1.77 | 383.92 | 1151.77 | 27.5 | 0.88 | 306.80 | 920.39 |
| 26.5 | 59 | 73.4 | 34.9 | 1.77 | 485.03 | 1455.08 | 21.8 | 0.88 | 387.59 | 1162.77 |
| 26.5 | 59 | 83 | 30.8 | 1.77 | 548.46 | 1645.39 | 19.3 | 0.88 | 438.28 | 1314.84 |
| 26.5 | 59 | 89 | 28.8 | 1.77 | 588.11 | 1764.34 | 18.0 | 0.88 | 469.96 | 1409.89 |
| 26.5 | 59 | 95 | 26.9 | 1.77 | 627.76 | 1883.28 | 16.8 | 0.88 | 501.65 | 1504.94 |
| 26.5 | 59 | 103 | 24.9 | 1.77 | 680.62 | 2041.87 | 15.5 | 0.88 | 543.89 | 1631.67 |
| 29.5 | 53 | 119 | 21.5 | 1.59 | 706.38 | 2119.15 | 13.4 | 0.79 | 564.48 | 1693.43 |
| 29.5 | 53 | 136 | 18.8 | 1.59 | 807.30 | 2421.89 | 11.8 | 0.79 | 645.12 | 1935.35 |
| 29.5 | 53 | 171 | 15.0 | 1.59 | 1015.06 | 2500.00 | 9.4 | 0.79 | 811.14 | 2433.42 |
| 29.5 | 53 | 194 | 13.2 | 1.59 | 1151.58 | 2500.00 | 8.2 | 0.79 | 920.24 | 2500.00 |
| 29.5 | 53 | 207 | 12.4 | 1.59 | 1228.75 | 2500.00 | 7.7 | 0.79 | 981.90 | 2500.00 |
| 29.5 | 53 | 221 | 11.6 | 1.59 | 1311.86 | 2500.00 | 7.2 | 0.79 | 1048.31 | 2500.00 |
| 29.5 | 53 | 242 | 10.6 | 1.59 | 1436.51 | 2500.00 | 6.6 | 0.79 | 1147.93 | 2500.00 |
| 29.5 | 53 | 277 | 9.2 | 1.59 | 1644.27 | 2500.00 | 5.8 | 0.79 | 1313.95 | 2500.00 |
| 29.5 | 53 | 305 | 8.4 | 1.59 | 1810.48 | 2500.00 | 5.2 | 0.79 | 1446.77 | 2500.00 |
| 32.5 | 47.8 | 350 | 7.3 | 1.44 | 1873.76 | 2500.00 | 4.6 | 0.72 | 1497.34 | 2500.00 |
| 32.5 | 47.8 | 422 | 6.1 | 1.44 | 2259.22 | 2500.00 | 3.8 | 0.72 | 1805.36 | 2500.00 |
| 32.5 | 47.8 | 465 | 5.5 | 1.44 | 2489.42 | 2500.00 | 3.4 | 0.72 | 1989.32 | 2500.00 |
| 32.5 | 47.8 | 513 | 5.0 | 1.44 | 2500.00 | 2500.00 | 3.1 | 0.72 | 2194.67 | 2500.00 |
| 32.5 | 47.8 | 532 | 4.8 | 1.44 | 2500.00 | 2500.00 | 3.0 | 0.72 | 2275.95 | 2500.00 |
| 32.5 | 47.8 | 586 | 4.4 | 1.44 | 2500.00 | 2500.00 | 2.7 | 0.72 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 712 | 3.6 | 1.44 | 2500.00 | 2500.00 | 2.2 | 0.72 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 784 | 3.3 | 1.44 | 2500.00 | 2500.00 | 2.0 | 0.72 | 2500.00 | 2500.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 24V-6000RPM Input | 24V-8300RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 6.5 | 738.5 | 7.12 | 92.14 | 276.41 | 1021.5 | 10.87 | 101.61 | 304.84 |
| 22.5 | 73 | 9.3 | 516.1 | 6.42 | 118.81 | 356.42 | 714.0 | 9.80 | 131.03 | 393.08 |
| 22.5 | 73 | 11.8 | 406.8 | 6.42 | 150.75 | 452.24 | 562.7 | 9.80 | 166.25 | 498.75 |
| 22.5 | 73 | 14.2 | 338.0 | 6.42 | 181.41 | 544.22 | 467.6 | 9.80 | 200.06 | 600.19 |
| 22.5 | 73 | 17.4 | 275.9 | 6.42 | 222.29 | 666.86 | 381.6 | 9.80 | 245.15 | 735.45 |
| 24.5 | 65.6 | 21.8 | 220.2 | 5.77 | 250.26 | 750.79 | 304.6 | 8.80 | 276.01 | 828.02 |
| 24.5 | 65.6 | 27.5 | 174.5 | 5.77 | 315.70 | 947.10 | 241.5 | 8.80 | 348.17 | 1044.52 |
| 24.5 | 65.6 | 36.6 | 131.1 | 5.77 | 420.17 | 1260.50 | 181.4 | 8.80 | 463.39 | 1390.16 |
| 24.5 | 65.6 | 40.4 | 118.8 | 5.77 | 463.79 | 1391.38 | 164.4 | 8.80 | 511.50 | 1534.49 |
| 26.5 | 59 | 58.1 | 82.6 | 5.19 | 599.88 | 1799.65 | 114.3 | 7.92 | 661.58 | 1984.75 |
| 26.5 | 59 | 73.4 | 65.4 | 5.19 | 757.86 | 2273.57 | 90.5 | 7.92 | 835.81 | 2500.00 |
| 26.5 | 59 | 83 | 57.8 | 5.19 | 856.98 | 2500.00 | 80.0 | 7.92 | 945.12 | 2500.00 |
| 26.5 | 59 | 89 | 53.9 | 5.19 | 918.93 | 2500.00 | 74.6 | 7.92 | 1013.44 | 2500.00 |
| 26.5 | 59 | 95 | 50.5 | 5.19 | 980.88 | 2500.00 | 69.9 | 7.92 | 1081.77 | 2500.00 |
| 26.5 | 59 | 103 | 46.6 | 5.19 | 1063.48 | 2500.00 | 64.5 | 7.92 | 1172.86 | 2500.00 |
| 29.5 | 53 | 119 | 40.3 | 4.66 | 1103.73 | 2500.00 | 55.8 | 7.11 | 1217.25 | 2500.00 |
| 29.5 | 53 | 136 | 35.3 | 4.66 | 1261.40 | 2500.00 | 48.8 | 7.11 | 1391.14 | 2500.00 |
| 29.5 | 53 | 171 | 28.1 | 4.66 | 1586.03 | 2500.00 | 38.8 | 7.11 | 1749.16 | 2500.00 |
| 29.5 | 53 | 194 | 24.7 | 4.66 | 1799.35 | 2500.00 | 34.2 | 7.11 | 1984.43 | 2500.00 |
| 29.5 | 53 | 207 | 23.2 | 4.66 | 1919.93 | 2500.00 | 32.1 | 7.11 | 2117.40 | 2500.00 |
| 29.5 | 53 | 221 | 21.7 | 4.66 | 2049.78 | 2500.00 | 30.0 | 7.11 | 2260.61 | 2500.00 |
| 29.5 | 53 | 242 | 19.8 | 4.66 | 2244.55 | 2500.00 | 27.4 | 7.11 | 2475.42 | 2500.00 |
| 29.5 | 53 | 277 | 17.3 | 4.66 | 2500.00 | 2500.00 | 24.0 | 7.11 | 2500.00 | 2500.00 |
| 29.5 | 53 | 305 | 15.7 | 4.66 | 2500.00 | 2500.00 | 21.8 | 7.11 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 350 | 13.7 | 4.20 | 2500.00 | 2500.00 | 19.0 | 6.41 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 422 | 11.4 | 4.20 | 2500.00 | 2500.00 | 15.7 | 6.41 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 465 | 10.3 | 4.20 | 2500.00 | 2500.00 | 14.3 | 6.41 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 513 | 9.4 | 4.20 | 2500.00 | 2500.00 | 12.9 | 6.41 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 532 | 9.0 | 4.20 | 2500.00 | 2500.00 | 12.5 | 6.41 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 586 | 8.2 | 4.20 | 2500.00 | 2500.00 | 11.3 | 6.41 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 712 | 6.7 | 4.20 | 2500.00 | 2500.00 | 9.3 | 6.41 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 784 | 6.1 | 4.20 | 2500.00 | 2500.00 | 8.5 | 6.41 | 2500.00 | 2500.00 |
Please let us know your requirements and we will provide you with transmission solutions.
