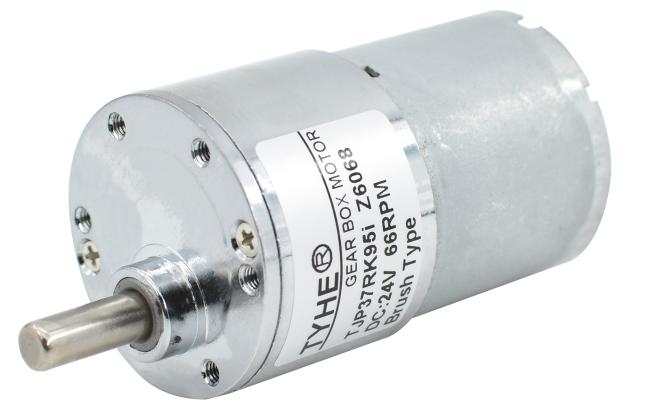

37GB3530R 18kg DC Spur Gear Motor 7V 6V DC Motor High Torque
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
37GB3530R 37mm Powder Gears 6v 7v 12v 18kg Torque Brushed Dc Gear Motor

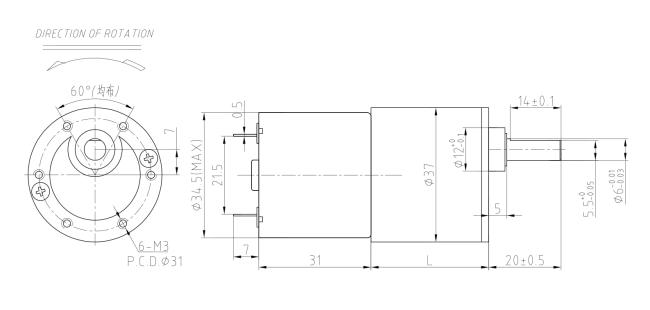

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY3530 | 12 | 5500 | 60 | 4400 | 0.23 | 3.81 | 1.76 | 62.69 | 11.43 | 1.72 |
| ZY3530 | 12 | 6500 | 65 | 5200 | 0.31 | 4.18 | 2.28 | 61.18 | 12.54 | 2.00 |
| ZY3530 | 12 | 7300 | 67 | 5840 | 0.36 | 4.35 | 2.66 | 61.78 | 13.05 | 3.10 |
| ZY3530 | 12 | 9000 | 90 | 7200 | 0.43 | 4.31 | 3.25 | 63.47 | 12.93 | 3.50 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-5500RPM Input | 12V-6500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 6.5 | 676.9 | 1.42 | 20.06 | 60.18 | 800.0 | 1.84 | 22.01 | 66.02 |
| 22.5 | 81 | 7.6 | 578.9 | 1.42 | 23.45 | 70.36 | 684.2 | 1.84 | 25.73 | 77.20 |
| 22.5 | 73 | 9.3 | 473.1 | 1.28 | 25.87 | 77.60 | 559.1 | 1.66 | 28.38 | 85.13 |
| 22.5 | 73 | 11.8 | 372.9 | 1.28 | 32.82 | 98.46 | 440.7 | 1.66 | 36.01 | 108.02 |
| 22.5 | 73 | 15.2 | 289.5 | 1.28 | 42.28 | 126.83 | 342.1 | 1.66 | 46.38 | 139.14 |
| 22.5 | 73 | 20.4 | 215.7 | 1.28 | 56.74 | 170.22 | 254.9 | 1.66 | 62.25 | 186.75 |
| 24.5 | 65.6 | 27.5 | 160.0 | 1.15 | 68.73 | 206.20 | 189.1 | 1.49 | 75.41 | 226.22 |
| 24.5 | 65.6 | 35.6 | 123.6 | 1.15 | 88.98 | 266.93 | 146.1 | 1.49 | 97.62 | 292.85 |
| 24.5 | 65.6 | 41.6 | 105.8 | 1.15 | 103.97 | 311.92 | 125.0 | 1.49 | 114.07 | 342.21 |
| 24.5 | 65.6 | 57.7 | 76.3 | 1.15 | 144.21 | 432.64 | 90.1 | 1.49 | 158.22 | 474.65 |
| 26.5 | 59 | 73.4 | 59.9 | 1.04 | 165.00 | 494.99 | 70.8 | 1.34 | 181.02 | 543.06 |
| 26.5 | 59 | 83 | 53.0 | 1.04 | 186.58 | 559.73 | 62.7 | 1.34 | 204.69 | 614.08 |
| 26.5 | 59 | 97 | 45.4 | 1.04 | 218.05 | 654.14 | 53.6 | 1.34 | 239.22 | 717.66 |
| 26.5 | 59 | 111 | 39.6 | 1.04 | 249.52 | 748.55 | 46.8 | 1.34 | 273.75 | 821.24 |
| 26.5 | 59 | 119 | 37.0 | 1.04 | 267.50 | 802.50 | 43.7 | 1.34 | 293.48 | 880.43 |
| 26.5 | 59 | 130 | 33.8 | 1.04 | 292.23 | 876.68 | 40.0 | 1.34 | 320.61 | 961.82 |
| 29.5 | 53 | 194 | 22.7 | 0.93 | 391.74 | 1175.23 | 26.8 | 1.21 | 429.79 | 1289.36 |
| 29.5 | 53 | 226 | 19.5 | 0.93 | 456.36 | 1369.09 | 23.0 | 1.21 | 500.68 | 1502.04 |
| 29.5 | 53 | 259 | 17.0 | 0.93 | 523.00 | 1569.00 | 20.1 | 1.21 | 573.79 | 1721.37 |
| 29.5 | 53 | 277 | 15.9 | 0.93 | 559.35 | 1678.04 | 18.8 | 1.21 | 613.67 | 1841.00 |
| 29.5 | 53 | 303 | 14.5 | 0.93 | 611.85 | 1835.54 | 17.2 | 1.21 | 671.27 | 2013.80 |
| 29.5 | 53 | 316 | 13.9 | 0.93 | 638.10 | 1914.30 | 16.5 | 1.21 | 700.07 | 2100.20 |
| 29.5 | 53 | 346 | 12.7 | 0.93 | 698.68 | 2096.03 | 15.0 | 1.21 | 766.53 | 2299.59 |
| 29.5 | 53 | 382 | 11.5 | 0.93 | 771.37 | 2314.12 | 13.6 | 1.21 | 846.28 | 2500.00 |
| 32.5 | 47.8 | 452 | 9.7 | 0.84 | 823.17 | 2469.52 | 11.5 | 1.09 | 903.11 | 2500.00 |
| 32.5 | 47.8 | 528 | 8.3 | 0.84 | 961.58 | 2500.00 | 9.8 | 1.09 | 1054.97 | 2500.00 |
| 32.5 | 47.8 | 604 | 7.3 | 0.84 | 1099.99 | 2500.00 | 8.6 | 1.09 | 1206.82 | 2500.00 |
| 32.5 | 47.8 | 665 | 6.6 | 0.84 | 1211.08 | 2500.00 | 7.8 | 1.09 | 1328.70 | 2500.00 |
| 32.5 | 47.8 | 733 | 6.0 | 0.84 | 1334.92 | 2500.00 | 7.1 | 1.09 | 1464.56 | 2500.00 |
| 32.5 | 47.8 | 808 | 5.4 | 0.84 | 1471.51 | 2500.00 | 6.4 | 1.09 | 1614.42 | 2500.00 |
| 32.5 | 47.8 | 890 | 4.9 | 0.84 | 1620.85 | 2500.00 | 5.8 | 1.09 | 1778.26 | 2500.00 |
| 32.5 | 43 | 1232 | 3.6 | 0.75 | 2018.39 | 2500.00 | 4.2 | 0.98 | 2214.40 | 2500.00 |
| 32.5 | 43 | 1408 | 3.1 | 0.75 | 2306.73 | 2500.00 | 3.7 | 0.98 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1552 | 2.8 | 0.75 | 2500.00 | 2500.00 | 3.4 | 0.98 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1711 | 2.6 | 0.75 | 2500.00 | 2500.00 | 3.0 | 0.98 | 2500.00 | 2500.00 |
| 32.5 | 43 | 2077 | 2.1 | 0.75 | 2500.00 | 2500.00 | 2.5 | 0.98 | 2500.00 | 2500.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-7300RPM Input | 12V-9000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 6.5 | 898.5 | 2.15 | 22.90 | 68.71 | 1107.7 | 2.63 | 22.69 | 68.08 |
| 22.5 | 81 | 7.6 | 768.4 | 2.15 | 26.78 | 80.34 | 947.4 | 2.63 | 26.53 | 79.60 |
| 22.5 | 73 | 9.3 | 628.0 | 1.94 | 29.53 | 88.60 | 774.2 | 2.37 | 29.26 | 87.78 |
| 22.5 | 73 | 11.8 | 494.9 | 1.94 | 37.47 | 112.41 | 610.2 | 2.37 | 37.13 | 111.38 |
| 22.5 | 73 | 15.2 | 384.2 | 1.94 | 48.27 | 144.80 | 473.7 | 2.37 | 47.82 | 143.47 |
| 22.5 | 73 | 20.4 | 286.3 | 1.94 | 64.78 | 194.34 | 352.9 | 2.37 | 64.18 | 192.55 |
| 24.5 | 65.6 | 27.5 | 212.4 | 1.75 | 78.47 | 235.42 | 261.8 | 2.13 | 77.75 | 233.26 |
| 24.5 | 65.6 | 35.6 | 164.0 | 1.75 | 101.59 | 304.76 | 202.2 | 2.13 | 100.65 | 301.96 |
| 24.5 | 65.6 | 41.6 | 140.4 | 1.75 | 118.71 | 356.13 | 173.1 | 2.13 | 117.62 | 352.85 |
| 24.5 | 65.6 | 57.7 | 101.2 | 1.75 | 164.65 | 493.96 | 124.8 | 2.13 | 163.14 | 489.42 |
| 26.5 | 59 | 73.4 | 79.6 | 1.57 | 188.38 | 565.14 | 98.1 | 1.92 | 186.65 | 559.95 |
| 26.5 | 59 | 83 | 70.4 | 1.57 | 213.02 | 639.06 | 86.7 | 1.92 | 211.06 | 633.18 |
| 26.5 | 59 | 97 | 60.2 | 1.57 | 248.95 | 746.85 | 74.2 | 1.92 | 246.66 | 739.98 |
| 26.5 | 59 | 111 | 52.6 | 1.57 | 284.88 | 854.64 | 64.9 | 1.92 | 282.26 | 846.79 |
| 26.5 | 59 | 119 | 49.1 | 1.57 | 305.41 | 916.24 | 60.5 | 1.92 | 302.61 | 907.82 |
| 26.5 | 59 | 130 | 44.9 | 1.57 | 333.65 | 1000.94 | 55.4 | 1.92 | 330.58 | 991.73 |
| 29.5 | 53 | 194 | 30.1 | 1.41 | 447.27 | 1341.80 | 37.1 | 1.72 | 443.15 | 1329.46 |
| 29.5 | 53 | 226 | 25.8 | 1.41 | 521.04 | 1563.13 | 31.9 | 1.72 | 516.25 | 1548.76 |
| 29.5 | 53 | 259 | 22.5 | 1.41 | 597.12 | 1791.37 | 27.8 | 1.72 | 591.63 | 1774.90 |
| 29.5 | 53 | 277 | 21.1 | 1.41 | 638.62 | 1915.87 | 26.0 | 1.72 | 632.75 | 1898.25 |
| 29.5 | 53 | 303 | 19.3 | 1.41 | 698.57 | 2095.70 | 23.8 | 1.72 | 692.14 | 2076.43 |
| 29.5 | 53 | 316 | 18.5 | 1.41 | 728.54 | 2185.61 | 22.8 | 1.72 | 721.84 | 2165.52 |
| 29.5 | 53 | 346 | 16.9 | 1.41 | 797.70 | 2393.11 | 20.8 | 1.72 | 790.37 | 2371.10 |
| 29.5 | 53 | 382 | 15.3 | 1.41 | 880.70 | 2500.00 | 18.8 | 1.72 | 872.60 | 2500.00 |
| 32.5 | 47.8 | 452 | 12.9 | 1.27 | 939.84 | 2500.00 | 15.9 | 1.55 | 931.20 | 2500.00 |
| 32.5 | 47.8 | 528 | 11.1 | 1.27 | 1097.87 | 2500.00 | 13.6 | 1.55 | 1087.78 | 2500.00 |
| 32.5 | 47.8 | 604 | 9.7 | 1.27 | 1255.90 | 2500.00 | 11.9 | 1.55 | 1244.35 | 2500.00 |
| 32.5 | 47.8 | 665 | 8.8 | 1.27 | 1382.73 | 2500.00 | 10.8 | 1.55 | 1370.02 | 2500.00 |
| 32.5 | 47.8 | 733 | 8.0 | 1.27 | 1524.13 | 2500.00 | 9.8 | 1.55 | 1510.11 | 2500.00 |
| 32.5 | 47.8 | 808 | 7.2 | 1.27 | 1680.07 | 2500.00 | 8.9 | 1.55 | 1664.63 | 2500.00 |
| 32.5 | 47.8 | 890 | 6.6 | 1.27 | 1850.58 | 2500.00 | 8.1 | 1.55 | 1833.56 | 2500.00 |
| 32.5 | 43 | 1232 | 4.7 | 1.14 | 2304.46 | 2500.00 | 5.8 | 1.40 | 2283.27 | 2500.00 |
| 32.5 | 43 | 1408 | 4.1 | 1.14 | 2500.00 | 2500.00 | 5.1 | 1.40 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1552 | 3.8 | 1.14 | 2500.00 | 2500.00 | 4.6 | 1.40 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1711 | 3.4 | 1.14 | 2500.00 | 2500.00 | 4.2 | 1.40 | 2500.00 | 2500.00 |
| 32.5 | 43 | 2077 | 2.8 | 1.14 | 2500.00 | 2500.00 | 3.5 | 1.40 | 2500.00 | 2500.00 |
Please let us know your requirements and we will provide you with transmission solutions.
