Electraflow 12V 85rpm Small Gear Motor High Torque RS395 CE ROHS
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Electraflow 37mm Rs395 12v 85rpm Big Torque Small Brushed Dc Gear Motor Ce Rohs

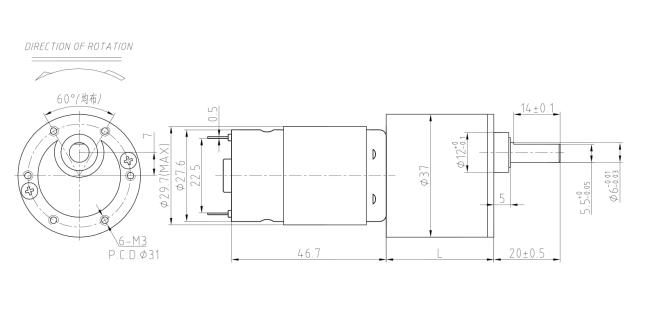

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY2847 | 12 | 4500 | 100 | 3600 | 0.30 | 5.89 | 2.22 | 61.68 | 17.67 | 1.70 |
| ZY2847 | 12 | 7500 | 160 | 6000 | 0.60 | 7.17 | 4.50 | 62.57 | 21.51 | 4.80 |
| ZY2847 | 24 | 5000 | 50 | 4000 | 0.20 | 7.25 | 3.04 | 63.26 | 21.75 | 1.14 |
| ZY2847 | 24 | 7500 | 75 | 6000 | 0.28 | 6.64 | 4.17 | 62.08 | 19.92 | 1.70 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-4500RPM Input | 12V-7500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 6.5 | 553.8 | 1.80 | 31.01 | 93.03 | 923.1 | 3.65 | 37.75 | 113.25 |
| 22.5 | 81 | 7.6 | 473.7 | 1.80 | 36.26 | 108.78 | 789.5 | 3.65 | 44.14 | 132.42 |
| 22.5 | 73 | 9.3 | 387.1 | 1.62 | 39.99 | 119.96 | 645.2 | 3.29 | 48.68 | 146.03 |
| 22.5 | 73 | 11.8 | 305.1 | 1.62 | 50.74 | 152.21 | 508.5 | 3.29 | 61.76 | 185.29 |
| 22.5 | 73 | 15.2 | 236.8 | 1.62 | 65.36 | 196.07 | 394.7 | 3.29 | 79.56 | 238.67 |
| 22.5 | 73 | 20.4 | 176.5 | 1.62 | 87.71 | 263.14 | 294.1 | 3.29 | 106.78 | 320.33 |
| 24.5 | 65.6 | 27.5 | 130.9 | 1.46 | 106.26 | 318.77 | 218.2 | 2.96 | 129.35 | 388.04 |
| 24.5 | 65.6 | 35.6 | 101.1 | 1.46 | 137.55 | 412.66 | 168.5 | 2.96 | 167.45 | 502.34 |
| 24.5 | 65.6 | 41.6 | 86.5 | 1.46 | 160.74 | 482.21 | 144.2 | 2.96 | 195.67 | 587.00 |
| 24.5 | 65.6 | 57.7 | 62.4 | 1.46 | 222.94 | 668.83 | 104.0 | 2.96 | 271.39 | 814.18 |
| 26.5 | 59 | 73.4 | 49.0 | 1.31 | 255.07 | 765.22 | 81.7 | 2.66 | 310.50 | 931.51 |
| 26.5 | 59 | 83 | 43.4 | 1.31 | 288.43 | 865.30 | 72.3 | 2.66 | 351.11 | 1053.34 |
| 26.5 | 59 | 97 | 37.1 | 1.31 | 337.08 | 1011.25 | 61.9 | 2.66 | 410.34 | 1231.02 |
| 26.5 | 59 | 111 | 32.4 | 1.31 | 385.74 | 1157.21 | 54.1 | 2.66 | 469.56 | 1408.69 |
| 26.5 | 59 | 119 | 30.3 | 1.31 | 413.54 | 1240.61 | 50.4 | 2.66 | 503.41 | 1510.22 |
| 26.5 | 59 | 130 | 27.7 | 1.31 | 451.76 | 1355.29 | 46.2 | 2.66 | 549.94 | 1649.82 |
| 29.5 | 53 | 194 | 18.6 | 1.18 | 605.61 | 1816.83 | 30.9 | 2.39 | 737.22 | 2211.66 |
| 29.5 | 53 | 226 | 15.9 | 1.18 | 705.50 | 2116.51 | 26.5 | 2.39 | 858.82 | 2500.00 |
| 29.5 | 53 | 259 | 13.9 | 1.18 | 808.52 | 2425.56 | 23.2 | 2.39 | 984.23 | 2500.00 |
| 29.5 | 53 | 277 | 13.0 | 1.18 | 864.71 | 2500.00 | 21.7 | 2.39 | 1052.63 | 2500.00 |
| 29.5 | 53 | 303 | 11.9 | 1.18 | 945.88 | 2500.00 | 19.8 | 2.39 | 1151.43 | 2500.00 |
| 29.5 | 53 | 316 | 11.4 | 1.18 | 986.46 | 2500.00 | 19.0 | 2.39 | 1200.83 | 2500.00 |
| 29.5 | 53 | 346 | 10.4 | 1.18 | 1080.11 | 2500.00 | 17.3 | 2.39 | 1314.83 | 2500.00 |
| 29.5 | 53 | 382 | 9.4 | 1.18 | 1192.49 | 2500.00 | 15.7 | 2.39 | 1451.64 | 2500.00 |
| 32.5 | 47.8 | 452 | 8.0 | 1.06 | 1272.57 | 2500.00 | 13.3 | 2.15 | 1549.12 | 2500.00 |
| 32.5 | 47.8 | 528 | 6.8 | 1.06 | 1486.54 | 2500.00 | 11.4 | 2.15 | 1809.59 | 2500.00 |
| 32.5 | 47.8 | 604 | 6.0 | 1.06 | 1700.51 | 2500.00 | 9.9 | 2.15 | 2070.07 | 2500.00 |
| 32.5 | 47.8 | 665 | 5.4 | 1.06 | 1872.25 | 2500.00 | 9.0 | 2.15 | 2279.13 | 2500.00 |
| 32.5 | 47.8 | 733 | 4.9 | 1.06 | 2063.70 | 2500.00 | 8.2 | 2.15 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 808 | 4.5 | 1.06 | 2274.86 | 2500.00 | 7.4 | 2.15 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 890 | 4.0 | 1.06 | 2500.00 | 2500.00 | 6.7 | 2.15 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1232 | 2.9 | 0.95 | 2500.00 | 2500.00 | 4.9 | 1.94 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1408 | 2.6 | 0.95 | 2500.00 | 2500.00 | 4.3 | 1.94 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1552 | 2.3 | 0.95 | 2500.00 | 2500.00 | 3.9 | 1.94 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1711 | 2.1 | 0.95 | 2500.00 | 2500.00 | 3.5 | 1.94 | 2500.00 | 2500.00 |
| 32.5 | 43 | 2077 | 1.7 | 0.95 | 2500.00 | 2500.00 | 2.9 | 1.94 | 2500.00 | 2500.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 24V-5000RPM Input | 24V-7500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 6.5 | 615.4 | 2.46 | 38.17 | 114.51 | 923.1 | 3.38 | 34.96 | 104.88 |
| 22.5 | 81 | 7.6 | 526.3 | 2.46 | 44.63 | 133.89 | 789.5 | 3.38 | 40.88 | 122.63 |
| 22.5 | 73 | 9.3 | 430.1 | 2.22 | 49.22 | 147.66 | 645.2 | 3.05 | 45.08 | 135.24 |
| 22.5 | 73 | 11.8 | 339.0 | 2.22 | 62.45 | 187.35 | 508.5 | 3.05 | 57.20 | 171.59 |
| 22.5 | 73 | 15.2 | 263.2 | 2.22 | 80.45 | 241.34 | 394.7 | 3.05 | 73.68 | 221.03 |
| 22.5 | 73 | 20.4 | 196.1 | 2.22 | 107.97 | 323.90 | 294.1 | 3.05 | 98.88 | 296.65 |
| 24.5 | 65.6 | 27.5 | 145.5 | 1.99 | 130.79 | 392.37 | 218.2 | 2.74 | 119.79 | 359.36 |
| 24.5 | 65.6 | 35.6 | 112.4 | 1.99 | 169.31 | 507.94 | 168.5 | 2.74 | 155.07 | 465.20 |
| 24.5 | 65.6 | 41.6 | 96.2 | 1.99 | 197.85 | 593.55 | 144.2 | 2.74 | 181.20 | 543.61 |
| 24.5 | 65.6 | 57.7 | 69.3 | 1.99 | 274.42 | 823.26 | 104.0 | 2.74 | 251.33 | 754.00 |
| 26.5 | 59 | 73.4 | 54.5 | 1.79 | 313.97 | 941.91 | 81.7 | 2.46 | 287.55 | 862.66 |
| 26.5 | 59 | 83 | 48.2 | 1.79 | 355.03 | 1065.10 | 72.3 | 2.46 | 325.16 | 975.48 |
| 26.5 | 59 | 97 | 41.2 | 1.79 | 414.92 | 1244.75 | 61.9 | 2.46 | 380.01 | 1140.02 |
| 26.5 | 59 | 111 | 36.0 | 1.79 | 474.80 | 1424.41 | 54.1 | 2.46 | 434.85 | 1304.56 |
| 26.5 | 59 | 119 | 33.6 | 1.79 | 509.02 | 1527.07 | 50.4 | 2.46 | 466.19 | 1398.58 |
| 26.5 | 59 | 130 | 30.8 | 1.79 | 556.08 | 1668.23 | 46.2 | 2.46 | 509.29 | 1527.86 |
| 29.5 | 53 | 194 | 20.6 | 1.61 | 745.45 | 2236.34 | 30.9 | 2.21 | 682.72 | 2048.17 |
| 29.5 | 53 | 226 | 17.7 | 1.61 | 868.41 | 2500.00 | 26.5 | 2.21 | 795.34 | 2386.02 |
| 29.5 | 53 | 259 | 15.4 | 1.61 | 995.21 | 2500.00 | 23.2 | 2.21 | 911.47 | 2500.00 |
| 29.5 | 53 | 277 | 14.4 | 1.61 | 1064.37 | 2500.00 | 21.7 | 2.21 | 974.82 | 2500.00 |
| 29.5 | 53 | 303 | 13.2 | 1.61 | 1164.28 | 2500.00 | 19.8 | 2.21 | 1066.32 | 2500.00 |
| 29.5 | 53 | 316 | 12.7 | 1.61 | 1214.23 | 2500.00 | 19.0 | 2.21 | 1112.07 | 2500.00 |
| 29.5 | 53 | 346 | 11.6 | 1.61 | 1329.51 | 2500.00 | 17.3 | 2.21 | 1217.64 | 2500.00 |
| 29.5 | 53 | 382 | 10.5 | 1.61 | 1467.84 | 2500.00 | 15.7 | 2.21 | 1344.33 | 2500.00 |
| 32.5 | 47.8 | 452 | 8.8 | 1.45 | 1566.41 | 2500.00 | 13.3 | 1.99 | 1434.61 | 2500.00 |
| 32.5 | 47.8 | 528 | 7.6 | 1.45 | 1829.78 | 2500.00 | 11.4 | 1.99 | 1675.83 | 2500.00 |
| 32.5 | 47.8 | 604 | 6.6 | 1.45 | 2093.16 | 2500.00 | 9.9 | 1.99 | 1917.05 | 2500.00 |
| 32.5 | 47.8 | 665 | 6.0 | 1.45 | 2304.56 | 2500.00 | 9.0 | 1.99 | 2110.66 | 2500.00 |
| 32.5 | 47.8 | 733 | 5.5 | 1.45 | 2500.00 | 2500.00 | 8.2 | 1.99 | 2326.48 | 2500.00 |
| 32.5 | 47.8 | 808 | 5.0 | 1.45 | 2500.00 | 2500.00 | 7.4 | 1.99 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 890 | 4.5 | 1.45 | 2500.00 | 2500.00 | 6.7 | 1.99 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1232 | 3.2 | 1.31 | 2500.00 | 2500.00 | 4.9 | 1.79 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1408 | 2.8 | 1.31 | 2500.00 | 2500.00 | 4.3 | 1.79 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1552 | 2.6 | 1.31 | 2500.00 | 2500.00 | 3.9 | 1.79 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1711 | 2.3 | 1.31 | 2500.00 | 2500.00 | 3.5 | 1.79 | 2500.00 | 2500.00 |
| 32.5 | 43 | 2077 | 1.9 | 1.31 | 2500.00 | 2500.00 | 2.9 | 1.79 | 2500.00 | 2500.00 |
Please let us know your requirements and we will provide you with transmission solutions.
