16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Speed Adjustable Tubular Motor 37mm 16watts 12v 24v 60 Rpm Brushed Dc Gear Motor For Agitator

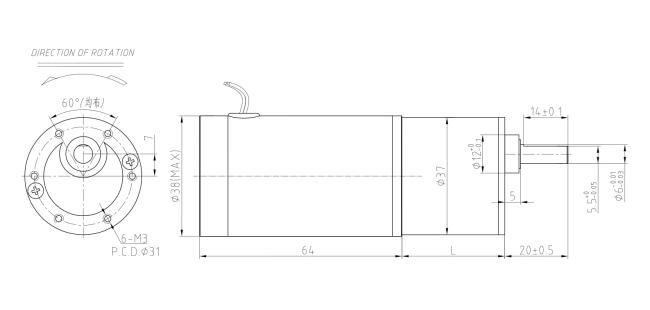

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY3864 | 12 | 4500 | 250 | 3600 | 0.95 | 19.50 | 7.35 | 64.82 | 58.50 | 5.70 |
| ZY3864 | 12 | 5000 | 300 | 4000 | 1.10 | 19.70 | 8.25 | 62.51 | 59.10 | 6.50 |
| ZY3864 | 24 | 5000 | 160 | 4000 | 0.55 | 19.50 | 8.17 | 61.88 | 58.50 | 3.10 |
| ZY3864 | 24 | 8000 | 270 | 6400 | 1.11 | 25.00 | 16.75 | 63.06 | 75.00 | 7.02 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-4500RPM Input | 12V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 6.5 | 553.8 | 5.95 | 102.67 | 308.00 | 615.4 | 6.68 | 103.72 | 311.16 |
| 22.5 | 73 | 9.3 | 387.1 | 5.37 | 132.39 | 397.16 | 430.1 | 6.02 | 133.74 | 401.23 |
| 22.5 | 73 | 11.8 | 305.1 | 5.37 | 167.97 | 503.92 | 339.0 | 6.02 | 169.70 | 509.09 |
| 22.5 | 73 | 14.2 | 253.5 | 5.37 | 202.14 | 606.41 | 281.7 | 6.02 | 204.21 | 612.63 |
| 22.5 | 73 | 17.4 | 206.9 | 5.37 | 247.69 | 743.07 | 229.9 | 6.02 | 250.23 | 750.69 |
| 24.5 | 65.6 | 21.8 | 165.1 | 4.82 | 278.87 | 836.60 | 183.5 | 5.41 | 281.73 | 845.18 |
| 24.5 | 65.6 | 27.5 | 130.9 | 4.82 | 351.78 | 1055.34 | 145.5 | 5.41 | 355.39 | 1066.16 |
| 24.5 | 65.6 | 36.6 | 98.4 | 4.82 | 468.19 | 1404.56 | 109.3 | 5.41 | 472.99 | 1418.97 |
| 24.5 | 65.6 | 40.4 | 89.1 | 4.82 | 516.80 | 1550.39 | 99.0 | 5.41 | 522.10 | 1566.29 |
| 26.5 | 59 | 58.1 | 62.0 | 4.34 | 668.44 | 2005.32 | 68.8 | 4.87 | 675.30 | 2025.89 |
| 26.5 | 59 | 73.4 | 49.0 | 4.34 | 844.47 | 2500.00 | 54.5 | 4.87 | 853.13 | 2500.00 |
| 26.5 | 59 | 83 | 43.4 | 4.34 | 954.92 | 2500.00 | 48.2 | 4.87 | 964.71 | 2500.00 |
| 26.5 | 59 | 89 | 40.4 | 4.34 | 1023.95 | 2500.00 | 44.9 | 4.87 | 1034.45 | 2500.00 |
| 26.5 | 59 | 95 | 37.9 | 4.34 | 1092.98 | 2500.00 | 42.1 | 4.87 | 1104.19 | 2500.00 |
| 26.5 | 59 | 103 | 35.0 | 4.34 | 1185.02 | 2500.00 | 38.8 | 4.87 | 1197.17 | 2500.00 |
| 29.5 | 53 | 119 | 30.3 | 3.90 | 1229.87 | 2500.00 | 33.6 | 4.37 | 1242.48 | 2500.00 |
| 29.5 | 53 | 136 | 26.5 | 3.90 | 1405.56 | 2500.00 | 29.4 | 4.37 | 1419.98 | 2500.00 |
| 29.5 | 53 | 171 | 21.1 | 3.90 | 1767.29 | 2500.00 | 23.4 | 4.37 | 1785.41 | 2500.00 |
| 29.5 | 53 | 194 | 18.6 | 3.90 | 2004.99 | 2500.00 | 20.6 | 4.37 | 2025.55 | 2500.00 |
| 29.5 | 53 | 207 | 17.4 | 3.90 | 2139.35 | 2500.00 | 19.3 | 4.37 | 2161.29 | 2500.00 |
| 29.5 | 53 | 221 | 16.3 | 3.90 | 2284.04 | 2500.00 | 18.1 | 4.37 | 2307.46 | 2500.00 |
| 29.5 | 53 | 242 | 14.9 | 3.90 | 2500.00 | 2500.00 | 16.5 | 4.37 | 2500.00 | 2500.00 |
| 29.5 | 53 | 277 | 13.0 | 3.90 | 2500.00 | 2500.00 | 14.4 | 4.37 | 2500.00 | 2500.00 |
| 29.5 | 53 | 305 | 11.8 | 3.90 | 2500.00 | 2500.00 | 13.1 | 4.37 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 350 | 10.3 | 3.51 | 2500.00 | 2500.00 | 11.4 | 3.94 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 422 | 8.5 | 3.51 | 2500.00 | 2500.00 | 9.5 | 3.94 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 465 | 7.7 | 3.51 | 2500.00 | 2500.00 | 8.6 | 3.94 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 513 | 7.0 | 3.51 | 2500.00 | 2500.00 | 7.8 | 3.94 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 532 | 6.8 | 3.51 | 2500.00 | 2500.00 | 7.5 | 3.94 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 586 | 6.1 | 3.51 | 2500.00 | 2500.00 | 6.8 | 3.94 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 712 | 5.1 | 3.51 | 2500.00 | 2500.00 | 5.6 | 3.94 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 784 | 4.6 | 3.51 | 2500.00 | 2500.00 | 5.1 | 3.94 | 2500.00 | 2500.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 24V-5000RPM Input | 24V-8000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 6.5 | 615.4 | 6.62 | 102.67 | 308.00 | 984.6 | 13.57 | 131.63 | 394.88 |
| 22.5 | 73 | 9.3 | 430.1 | 5.96 | 132.39 | 397.16 | 688.2 | 12.23 | 169.73 | 509.18 |
| 22.5 | 73 | 11.8 | 339.0 | 5.96 | 167.97 | 503.92 | 542.4 | 12.23 | 215.35 | 646.05 |
| 22.5 | 73 | 14.2 | 281.7 | 5.96 | 202.14 | 606.41 | 450.7 | 12.23 | 259.15 | 777.45 |
| 22.5 | 73 | 17.4 | 229.9 | 5.96 | 247.69 | 743.07 | 367.8 | 12.23 | 317.55 | 952.65 |
| 24.5 | 65.6 | 21.8 | 183.5 | 5.36 | 278.87 | 836.60 | 293.6 | 10.99 | 357.52 | 1072.56 |
| 24.5 | 65.6 | 27.5 | 145.5 | 5.36 | 351.78 | 1055.34 | 232.7 | 10.99 | 451.00 | 1353.00 |
| 24.5 | 65.6 | 36.6 | 109.3 | 5.36 | 468.19 | 1404.56 | 174.9 | 10.99 | 600.24 | 1800.72 |
| 24.5 | 65.6 | 40.4 | 99.0 | 5.36 | 516.80 | 1550.39 | 158.4 | 10.99 | 662.56 | 1987.68 |
| 26.5 | 59 | 58.1 | 68.8 | 4.82 | 668.44 | 2005.32 | 110.2 | 9.88 | 856.98 | 2500.00 |
| 26.5 | 59 | 73.4 | 54.5 | 4.82 | 844.47 | 2500.00 | 87.2 | 9.88 | 1082.65 | 2500.00 |
| 26.5 | 59 | 83 | 48.2 | 4.82 | 954.92 | 2500.00 | 77.1 | 9.88 | 1224.25 | 2500.00 |
| 26.5 | 59 | 89 | 44.9 | 4.82 | 1023.95 | 2500.00 | 71.9 | 9.88 | 1312.75 | 2500.00 |
| 26.5 | 59 | 95 | 42.1 | 4.82 | 1092.98 | 2500.00 | 67.4 | 9.88 | 1401.25 | 2500.00 |
| 26.5 | 59 | 103 | 38.8 | 4.82 | 1185.02 | 2500.00 | 62.1 | 9.88 | 1519.25 | 2500.00 |
| 29.5 | 53 | 119 | 33.6 | 4.33 | 1229.87 | 2500.00 | 53.8 | 8.88 | 1576.75 | 2500.00 |
| 29.5 | 53 | 136 | 29.4 | 4.33 | 1405.56 | 2500.00 | 47.1 | 8.88 | 1802.00 | 2500.00 |
| 29.5 | 53 | 171 | 23.4 | 4.33 | 1767.29 | 2500.00 | 37.4 | 8.88 | 2265.75 | 2500.00 |
| 29.5 | 53 | 194 | 20.6 | 4.33 | 2004.99 | 2500.00 | 33.0 | 8.88 | 2500.00 | 2500.00 |
| 29.5 | 53 | 207 | 19.3 | 4.33 | 2139.35 | 2500.00 | 30.9 | 8.88 | 2500.00 | 2500.00 |
| 29.5 | 53 | 221 | 18.1 | 4.33 | 2284.04 | 2500.00 | 29.0 | 8.88 | 2500.00 | 2500.00 |
| 29.5 | 53 | 242 | 16.5 | 4.33 | 2500.00 | 2500.00 | 26.4 | 8.88 | 2500.00 | 2500.00 |
| 29.5 | 53 | 277 | 14.4 | 4.33 | 2500.00 | 2500.00 | 23.1 | 8.88 | 2500.00 | 2500.00 |
| 29.5 | 53 | 305 | 13.1 | 4.33 | 2500.00 | 2500.00 | 21.0 | 8.88 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 350 | 11.4 | 3.90 | 2500.00 | 2500.00 | 18.3 | 8.01 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 422 | 9.5 | 3.90 | 2500.00 | 2500.00 | 15.2 | 8.01 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 465 | 8.6 | 3.90 | 2500.00 | 2500.00 | 13.8 | 8.01 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 513 | 7.8 | 3.90 | 2500.00 | 2500.00 | 12.5 | 8.01 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 532 | 7.5 | 3.90 | 2500.00 | 2500.00 | 12.0 | 8.01 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 586 | 6.8 | 3.90 | 2500.00 | 2500.00 | 10.9 | 8.01 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 712 | 5.6 | 3.90 | 2500.00 | 2500.00 | 9.0 | 8.01 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 784 | 5.1 | 3.90 | 2500.00 | 2500.00 | 8.2 | 8.01 | 2500.00 | 2500.00 |
Please let us know your requirements and we will provide you with transmission solutions.
