Powder Metallurgy Gears 528 Engine DC Spur Gear Motor 6V 37mm For Valve

Name: Powder Metallurgy Gears 528 Engine DC Spur Gear Motor 6V 37mm For Valve
Brand: Wenzhou Tyhe Motor Co., Ltd.

Price Negotiable

Price: Negotiation

MOQ: 500pcs

Delivery Time: 15 working days after payment

Brand: TYHE

Product Description

Products Description

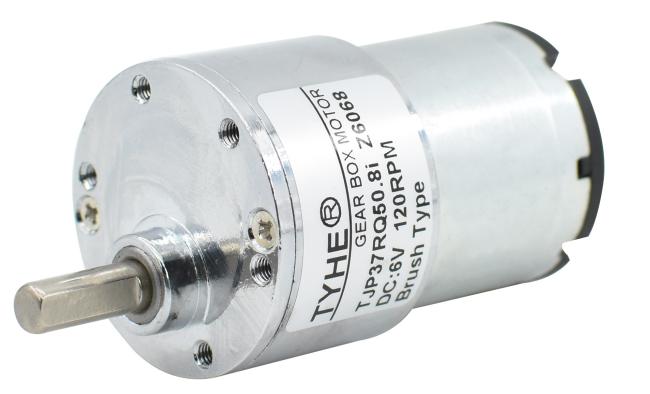

Powder Gears Small Size 37mm 528 Engine 6v Dc Gear Reduction Motor For Valve

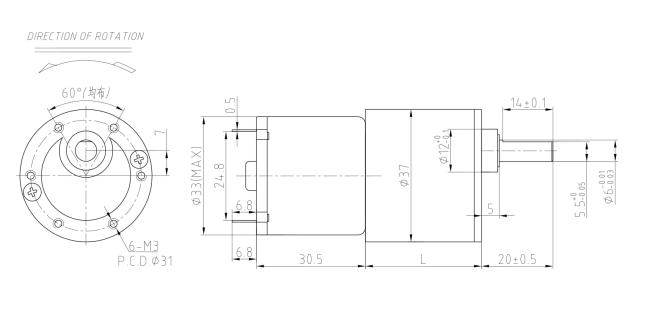

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3330	6	6000	100	4800	0.30	2.23	1.12	62.27	6.69	1.70
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			6V-6000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
22.5	81	6.5	738.5	0.91	11.74	35.22
22.5	81	7.6	631.6	0.91	13.73	41.18
22.5	73	9.3	516.1	0.82	15.14	45.42
22.5	73	11.8	406.8	0.82	19.21	57.63
22.5	73	15.2	315.8	0.82	24.74	74.23
22.5	73	20.4	235.3	0.82	33.21	99.63
24.5	65.6	27.5	174.5	0.74	40.23	120.69
24.5	65.6	35.6	134.8	0.74	52.08	156.24
24.5	65.6	41.6	115.4	0.74	60.86	182.57
24.5	65.6	57.7	83.2	0.74	84.41	253.22
26.5	59	73.4	65.4	0.66	96.57	289.72
26.5	59	83	57.8	0.66	109.20	327.61
26.5	59	97	49.5	0.66	127.62	382.87
26.5	59	111	43.2	0.66	146.04	438.13
26.5	59	119	40.3	0.66	156.57	469.70
26.5	59	130	36.9	0.66	171.04	513.12
29.5	53	194	24.7	0.59	229.29	687.87
29.5	53	226	21.2	0.59	267.11	801.33
29.5	53	259	18.5	0.59	306.11	918.34
29.5	53	277	17.3	0.59	327.39	982.16
29.5	53	303	15.8	0.59	358.12	1074.35
29.5	53	316	15.2	0.59	373.48	1120.44
29.5	53	346	13.9	0.59	408.94	1226.81
29.5	53	382	12.6	0.59	451.49	1354.46
32.5	47.8	452	10.6	0.54	481.80	1445.41
32.5	47.8	528	9.1	0.54	562.82	1688.45
32.5	47.8	604	7.9	0.54	643.83	1931.48
32.5	47.8	665	7.2	0.54	708.85	2126.55
32.5	47.8	733	6.5	0.54	781.33	2344.00
32.5	47.8	808	5.9	0.54	861.28	2500.00
32.5	47.8	890	5.4	0.54	948.69	2500.00
32.5	43	1232	3.9	0.48	1181.36	2500.00
32.5	43	1408	3.4	0.48	1350.13	2500.00
32.5	43	1552	3.1	0.48	1488.21	2500.00
32.5	43	1711	2.8	0.48	1640.68	2500.00
32.5	43	2077	2.3	0.48	1991.64	2500.00
