RS555 DC 12 Volt Electric Motors With Gear Reduction 10Rpm 20Rpm
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

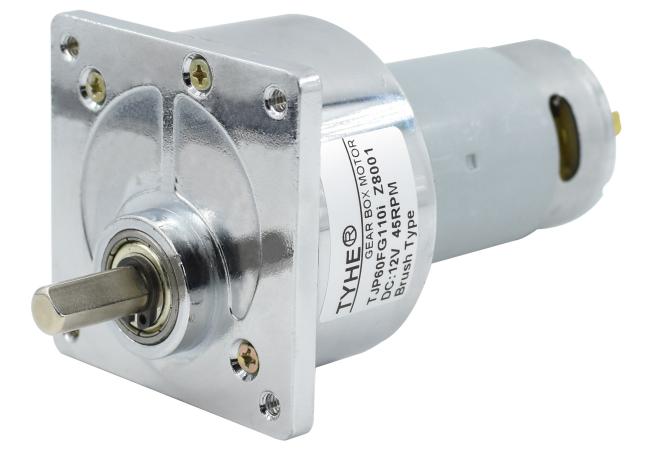

High Precision 60mm Rs555 10 Rpm 20 Rpm Dc 12v Gear Reduction Motor Ce Rohs
2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS555 | 12 | 4500 | 150 | 3600 | 0.69 | 13.50 | 5.09 | 61.31 | 40.50 | 5.60 |
| RS555 | 12 | 5000 | 240 | 4000 | 0.93 | 16.80 | 7.04 | 63.28 | 50.40 | 6.80 |
| RS555 | 12 | 7600 | 360 | 6080 | 1.65 | 20.10 | 12.80 | 64.69 | 60.30 | 13.30 |
| RS555 | 12 | 9000 | 390 | 7200 | 1.79 | 18.50 | 13.95 | 64.81 | 55.50 | 14.50 |
| DC Motor With Gearbox Technical Data (1.25M) | ||||||||||
| Gearbox parameters | 12V-4500RPM Input | 12V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.5 | 81 | 6.5 | 553.8 | 4.12 | 71.08 | 213.23 | 615.4 | 5.70 | 88.45 | 265.36 |
| 28.5 | 81 | 7.6 | 473.7 | 4.12 | 83.11 | 249.32 | 526.3 | 5.70 | 103.42 | 310.26 |
| 28.5 | 81 | 8.3 | 433.7 | 4.12 | 90.76 | 272.28 | 481.9 | 5.70 | 112.95 | 338.84 |
| 28.5 | 81 | 9.9 | 363.6 | 4.12 | 108.26 | 324.77 | 404.0 | 5.70 | 134.72 | 404.16 |
| 28.5 | 81 | 10.8 | 333.3 | 4.12 | 118.10 | 354.29 | 370.4 | 5.70 | 146.97 | 440.90 |
| 28.5 | 81 | 12.8 | 281.3 | 4.12 | 139.97 | 419.90 | 312.5 | 5.70 | 174.18 | 522.55 |
| 28.5 | 81 | 14.1 | 255.3 | 4.12 | 154.18 | 462.55 | 283.7 | 5.70 | 191.87 | 575.62 |
| 33.5 | 73 | 20.7 | 173.9 | 3.71 | 204.00 | 612.00 | 193.2 | 5.14 | 253.86 | 761.59 |
| 33.5 | 73 | 24.3 | 148.1 | 3.71 | 239.48 | 718.43 | 164.6 | 5.14 | 298.02 | 894.05 |
| 33.5 | 73 | 26.4 | 136.4 | 3.71 | 260.17 | 780.52 | 151.5 | 5.14 | 323.77 | 971.31 |
| 33.5 | 73 | 27 | 133.3 | 3.71 | 266.09 | 798.26 | 148.1 | 5.14 | 331.13 | 993.38 |
| 33.5 | 73 | 31.5 | 114.3 | 3.71 | 310.43 | 931.30 | 127.0 | 5.14 | 386.32 | 1158.95 |
| 33.5 | 73 | 34.3 | 105.0 | 3.71 | 338.03 | 1014.08 | 116.6 | 5.14 | 420.66 | 1261.97 |
| 33.5 | 73 | 34.7 | 103.7 | 3.71 | 341.97 | 1025.91 | 115.3 | 5.14 | 425.56 | 1276.68 |
| 33.5 | 73 | 41 | 87.8 | 3.71 | 404.06 | 1212.17 | 97.6 | 5.14 | 502.82 | 1508.47 |
| 33.5 | 73 | 45 | 80.0 | 3.71 | 443.48 | 1330.43 | 88.9 | 5.14 | 551.88 | 1655.64 |
| 36 | 65.6 | 66.3 | 54.3 | 3.34 | 587.15 | 1761.46 | 60.3 | 4.62 | 730.68 | 2192.04 |
| 36 | 65.6 | 77.7 | 46.3 | 3.34 | 688.11 | 2064.33 | 51.5 | 4.62 | 856.32 | 2568.95 |
| 36 | 65.6 | 86 | 41.9 | 3.34 | 761.62 | 2284.85 | 46.5 | 4.62 | 947.79 | 2843.37 |
| 36 | 65.6 | 101 | 35.6 | 3.34 | 894.46 | 2683.37 | 39.6 | 4.62 | 1113.10 | 3339.30 |
| 36 | 65.6 | 111 | 32.4 | 3.34 | 983.02 | 2949.05 | 36.0 | 4.62 | 1223.31 | 3669.93 |
| 36 | 65.6 | 131 | 27.5 | 3.34 | 1160.14 | 3480.41 | 30.5 | 4.62 | 1443.72 | 4331.17 |
| 36 | 65.6 | 144 | 25.0 | 3.34 | 1275.26 | 3825.79 | 27.8 | 4.62 | 1587.00 | 4760.99 |
| 40 | 59 | 212 | 17.0 | 3.00 | 1688.58 | 5065.74 | 18.9 | 4.15 | 2101.34 | 6304.03 |
| 40 | 59 | 249 | 14.5 | 3.00 | 1983.29 | 5949.86 | 16.1 | 4.15 | 2468.09 | 7404.26 |
| 40 | 59 | 270 | 13.3 | 3.00 | 2150.55 | 6451.65 | 14.8 | 4.15 | 2676.24 | 8028.72 |
| 40 | 59 | 276 | 13.0 | 3.00 | 2198.34 | 6595.02 | 14.5 | 4.15 | 2735.71 | 8207.14 |
| 40 | 59 | 323 | 11.1 | 3.00 | 2572.70 | 7718.09 | 12.4 | 4.15 | 3201.58 | 9604.73 |
| 40 | 59 | 351 | 10.3 | 3.00 | 2795.72 | 8387.15 | 11.4 | 4.15 | 3479.11 | 10437.34 |
| 40 | 59 | 355 | 10.1 | 3.00 | 2827.58 | 8482.73 | 11.3 | 4.15 | 3518.76 | 10556.28 |
| 40 | 59 | 420 | 8.6 | 3.00 | 3345.30 | 10035.90 | 9.5 | 4.15 | 4163.04 | 12489.12 |
| 40 | 59 | 462 | 7.8 | 3.00 | 3679.83 | 11039.49 | 8.7 | 4.15 | 4579.34 | 13738.03 |
| DC Motor With Gearbox Technical Data (1.25M) | ||||||||||
| Gearbox parameters | 12V-7600RPM Input | 12V-9000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.5 | 81 | 6.5 | 935.4 | 10.37 | 105.83 | 317.48 | 1107.7 | 11.30 | 97.40 | 292.21 |
| 28.5 | 81 | 7.6 | 800.0 | 10.37 | 123.74 | 371.21 | 947.4 | 11.30 | 113.89 | 341.66 |
| 28.5 | 81 | 8.3 | 732.5 | 10.37 | 135.13 | 405.40 | 867.5 | 11.30 | 124.38 | 373.13 |
| 28.5 | 81 | 9.9 | 614.1 | 10.37 | 161.18 | 483.55 | 727.3 | 11.30 | 148.35 | 445.05 |
| 28.5 | 81 | 10.8 | 563.0 | 10.37 | 175.83 | 527.50 | 666.7 | 11.30 | 161.84 | 485.51 |
| 28.5 | 81 | 12.8 | 475.0 | 10.37 | 208.40 | 625.19 | 562.5 | 11.30 | 191.81 | 575.42 |
| 28.5 | 81 | 14.1 | 431.2 | 10.37 | 229.56 | 688.69 | 510.6 | 11.30 | 211.29 | 633.87 |
| 33.5 | 73 | 20.7 | 293.7 | 9.34 | 303.73 | 911.19 | 347.8 | 10.18 | 279.55 | 838.66 |
| 33.5 | 73 | 24.3 | 250.2 | 9.34 | 356.55 | 1069.66 | 296.3 | 10.18 | 328.17 | 984.51 |
| 33.5 | 73 | 26.4 | 230.3 | 9.34 | 387.37 | 1162.10 | 272.7 | 10.18 | 356.53 | 1069.60 |
| 33.5 | 73 | 27 | 225.2 | 9.34 | 396.17 | 1188.51 | 266.7 | 10.18 | 364.64 | 1093.91 |
| 33.5 | 73 | 31.5 | 193.0 | 9.34 | 462.20 | 1386.60 | 228.6 | 10.18 | 425.41 | 1276.22 |
| 33.5 | 73 | 34.3 | 177.3 | 9.34 | 503.28 | 1509.85 | 209.9 | 10.18 | 463.22 | 1389.66 |
| 33.5 | 73 | 34.7 | 175.2 | 9.34 | 509.15 | 1527.46 | 207.5 | 10.18 | 468.62 | 1405.87 |
| 33.5 | 73 | 41 | 148.3 | 9.34 | 601.59 | 1804.78 | 175.6 | 10.18 | 553.71 | 1661.12 |
| 33.5 | 73 | 45 | 135.1 | 9.34 | 660.29 | 1980.86 | 160.0 | 10.18 | 607.73 | 1823.18 |
| 36 | 65.6 | 66.3 | 91.7 | 8.39 | 874.21 | 2622.62 | 108.6 | 9.15 | 804.62 | 2413.85 |
| 36 | 65.6 | 77.7 | 78.2 | 8.39 | 1024.52 | 3073.56 | 92.7 | 9.15 | 942.97 | 2828.90 |
| 36 | 65.6 | 86 | 70.7 | 8.39 | 1133.96 | 3401.88 | 83.7 | 9.15 | 1043.70 | 3131.09 |
| 36 | 65.6 | 101 | 60.2 | 8.39 | 1331.75 | 3995.24 | 71.3 | 9.15 | 1225.74 | 3677.21 |
| 36 | 65.6 | 111 | 54.8 | 8.39 | 1463.60 | 4390.80 | 64.9 | 9.15 | 1347.10 | 4041.29 |
| 36 | 65.6 | 131 | 46.4 | 8.39 | 1727.31 | 5181.94 | 55.0 | 9.15 | 1589.82 | 4769.45 |
| 36 | 65.6 | 144 | 42.2 | 8.39 | 1898.73 | 5696.18 | 50.0 | 9.15 | 1747.58 | 5242.75 |
| 40 | 59 | 212 | 28.7 | 7.55 | 2514.11 | 7542.32 | 34.0 | 8.23 | 2313.98 | 6941.94 |
| 40 | 59 | 249 | 24.4 | 7.55 | 2952.89 | 8858.67 | 28.9 | 8.23 | 2717.84 | 8153.51 |
| 40 | 59 | 270 | 22.5 | 7.55 | 3201.93 | 9605.79 | 26.7 | 8.23 | 2947.05 | 8841.15 |
| 40 | 59 | 276 | 22.0 | 7.55 | 3273.08 | 9819.25 | 26.1 | 8.23 | 3012.54 | 9037.62 |
| 40 | 59 | 323 | 18.8 | 7.55 | 3830.46 | 11491.37 | 22.3 | 8.23 | 3525.55 | 10576.64 |
| 40 | 59 | 351 | 17.3 | 7.55 | 4162.51 | 12487.53 | 20.5 | 8.23 | 3831.17 | 11493.50 |
| 40 | 59 | 355 | 17.1 | 7.55 | 4209.95 | 12629.84 | 20.3 | 8.23 | 3874.83 | 11624.48 |
| 40 | 59 | 420 | 14.5 | 7.55 | 4980.78 | 14942.34 | 17.1 | 8.23 | 4584.30 | 13752.90 |
| 40 | 59 | 462 | 13.2 | 7.55 | 5478.86 | 15000.00 | 15.6 | 8.23 | 5042.73 | 15000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
