100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Long Lifetime 60mm 24v 12v High Torque 100kg Low Rpm Geared Dc Motor

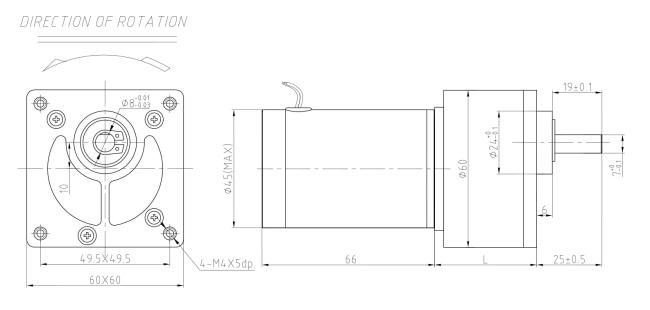

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY4564 | 12 | 6000 | 1100 | 4800 | 3.94 | 60.00 | 30.16 | 63.76 | 180.00 | 27.50 |
| ZY4564 | 24 | 4500 | 280 | 3600 | 1.00 | 40.00 | 15.08 | 62.62 | 120.00 | 7.00 |
| ZY4564 | 24 | 6000 | 500 | 4800 | 1.92 | 59.80 | 30.06 | 65.34 | 179.40 | 14.00 |
| ZY4564 | 24 | 7000 | 570 | 5600 | 2.23 | 57.00 | 33.42 | 62.38 | 171.00 | 16.53 |
| DC Motor With Gearbox Technical Data (1.25M) | ||||||||||
| Gearbox parameters | 12V-6000RPM Input | 24V-4500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.5 | 81 | 6.5 | 738.5 | 24.43 | 315.90 | 947.70 | 553.8 | 12.21 | 210.60 | 631.80 |
| 28.5 | 81 | 7.6 | 631.6 | 24.43 | 369.36 | 1108.08 | 473.7 | 12.21 | 246.24 | 738.72 |
| 28.5 | 81 | 8.3 | 578.3 | 24.43 | 403.38 | 1210.14 | 433.7 | 12.21 | 268.92 | 806.76 |
| 28.5 | 81 | 9.9 | 484.8 | 24.43 | 481.14 | 1443.42 | 363.6 | 12.21 | 320.76 | 962.28 |
| 28.5 | 81 | 10.8 | 444.4 | 24.43 | 524.88 | 1574.64 | 333.3 | 12.21 | 349.92 | 1049.76 |
| 28.5 | 81 | 12.8 | 375.0 | 24.43 | 622.08 | 1866.24 | 281.3 | 12.21 | 414.72 | 1244.16 |
| 28.5 | 81 | 14.1 | 340.4 | 24.43 | 685.26 | 2055.78 | 255.3 | 12.21 | 456.84 | 1370.52 |
| 33.5 | 73 | 20.7 | 231.9 | 22.01 | 906.66 | 2719.98 | 173.9 | 11.01 | 604.44 | 1813.32 |
| 33.5 | 73 | 24.3 | 197.5 | 22.01 | 1064.34 | 3193.02 | 148.1 | 11.01 | 709.56 | 2128.68 |
| 33.5 | 73 | 26.4 | 181.8 | 22.01 | 1156.32 | 3468.96 | 136.4 | 11.01 | 770.88 | 2312.64 |
| 33.5 | 73 | 27 | 177.8 | 22.01 | 1182.60 | 3547.80 | 133.3 | 11.01 | 788.40 | 2365.20 |
| 33.5 | 73 | 31.5 | 152.4 | 22.01 | 1379.70 | 4139.10 | 114.3 | 11.01 | 919.80 | 2759.40 |
| 33.5 | 73 | 34.3 | 139.9 | 22.01 | 1502.34 | 4507.02 | 105.0 | 11.01 | 1001.56 | 3004.68 |
| 33.5 | 73 | 34.7 | 138.3 | 22.01 | 1519.86 | 4559.58 | 103.7 | 11.01 | 1013.24 | 3039.72 |
| 33.5 | 73 | 41 | 117.1 | 22.01 | 1795.80 | 5387.40 | 87.8 | 11.01 | 1197.20 | 3591.60 |
| 33.5 | 73 | 45 | 106.7 | 22.01 | 1971.00 | 5913.00 | 80.0 | 11.01 | 1314.00 | 3942.00 |
| 36 | 65.6 | 66.3 | 72.4 | 19.78 | 2609.57 | 7828.70 | 54.3 | 9.89 | 1739.71 | 5219.14 |
| 36 | 65.6 | 77.7 | 61.8 | 19.78 | 3058.27 | 9174.82 | 46.3 | 9.89 | 2038.85 | 6116.54 |
| 36 | 65.6 | 86 | 55.8 | 19.78 | 3384.96 | 10154.88 | 41.9 | 9.89 | 2256.64 | 6769.92 |
| 36 | 65.6 | 101 | 47.5 | 19.78 | 3975.36 | 11926.08 | 35.6 | 9.89 | 2650.24 | 7950.72 |
| 36 | 65.6 | 111 | 43.2 | 19.78 | 4368.96 | 13106.88 | 32.4 | 9.89 | 2912.64 | 8737.92 |
| 36 | 65.6 | 131 | 36.6 | 19.78 | 5156.16 | 15000.00 | 27.5 | 9.89 | 3437.44 | 10312.32 |
| 36 | 65.6 | 144 | 33.3 | 19.78 | 5667.84 | 15000.00 | 25.0 | 9.89 | 3778.56 | 11335.68 |
| 40 | 59 | 212 | 22.6 | 17.79 | 7504.80 | 15000.00 | 17.0 | 8.90 | 5003.20 | 15000.00 |
| 40 | 59 | 249 | 19.3 | 17.79 | 8814.60 | 15000.00 | 14.5 | 8.90 | 5876.40 | 15000.00 |
| 40 | 59 | 270 | 17.8 | 17.79 | 9558.00 | 15000.00 | 13.3 | 8.90 | 6372.00 | 15000.00 |
| 40 | 59 | 276 | 17.4 | 17.79 | 9770.40 | 15000.00 | 13.0 | 8.90 | 6513.60 | 15000.00 |
| 40 | 59 | 323 | 14.9 | 17.79 | 11434.20 | 15000.00 | 11.1 | 8.90 | 7622.80 | 15000.00 |
| 40 | 59 | 351 | 13.7 | 17.79 | 12425.40 | 15000.00 | 10.3 | 8.90 | 8283.60 | 15000.00 |
| 40 | 59 | 355 | 13.5 | 17.79 | 12567.00 | 15000.00 | 10.1 | 8.90 | 8378.00 | 15000.00 |
| 40 | 59 | 420 | 11.4 | 17.79 | 14868.00 | 15000.00 | 8.6 | 8.90 | 9912.00 | 15000.00 |
| 40 | 59 | 462 | 10.4 | 17.79 | 15000.00 | 15000.00 | 7.8 | 8.90 | 10903.20 | 15000.00 |
| DC Motor With Gearbox Technical Data (1.25M) | ||||||||||
| Gearbox parameters | 24V-6000RPM Input | 24V-7000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.5 | 81 | 6.5 | 738.5 | 24.35 | 314.85 | 944.54 | 861.5 | 27.07 | 300.11 | 900.32 |
| 28.5 | 81 | 7.6 | 631.6 | 24.35 | 368.13 | 1104.39 | 736.8 | 27.07 | 350.89 | 1052.68 |
| 28.5 | 81 | 8.3 | 578.3 | 24.35 | 402.04 | 1206.11 | 674.7 | 27.07 | 383.21 | 1149.63 |
| 28.5 | 81 | 9.9 | 484.8 | 24.35 | 479.54 | 1438.61 | 565.7 | 27.07 | 457.08 | 1371.25 |
| 28.5 | 81 | 10.8 | 444.4 | 24.35 | 523.13 | 1569.39 | 518.5 | 27.07 | 498.64 | 1495.91 |
| 28.5 | 81 | 12.8 | 375.0 | 24.35 | 620.01 | 1860.02 | 437.5 | 27.07 | 590.98 | 1772.93 |
| 28.5 | 81 | 14.1 | 340.4 | 24.35 | 682.98 | 2048.93 | 397.2 | 27.07 | 651.00 | 1952.99 |
| 33.5 | 73 | 20.7 | 231.9 | 21.94 | 903.64 | 2710.91 | 270.5 | 24.40 | 861.33 | 2583.98 |
| 33.5 | 73 | 24.3 | 197.5 | 21.94 | 1060.79 | 3182.38 | 230.5 | 24.40 | 1011.12 | 3033.37 |
| 33.5 | 73 | 26.4 | 181.8 | 21.94 | 1152.47 | 3457.40 | 212.1 | 24.40 | 1098.50 | 3295.51 |
| 33.5 | 73 | 27 | 177.8 | 21.94 | 1178.66 | 3535.97 | 207.4 | 24.40 | 1123.47 | 3370.41 |
| 33.5 | 73 | 31.5 | 152.4 | 21.94 | 1375.10 | 4125.30 | 177.8 | 24.40 | 1310.72 | 3932.15 |
| 33.5 | 73 | 34.3 | 139.9 | 21.94 | 1497.33 | 4492.00 | 163.3 | 24.40 | 1427.22 | 4281.67 |
| 33.5 | 73 | 34.7 | 138.3 | 21.94 | 1514.79 | 4544.38 | 161.4 | 24.40 | 1443.87 | 4331.60 |
| 33.5 | 73 | 41 | 117.1 | 21.94 | 1789.81 | 5369.44 | 136.6 | 24.40 | 1706.01 | 5118.03 |
| 33.5 | 73 | 45 | 106.7 | 21.94 | 1964.43 | 5893.29 | 124.4 | 24.40 | 1872.45 | 5617.35 |
| 36 | 65.6 | 66.3 | 72.4 | 19.72 | 2600.87 | 7802.61 | 84.5 | 21.93 | 2479.09 | 7437.27 |
| 36 | 65.6 | 77.7 | 61.8 | 19.72 | 3048.08 | 9144.23 | 72.1 | 21.93 | 2905.36 | 8716.08 |
| 36 | 65.6 | 86 | 55.8 | 19.72 | 3373.68 | 10121.03 | 65.1 | 21.93 | 3215.71 | 9647.14 |
| 36 | 65.6 | 101 | 47.5 | 19.72 | 3962.11 | 11886.33 | 55.4 | 21.93 | 3776.59 | 11329.78 |
| 36 | 65.6 | 111 | 43.2 | 19.72 | 4354.40 | 13063.19 | 50.5 | 21.93 | 4150.51 | 12451.54 |
| 36 | 65.6 | 131 | 36.6 | 19.72 | 5138.97 | 15000.00 | 42.7 | 21.93 | 4898.35 | 14695.06 |
| 36 | 65.6 | 144 | 33.3 | 19.72 | 5648.95 | 15000.00 | 38.9 | 21.93 | 5384.45 | 15000.00 |
| 40 | 59 | 212 | 22.6 | 17.73 | 7479.78 | 15000.00 | 26.4 | 19.72 | 7129.56 | 15000.00 |
| 40 | 59 | 249 | 19.3 | 17.73 | 8785.22 | 15000.00 | 22.5 | 19.72 | 8373.87 | 15000.00 |
| 40 | 59 | 270 | 17.8 | 17.73 | 9526.14 | 15000.00 | 20.7 | 19.72 | 9080.10 | 15000.00 |
| 40 | 59 | 276 | 17.4 | 17.73 | 9737.83 | 15000.00 | 20.3 | 19.72 | 9281.88 | 15000.00 |
| 40 | 59 | 323 | 14.9 | 17.73 | 11396.09 | 15000.00 | 17.3 | 19.72 | 10862.49 | 15000.00 |
| 40 | 59 | 351 | 13.7 | 17.73 | 12383.98 | 15000.00 | 16.0 | 19.72 | 11804.13 | 15000.00 |
| 40 | 59 | 355 | 13.5 | 17.73 | 12525.11 | 15000.00 | 15.8 | 19.72 | 11938.65 | 15000.00 |
| 40 | 59 | 420 | 11.4 | 17.73 | 14818.44 | 15000.00 | 13.3 | 19.72 | 14124.60 | 15000.00 |
| 40 | 59 | 462 | 10.4 | 17.73 | 15000.00 | 15000.00 | 12.1 | 19.72 | 15000.00 | 15000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
