TYHE DC Spur Gear Motor 5000rpm 12V DC Gear Motor High Torque
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

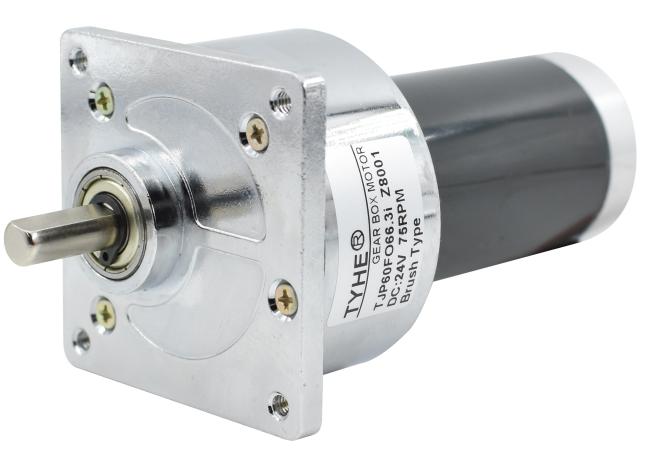

Manufacturer High Quality 60mm 5000rpm Hight Torque 24v 12 V Dc Spur Gear Motor

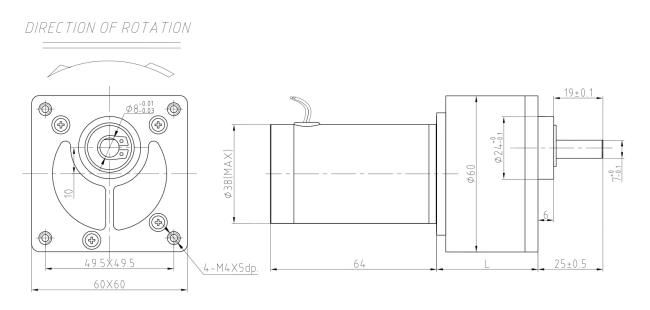

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY3864 | 12 | 4500 | 250 | 3600 | 0.95 | 19.50 | 7.35 | 64.82 | 58.50 | 5.70 |
| ZY3864 | 12 | 5000 | 300 | 4000 | 1.10 | 19.70 | 8.25 | 62.51 | 59.10 | 6.50 |
| ZY3864 | 12 | 5700 | 340 | 4560 | 1.22 | 19.80 | 9.45 | 64.37 | 59.40 | 7.14 |
| ZY3864 | 12 | 6000 | 380 | 4800 | 1.37 | 20.30 | 10.20 | 62.15 | 60.90 | 7.98 |
| DC Motor With Gearbox Technical Data (1.25M) | ||||||||||
| Gearbox parameters | 12V-4500RPM Input | 12V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.5 | 81 | 6.5 | 553.8 | 5.95 | 102.67 | 308.00 | 615.4 | 6.68 | 103.72 | 311.16 |
| 28.5 | 81 | 7.6 | 473.7 | 5.95 | 120.04 | 360.13 | 526.3 | 6.68 | 121.27 | 363.82 |
| 28.5 | 81 | 8.3 | 433.7 | 5.95 | 131.10 | 393.30 | 481.9 | 6.68 | 132.44 | 397.33 |
| 28.5 | 81 | 9.9 | 363.6 | 5.95 | 156.37 | 469.11 | 404.0 | 6.68 | 157.97 | 473.92 |
| 28.5 | 81 | 10.8 | 333.3 | 5.95 | 170.59 | 511.76 | 370.4 | 6.68 | 172.34 | 517.01 |
| 28.5 | 81 | 12.8 | 281.3 | 5.95 | 202.18 | 606.53 | 312.5 | 6.68 | 204.25 | 612.75 |
| 28.5 | 81 | 14.1 | 255.3 | 5.95 | 222.71 | 668.13 | 283.7 | 6.68 | 224.99 | 674.98 |
| 33.5 | 73 | 20.7 | 173.9 | 5.37 | 294.66 | 883.99 | 193.2 | 6.02 | 297.69 | 893.06 |
| 33.5 | 73 | 24.3 | 148.1 | 5.37 | 345.91 | 1037.73 | 164.6 | 6.02 | 349.46 | 1048.37 |
| 33.5 | 73 | 26.4 | 136.4 | 5.37 | 375.80 | 1127.41 | 151.5 | 6.02 | 379.66 | 1138.98 |
| 33.5 | 73 | 27 | 133.3 | 5.37 | 384.35 | 1153.04 | 148.1 | 6.02 | 388.29 | 1164.86 |
| 33.5 | 73 | 31.5 | 114.3 | 5.37 | 448.40 | 1345.21 | 127.0 | 6.02 | 453.00 | 1359.00 |
| 33.5 | 73 | 34.3 | 105.0 | 5.37 | 488.26 | 1464.78 | 116.6 | 6.02 | 493.27 | 1479.80 |
| 33.5 | 73 | 34.7 | 103.7 | 5.37 | 493.95 | 1481.86 | 115.3 | 6.02 | 499.02 | 1497.06 |
| 33.5 | 73 | 41 | 87.8 | 5.37 | 583.64 | 1750.91 | 97.6 | 6.02 | 589.62 | 1768.86 |
| 33.5 | 73 | 45 | 80.0 | 5.37 | 640.58 | 1921.73 | 88.9 | 6.02 | 647.15 | 1941.44 |
| 36 | 65.6 | 66.3 | 54.3 | 4.82 | 848.11 | 2544.33 | 60.3 | 5.41 | 856.81 | 2570.42 |
| 36 | 65.6 | 77.7 | 46.3 | 4.82 | 993.94 | 2981.82 | 51.5 | 5.41 | 1004.13 | 3012.40 |
| 36 | 65.6 | 86 | 41.9 | 4.82 | 1100.11 | 3300.34 | 46.5 | 5.41 | 1111.40 | 3334.19 |
| 36 | 65.6 | 101 | 35.6 | 4.82 | 1291.99 | 3875.98 | 39.6 | 5.41 | 1305.24 | 3915.73 |
| 36 | 65.6 | 111 | 32.4 | 4.82 | 1419.91 | 4259.74 | 36.0 | 5.41 | 1434.48 | 4303.43 |
| 36 | 65.6 | 131 | 27.5 | 4.82 | 1675.75 | 5027.26 | 30.5 | 5.41 | 1692.94 | 5078.82 |
| 36 | 65.6 | 144 | 25.0 | 4.82 | 1842.05 | 5526.14 | 27.8 | 5.41 | 1860.94 | 5582.82 |
| 40 | 59 | 212 | 17.0 | 4.34 | 2439.06 | 7317.18 | 18.9 | 4.87 | 2464.08 | 7392.23 |
| 40 | 59 | 249 | 14.5 | 4.34 | 2864.75 | 8594.24 | 16.1 | 4.87 | 2894.13 | 8682.38 |
| 40 | 59 | 270 | 13.3 | 4.34 | 3106.35 | 9319.05 | 14.8 | 4.87 | 3138.21 | 9414.63 |
| 40 | 59 | 276 | 13.0 | 4.34 | 3175.38 | 9526.14 | 14.5 | 4.87 | 3207.95 | 9623.84 |
| 40 | 59 | 323 | 11.1 | 4.34 | 3716.12 | 11148.35 | 12.4 | 4.87 | 3754.23 | 11262.69 |
| 40 | 59 | 351 | 10.3 | 4.34 | 4038.26 | 12114.77 | 11.4 | 4.87 | 4079.67 | 12239.02 |
| 40 | 59 | 355 | 10.1 | 4.34 | 4084.28 | 12252.83 | 11.3 | 4.87 | 4126.17 | 12378.50 |
| 40 | 59 | 420 | 8.6 | 4.34 | 4832.10 | 14496.30 | 9.5 | 4.87 | 4881.66 | 14644.98 |
| 40 | 59 | 462 | 7.8 | 4.34 | 5315.31 | 15000.00 | 8.7 | 4.87 | 5369.83 | 15000.00 |
| DC Motor With Gearbox Technical Data (1.25M) | ||||||||||
| Gearbox parameters | 12V-5700RPM Input | 12V-6000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.5 | 81 | 6.5 | 701.5 | 7.66 | 104.25 | 312.74 | 738.5 | 8.26 | 106.88 | 320.64 |
| 28.5 | 81 | 7.6 | 600.0 | 7.66 | 121.89 | 365.67 | 631.6 | 8.26 | 124.97 | 374.90 |
| 28.5 | 81 | 8.3 | 549.4 | 7.66 | 133.12 | 399.35 | 578.3 | 8.26 | 136.48 | 409.43 |
| 28.5 | 81 | 9.9 | 460.6 | 7.66 | 158.78 | 476.33 | 484.8 | 8.26 | 162.79 | 488.36 |
| 28.5 | 81 | 10.8 | 422.2 | 7.66 | 173.21 | 519.63 | 444.4 | 8.26 | 177.58 | 532.75 |
| 28.5 | 81 | 12.8 | 356.3 | 7.66 | 205.29 | 615.86 | 375.0 | 8.26 | 210.47 | 631.41 |
| 28.5 | 81 | 14.1 | 323.4 | 7.66 | 226.14 | 678.41 | 340.4 | 8.26 | 231.85 | 695.54 |
| 33.5 | 73 | 20.7 | 220.3 | 6.90 | 299.20 | 897.59 | 231.9 | 7.45 | 306.75 | 920.26 |
| 33.5 | 73 | 24.3 | 187.7 | 6.90 | 351.23 | 1053.70 | 197.5 | 7.45 | 360.10 | 1080.31 |
| 33.5 | 73 | 26.4 | 172.7 | 6.90 | 381.59 | 1144.76 | 181.8 | 7.45 | 391.22 | 1173.66 |
| 33.5 | 73 | 27 | 168.9 | 6.90 | 390.26 | 1170.77 | 177.8 | 7.45 | 400.11 | 1200.34 |
| 33.5 | 73 | 31.5 | 144.8 | 6.90 | 455.30 | 1365.90 | 152.4 | 7.45 | 466.80 | 1400.40 |
| 33.5 | 73 | 34.3 | 132.9 | 6.90 | 495.77 | 1487.32 | 139.9 | 7.45 | 508.29 | 1524.88 |
| 33.5 | 73 | 34.7 | 131.4 | 6.90 | 501.55 | 1504.66 | 138.3 | 7.45 | 514.22 | 1542.66 |
| 33.5 | 73 | 41 | 111.2 | 6.90 | 592.61 | 1777.84 | 117.1 | 7.45 | 607.58 | 1822.74 |
| 33.5 | 73 | 45 | 101.3 | 6.90 | 650.43 | 1951.29 | 106.7 | 7.45 | 666.86 | 2000.57 |
| 36 | 65.6 | 66.3 | 68.8 | 6.20 | 861.16 | 2583.47 | 72.4 | 6.69 | 882.90 | 2648.71 |
| 36 | 65.6 | 77.7 | 58.7 | 6.20 | 1009.23 | 3027.69 | 61.8 | 6.69 | 1034.72 | 3104.15 |
| 36 | 65.6 | 86 | 53.0 | 6.20 | 1117.04 | 3351.11 | 55.8 | 6.69 | 1145.24 | 3435.73 |
| 36 | 65.6 | 101 | 45.1 | 6.20 | 1311.87 | 3935.61 | 47.5 | 6.69 | 1345.00 | 4034.99 |
| 36 | 65.6 | 111 | 41.1 | 6.20 | 1441.76 | 4325.27 | 43.2 | 6.69 | 1478.16 | 4434.49 |
| 36 | 65.6 | 131 | 34.8 | 6.20 | 1701.53 | 5104.60 | 36.6 | 6.69 | 1744.50 | 5233.50 |
| 36 | 65.6 | 144 | 31.7 | 6.20 | 1870.39 | 5611.16 | 33.3 | 6.69 | 1917.62 | 5752.86 |
| 40 | 59 | 212 | 21.5 | 5.58 | 2476.58 | 7429.75 | 22.6 | 6.02 | 2539.12 | 7617.37 |
| 40 | 59 | 249 | 18.3 | 5.58 | 2908.82 | 8726.45 | 19.3 | 6.02 | 2982.27 | 8946.82 |
| 40 | 59 | 270 | 16.9 | 5.58 | 3154.14 | 9462.42 | 17.8 | 6.02 | 3233.79 | 9701.37 |
| 40 | 59 | 276 | 16.5 | 5.58 | 3224.23 | 9672.70 | 17.4 | 6.02 | 3305.65 | 9916.96 |
| 40 | 59 | 323 | 14.1 | 5.58 | 3773.29 | 11319.86 | 14.9 | 6.02 | 3868.57 | 11605.71 |
| 40 | 59 | 351 | 13.0 | 5.58 | 4100.38 | 12301.15 | 13.7 | 6.02 | 4203.93 | 12611.78 |
| 40 | 59 | 355 | 12.8 | 5.58 | 4147.11 | 12441.33 | 13.5 | 6.02 | 4251.84 | 12755.51 |
| 40 | 59 | 420 | 10.9 | 5.58 | 4906.44 | 14719.32 | 11.4 | 6.02 | 5030.34 | 15000.00 |
| 40 | 59 | 462 | 9.9 | 5.58 | 5397.08 | 15000.00 | 10.4 | 6.02 | 5533.37 | 15000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
