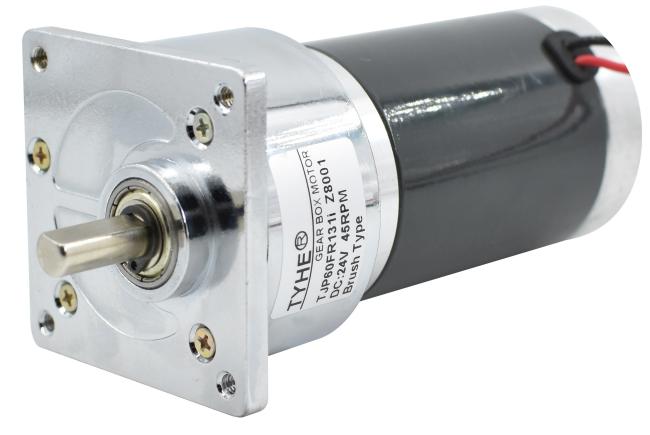

OEM ODM Square Cover 60W DC Spur Gear Motor 24 Volt 12V 50rpm
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Customizable Oem Odm Od60mm 24v 24 Volt 12v 50rpm 60w Dc Gear Motor Ce Rohs

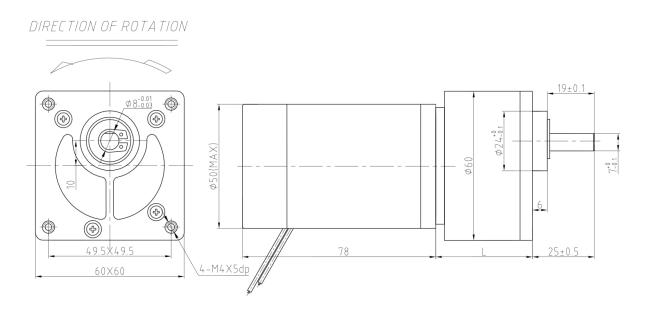

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY5078 | 12 | 4000 | 560 | 3200 | 2.17 | 49.32 | 16.53 | 63.37 | 147.96 | 16.00 |
| ZY5078 | 12 | 5500 | 850 | 4400 | 3.30 | 55.23 | 25.45 | 64.26 | 165.69 | 24.30 |
| ZY5078 | 12 | 6000 | 1030 | 4800 | 4.00 | 60.19 | 30.25 | 63.11 | 180.57 | 29.40 |
| ZY5078 | 12 | 6500 | 1300 | 5200 | 4.98 | 69.52 | 37.85 | 63.30 | 208.56 | 36.40 |
| DC Motor With Gearbox Technical Data (1.25M) | ||||||||||
| Gearbox parameters | 12V-4000RPM Input | 12V-5500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.5 | 81 | 6.5 | 492.3 | 13.39 | 259.67 | 779.01 | 676.9 | 20.61 | 290.79 | 872.36 |
| 28.5 | 81 | 7.6 | 421.1 | 13.39 | 303.61 | 910.84 | 578.9 | 20.61 | 340.00 | 1019.99 |
| 28.5 | 81 | 8.3 | 385.5 | 13.39 | 331.58 | 994.74 | 530.1 | 20.61 | 371.31 | 1113.93 |
| 28.5 | 81 | 9.9 | 323.2 | 13.39 | 395.50 | 1186.49 | 444.4 | 20.61 | 442.89 | 1328.67 |
| 28.5 | 81 | 10.8 | 296.3 | 13.39 | 431.45 | 1294.35 | 407.4 | 20.61 | 483.15 | 1449.46 |
| 28.5 | 81 | 12.8 | 250.0 | 13.39 | 511.35 | 1534.05 | 343.8 | 20.61 | 572.62 | 1717.87 |
| 28.5 | 81 | 14.1 | 227.0 | 13.39 | 563.28 | 1689.85 | 312.1 | 20.61 | 630.78 | 1892.35 |
| 33.5 | 73 | 20.7 | 154.6 | 12.06 | 745.27 | 2235.82 | 212.6 | 18.58 | 834.58 | 2503.74 |
| 33.5 | 73 | 24.3 | 131.7 | 12.06 | 874.89 | 2624.66 | 181.1 | 18.58 | 979.72 | 2939.17 |
| 33.5 | 73 | 26.4 | 121.2 | 12.06 | 950.50 | 2851.49 | 166.7 | 18.58 | 1064.39 | 3193.18 |
| 33.5 | 73 | 27 | 118.5 | 12.06 | 972.10 | 2916.29 | 163.0 | 18.58 | 1088.58 | 3265.75 |
| 33.5 | 73 | 31.5 | 101.6 | 12.06 | 1134.11 | 3402.34 | 139.7 | 18.58 | 1270.01 | 3810.04 |
| 33.5 | 73 | 34.3 | 93.3 | 12.06 | 1234.92 | 3704.77 | 128.3 | 18.58 | 1382.90 | 4148.71 |
| 33.5 | 73 | 34.7 | 92.2 | 12.06 | 1249.32 | 3747.97 | 126.8 | 18.58 | 1399.03 | 4197.09 |
| 33.5 | 73 | 41 | 78.0 | 12.06 | 1476.15 | 4428.44 | 107.3 | 18.58 | 1653.03 | 4959.10 |
| 33.5 | 73 | 45 | 71.1 | 12.06 | 1620.16 | 4860.49 | 97.8 | 18.58 | 1814.31 | 5442.92 |
| 36 | 65.6 | 66.3 | 48.3 | 10.84 | 2145.06 | 6435.19 | 66.4 | 16.69 | 2402.11 | 7206.32 |
| 36 | 65.6 | 77.7 | 41.2 | 10.84 | 2513.90 | 7541.70 | 56.6 | 16.69 | 2815.14 | 8445.42 |
| 36 | 65.6 | 86 | 37.2 | 10.84 | 2782.44 | 8347.31 | 51.2 | 16.69 | 3115.86 | 9347.57 |
| 36 | 65.6 | 101 | 31.7 | 10.84 | 3267.75 | 9803.24 | 43.6 | 16.69 | 3659.32 | 10977.96 |
| 36 | 65.6 | 111 | 28.8 | 10.84 | 3591.29 | 10773.86 | 39.6 | 16.69 | 4021.63 | 12064.88 |
| 36 | 65.6 | 131 | 24.4 | 10.84 | 4238.36 | 12715.09 | 33.6 | 16.69 | 4746.25 | 14238.74 |
| 36 | 65.6 | 144 | 22.2 | 10.84 | 4658.96 | 13976.89 | 30.6 | 16.69 | 5217.25 | 15000.00 |
| 40 | 59 | 212 | 15.1 | 9.75 | 6168.95 | 15000.00 | 20.8 | 15.01 | 6908.17 | 15000.00 |
| 40 | 59 | 249 | 12.9 | 9.75 | 7245.60 | 15000.00 | 17.7 | 15.01 | 8113.84 | 15000.00 |
| 40 | 59 | 270 | 11.9 | 9.75 | 7856.68 | 15000.00 | 16.3 | 15.01 | 8798.14 | 15000.00 |
| 40 | 59 | 276 | 11.6 | 9.75 | 8031.27 | 15000.00 | 15.9 | 15.01 | 8993.65 | 15000.00 |
| 40 | 59 | 323 | 9.9 | 9.75 | 9398.91 | 15000.00 | 13.6 | 15.01 | 10525.18 | 15000.00 |
| 40 | 59 | 351 | 9.1 | 9.75 | 10213.68 | 15000.00 | 12.5 | 15.01 | 11437.58 | 15000.00 |
| 40 | 59 | 355 | 9.0 | 9.75 | 10330.07 | 15000.00 | 12.4 | 15.01 | 11567.92 | 15000.00 |
| 40 | 59 | 420 | 7.6 | 9.75 | 12221.50 | 15000.00 | 10.5 | 15.01 | 13685.99 | 15000.00 |
| 40 | 59 | 462 | 6.9 | 9.75 | 13443.65 | 15000.00 | 9.5 | 15.01 | 15000.00 | 15000.00 |
| DC Motor With Gearbox Technical Data (1.25M) | ||||||||||
| Gearbox parameters | 12V-6000RPM Input | 12V-6500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.5 | 81 | 6.5 | 738.5 | 24.50 | 316.90 | 950.70 | 800.0 | 30.66 | 366.02 | 1098.07 |
| 28.5 | 81 | 7.6 | 631.6 | 24.50 | 370.53 | 1111.59 | 684.2 | 30.66 | 427.97 | 1283.90 |
| 28.5 | 81 | 8.3 | 578.3 | 24.50 | 404.66 | 1213.97 | 626.5 | 30.66 | 467.38 | 1402.15 |
| 28.5 | 81 | 9.9 | 484.8 | 24.50 | 482.66 | 1447.99 | 525.3 | 30.66 | 557.48 | 1672.44 |
| 28.5 | 81 | 10.8 | 444.4 | 24.50 | 526.54 | 1579.63 | 481.5 | 30.66 | 608.16 | 1824.48 |
| 28.5 | 81 | 12.8 | 375.0 | 24.50 | 624.05 | 1872.15 | 406.3 | 30.66 | 720.78 | 2162.35 |
| 28.5 | 81 | 14.1 | 340.4 | 24.50 | 687.43 | 2062.29 | 368.8 | 30.66 | 793.99 | 2381.96 |
| 33.5 | 73 | 20.7 | 231.9 | 22.08 | 909.53 | 2728.59 | 251.2 | 27.63 | 1050.52 | 3151.55 |
| 33.5 | 73 | 24.3 | 197.5 | 22.08 | 1067.71 | 3203.13 | 214.0 | 27.63 | 1233.22 | 3699.65 |
| 33.5 | 73 | 26.4 | 181.8 | 22.08 | 1159.98 | 3479.95 | 197.0 | 27.63 | 1339.79 | 4019.37 |
| 33.5 | 73 | 27 | 177.8 | 22.08 | 1186.34 | 3559.03 | 192.6 | 27.63 | 1370.24 | 4110.72 |
| 33.5 | 73 | 31.5 | 152.4 | 22.08 | 1384.07 | 4152.21 | 165.1 | 27.63 | 1598.61 | 4795.84 |
| 33.5 | 73 | 34.3 | 139.9 | 22.08 | 1507.10 | 4521.29 | 151.6 | 27.63 | 1740.71 | 5222.13 |
| 33.5 | 73 | 34.7 | 138.3 | 22.08 | 1524.67 | 4574.02 | 149.9 | 27.63 | 1761.01 | 5283.03 |
| 33.5 | 73 | 41 | 117.1 | 22.08 | 1801.49 | 5404.46 | 126.8 | 27.63 | 2080.73 | 6242.20 |
| 33.5 | 73 | 45 | 106.7 | 22.08 | 1977.24 | 5931.72 | 115.6 | 27.63 | 2283.73 | 6851.20 |
| 36 | 65.6 | 66.3 | 72.4 | 19.85 | 2617.83 | 7853.49 | 78.4 | 24.83 | 3023.62 | 9070.86 |
| 36 | 65.6 | 77.7 | 61.8 | 19.85 | 3067.96 | 9203.87 | 66.9 | 24.83 | 3543.52 | 10630.55 |
| 36 | 65.6 | 86 | 55.8 | 19.85 | 3395.68 | 10187.04 | 60.5 | 24.83 | 3922.04 | 11766.12 |
| 36 | 65.6 | 101 | 47.5 | 19.85 | 3987.95 | 11963.85 | 51.5 | 24.83 | 4606.12 | 13818.35 |
| 36 | 65.6 | 111 | 43.2 | 19.85 | 4382.80 | 13148.39 | 46.8 | 24.83 | 5062.17 | 15000.00 |
| 36 | 65.6 | 131 | 36.6 | 19.85 | 5172.49 | 15000.00 | 39.7 | 24.83 | 5974.27 | 15000.00 |
| 36 | 65.6 | 144 | 33.3 | 19.85 | 5685.79 | 15000.00 | 36.1 | 24.83 | 6567.14 | 15000.00 |
| 40 | 59 | 212 | 22.6 | 17.85 | 7528.57 | 15000.00 | 24.5 | 22.33 | 8695.56 | 15000.00 |
| 40 | 59 | 249 | 19.3 | 17.85 | 8842.51 | 15000.00 | 20.9 | 22.33 | 10213.18 | 15000.00 |
| 40 | 59 | 270 | 17.8 | 17.85 | 9588.27 | 15000.00 | 19.3 | 22.33 | 11074.54 | 15000.00 |
| 40 | 59 | 276 | 17.4 | 17.85 | 9801.34 | 15000.00 | 18.8 | 22.33 | 11320.64 | 15000.00 |
| 40 | 59 | 323 | 14.9 | 17.85 | 11470.41 | 15000.00 | 16.1 | 22.33 | 13248.43 | 15000.00 |
| 40 | 59 | 351 | 13.7 | 17.85 | 12464.75 | 15000.00 | 14.8 | 22.33 | 14396.90 | 15000.00 |
| 40 | 59 | 355 | 13.5 | 17.85 | 12606.80 | 15000.00 | 14.6 | 22.33 | 14560.96 | 15000.00 |
| 40 | 59 | 420 | 11.4 | 17.85 | 14915.08 | 15000.00 | 12.4 | 22.33 | 15000.00 | 15000.00 |
| 40 | 59 | 462 | 10.4 | 17.85 | 15000.00 | 15000.00 | 11.3 | 22.33 | 15000.00 | 15000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
