28mm Low Rpm 5nm High Torque Planetary Gear Motor For LED Light
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

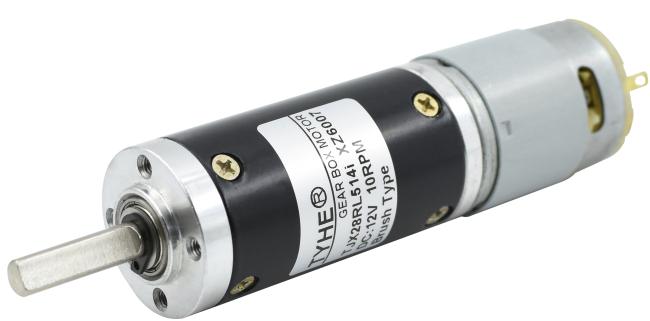

Customizable 28mm 6v 12v High Torque Low Rpm 5nm Brushed Dc Planetary Gear Motor For LED Light

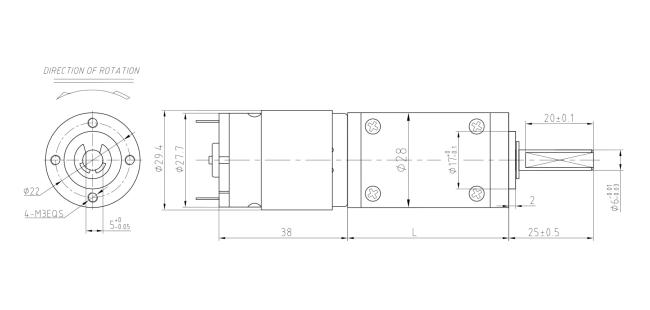

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS385 | 12 | 5500 | 140 | 4400 | 0.30 | 5.03 | 2.32 | 64.37 | 15.09 | 1.08 |
| RS385 | 12 | 8800 | 205 | 7040 | 0.64 | 6.50 | 4.79 | 62.31 | 19.50 | 4.00 |
| RS385 | 12 | 20000 | 320 | 16000 | 1.73 | 8.10 | 13.57 | 65.37 | 24.30 | 15.00 |
| RS385 | 24 | 5500 | 55 | 4400 | 0.15 | 5.10 | 2.35 | 64.20 | 15.30 | 0.84 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-5500RPM Input | 12V-8800RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 31.2 | 90 | 3.7 | 1189.2 | 2.09 | 16.75 | 50.25 | 1902.7 | 4.31 | 21.65 | 64.94 |
| 31.2 | 90 | 5.2 | 846.2 | 2.09 | 23.54 | 70.62 | 1353.8 | 4.31 | 30.42 | 91.26 |
| 40 | 81 | 13.7 | 321.2 | 1.88 | 55.82 | 167.45 | 513.9 | 3.88 | 72.13 | 216.39 |
| 40 | 81 | 19.2 | 229.2 | 1.88 | 78.23 | 234.68 | 366.7 | 3.88 | 101.09 | 303.26 |
| 40 | 81 | 26.9 | 163.6 | 1.88 | 109.60 | 328.80 | 261.7 | 3.88 | 141.63 | 424.89 |
| 40 | 81 | 35.0 | 125.7 | 1.88 | 142.60 | 427.80 | 201.1 | 3.88 | 184.28 | 552.83 |
| 48.8 | 73 | 51.0 | 86.3 | 1.69 | 187.27 | 561.80 | 138.0 | 3.50 | 242.00 | 725.99 |
| 48.8 | 73 | 71.0 | 62.0 | 1.69 | 260.70 | 782.11 | 99.2 | 3.50 | 336.90 | 1010.69 |
| 48.8 | 73 | 100.0 | 44.0 | 1.69 | 367.19 | 1101.57 | 70.4 | 3.50 | 474.50 | 1423.50 |
| 48.8 | 73 | 139.0 | 31.7 | 1.69 | 510.39 | 1531.18 | 50.6 | 3.50 | 659.56 | 1978.67 |
| 57.6 | 65.6 | 189.0 | 23.3 | 1.52 | 623.64 | 1870.92 | 37.2 | 3.14 | 805.90 | 2417.69 |
| 57.6 | 65.6 | 264.0 | 16.7 | 1.52 | 871.12 | 2613.35 | 26.7 | 3.14 | 1125.70 | 3377.09 |
| 57.6 | 65.6 | 369.0 | 11.9 | 1.52 | 1217.58 | 3652.75 | 19.1 | 3.14 | 1573.42 | 4720.25 |
| 57.6 | 65.6 | 514.0 | 8.6 | 1.52 | 1696.04 | 5000.00 | 13.7 | 3.14 | 2191.70 | 5000.00 |
| 57.6 | 65.6 | 721.0 | 6.1 | 1.52 | 2379.07 | 5000.00 | 9.8 | 3.14 | 3074.34 | 5000.00 |
| 66.4 | 59 | 699.0 | 6.3 | 1.37 | 2074.42 | 5000.00 | 10.1 | 2.83 | 2680.67 | 5000.00 |
| 66.4 | 59 | 977.0 | 4.5 | 1.37 | 2899.44 | 5000.00 | 7.2 | 2.83 | 3746.80 | 5000.00 |
| 66.4 | 59 | 1367.0 | 3.2 | 1.37 | 4056.85 | 5000.00 | 5.1 | 2.83 | 5000.00 | 5000.00 |
| 66.4 | 59 | 1911.0 | 2.3 | 1.37 | 5000.00 | 5000.00 | 3.7 | 2.83 | 5000.00 | 5000.00 |
| 66.4 | 59 | 2672.0 | 1.6 | 1.37 | 5000.00 | 5000.00 | 2.6 | 2.83 | 5000.00 | 5000.00 |
| 66.4 | 59 | 3736.0 | 1.2 | 1.37 | 5000.00 | 5000.00 | 1.9 | 2.83 | 5000.00 | 5000.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-20000RPM Input | 24V-5500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 31.2 | 90 | 3.7 | 4324.3 | 12.21 | 26.97 | 80.92 | 1189.2 | 2.11 | 16.98 | 50.95 |
| 31.2 | 90 | 5.2 | 3076.9 | 12.21 | 37.91 | 113.72 | 846.2 | 2.11 | 23.87 | 71.60 |
| 40 | 81 | 13.7 | 1167.9 | 10.99 | 89.89 | 269.66 | 321.2 | 1.90 | 56.59 | 169.78 |
| 40 | 81 | 19.2 | 833.3 | 10.99 | 125.97 | 377.91 | 229.2 | 1.90 | 79.32 | 237.95 |
| 40 | 81 | 26.9 | 594.8 | 10.99 | 176.49 | 529.47 | 163.6 | 1.90 | 111.12 | 333.37 |
| 40 | 81 | 35.0 | 457.1 | 10.99 | 229.64 | 688.91 | 125.7 | 1.90 | 144.59 | 433.76 |
| 48.8 | 73 | 51.0 | 313.7 | 9.91 | 301.56 | 904.69 | 86.3 | 1.72 | 189.87 | 569.62 |
| 48.8 | 73 | 71.0 | 225.4 | 9.91 | 419.82 | 1259.47 | 62.0 | 1.72 | 264.33 | 793.00 |
| 48.8 | 73 | 100.0 | 160.0 | 9.91 | 591.30 | 1773.90 | 44.0 | 1.72 | 372.30 | 1116.90 |
| 48.8 | 73 | 139.0 | 115.1 | 9.91 | 821.91 | 2465.72 | 31.7 | 1.72 | 517.50 | 1552.49 |
| 57.6 | 65.6 | 189.0 | 84.7 | 8.90 | 1004.27 | 3012.81 | 23.3 | 1.54 | 632.32 | 1896.96 |
| 57.6 | 65.6 | 264.0 | 60.6 | 8.90 | 1402.79 | 4208.37 | 16.7 | 1.54 | 883.24 | 2649.72 |
| 57.6 | 65.6 | 369.0 | 43.4 | 8.90 | 1960.72 | 5000.00 | 11.9 | 1.54 | 1234.53 | 3703.58 |
| 57.6 | 65.6 | 514.0 | 31.1 | 8.90 | 2731.19 | 5000.00 | 8.6 | 1.54 | 1719.64 | 5000.00 |
| 57.6 | 65.6 | 721.0 | 22.2 | 8.90 | 3831.11 | 5000.00 | 6.1 | 1.54 | 2412.18 | 5000.00 |
| 66.4 | 59 | 699.0 | 22.9 | 8.01 | 3340.52 | 5000.00 | 6.3 | 1.39 | 2103.29 | 5000.00 |
| 66.4 | 59 | 977.0 | 16.4 | 8.01 | 4669.08 | 5000.00 | 4.5 | 1.39 | 2939.79 | 5000.00 |
| 66.4 | 59 | 1367.0 | 11.7 | 8.01 | 5000.00 | 5000.00 | 3.2 | 1.39 | 4113.30 | 5000.00 |
| 66.4 | 59 | 1911.0 | 8.4 | 8.01 | 5000.00 | 5000.00 | 2.3 | 1.39 | 5000.00 | 5000.00 |
| 66.4 | 59 | 2672.0 | 6.0 | 8.01 | 5000.00 | 5000.00 | 1.6 | 1.39 | 5000.00 | 5000.00 |
| 66.4 | 59 | 3736.0 | 4.3 | 8.01 | 5000.00 | 5000.00 | 1.2 | 1.39 | 5000.00 | 5000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
