TYHE PMDC Geared Motor 8nm Planetary Gear Motor 12V For Grill
Price:
Negotiation
MOQ:
100pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

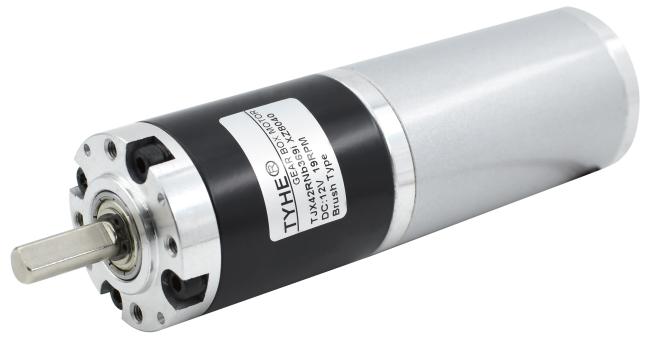

Factory Goods 42mm Size 12v 8nm High Torque PMDC Dc Planet Gear Motor For Grill

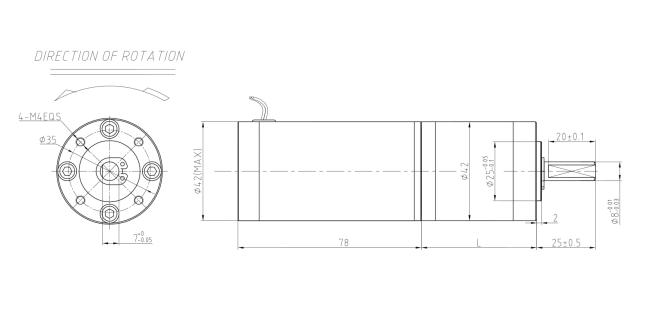

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY4278 | 12 | 4000 | 300 | 3200 | 1.20 | 26.50 | 8.88 | 61.66 | 79.50 | 7.50 |
| ZY4278 | 12 | 7500 | 750 | 6000 | 3.00 | 35.50 | 22.30 | 61.95 | 106.50 | 18.75 |
| ZY4278 | 24 | 2300 | 90 | 1840 | 0.36 | 28.10 | 5.41 | 62.66 | 84.30 | 2.25 |
| ZY4278 | 24 | 5500 | 260 | 4400 | 1.04 | 33.50 | 15.43 | 61.84 | 100.50 | 6.50 |
| DC Motor With Gearbox Technical Data (0.6M) | ||||||||||
| Gearbox parameters | 12V-4000RPM Input | 12V-7500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 29.7 | 90 | 3.7 | 864.9 | 7.99 | 88.25 | 264.74 | 1621.6 | 20.07 | 118.22 | 354.65 |
| 29.7 | 90 | 5.2 | 615.4 | 7.99 | 124.02 | 372.06 | 1153.8 | 20.07 | 166.14 | 498.42 |
| 39.4 | 81 | 13.7 | 233.6 | 7.19 | 294.07 | 882.21 | 438.0 | 18.07 | 393.94 | 1181.83 |
| 39.4 | 81 | 19.2 | 166.7 | 7.19 | 412.13 | 1236.38 | 312.5 | 18.07 | 552.10 | 1656.29 |
| 39.4 | 81 | 26.9 | 119.0 | 7.19 | 577.41 | 1732.23 | 223.0 | 18.07 | 773.51 | 2320.53 |
| 39.4 | 81 | 35.0 | 91.4 | 7.19 | 751.28 | 2253.83 | 171.4 | 18.07 | 1006.43 | 3019.28 |
| 49.1 | 73 | 51.0 | 62.7 | 6.48 | 986.60 | 2959.79 | 117.6 | 16.28 | 1321.67 | 3965.00 |
| 49.1 | 73 | 71.0 | 45.1 | 6.48 | 1373.50 | 4120.49 | 84.5 | 16.28 | 1839.97 | 5519.90 |
| 49.1 | 73 | 100.0 | 32.0 | 6.48 | 1934.50 | 5803.50 | 60.0 | 16.28 | 2591.50 | 7774.50 |
| 49.1 | 73 | 139.0 | 23.0 | 6.48 | 2688.96 | 8066.87 | 43.2 | 16.28 | 3602.19 | 10806.56 |
| 60.3 | 65.6 | 189.0 | 16.9 | 5.83 | 3285.58 | 9856.73 | 31.7 | 14.63 | 4401.43 | 13204.30 |
| 60.3 | 65.6 | 264.0 | 12.1 | 5.83 | 4589.38 | 13768.13 | 22.7 | 14.63 | 6148.03 | 18444.10 |
| 60.3 | 65.6 | 369.0 | 8.7 | 5.83 | 6414.70 | 19244.09 | 16.3 | 14.63 | 8593.27 | 25000.00 |
| 60.3 | 65.6 | 514.0 | 6.2 | 5.83 | 8935.38 | 25000.00 | 11.7 | 14.63 | 11970.03 | 25000.00 |
| 60.3 | 65.6 | 721.0 | 4.4 | 5.83 | 12533.86 | 25000.00 | 8.3 | 14.63 | 16790.65 | 25000.00 |
| 71.5 | 59 | 699.0 | 4.6 | 5.24 | 10928.87 | 25000.00 | 8.6 | 13.16 | 14640.56 | 25000.00 |
| 71.5 | 59 | 977.0 | 3.3 | 5.24 | 15275.40 | 25000.00 | 6.1 | 13.16 | 20463.27 | 25000.00 |
| 71.5 | 59 | 1367.0 | 2.3 | 5.24 | 21373.05 | 25000.00 | 4.4 | 13.16 | 25000.00 | 25000.00 |
| 71.5 | 59 | 1911.0 | 1.7 | 5.24 | 25000.00 | 25000.00 | 3.1 | 13.16 | 25000.00 | 25000.00 |
| 71.5 | 59 | 2672.0 | 1.2 | 5.24 | 25000.00 | 25000.00 | 2.2 | 13.16 | 25000.00 | 25000.00 |
| 71.5 | 59 | 3736.0 | 0.9 | 5.24 | 25000.00 | 25000.00 | 1.6 | 13.16 | 25000.00 | 25000.00 |
| DC Motor With Gearbox Technical Data (0.6M) | ||||||||||
| Gearbox parameters | 24V-2300RPM Input | 24V-5500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 29.7 | 90 | 3.7 | 497.3 | 4.87 | 93.57 | 280.72 | 1189.2 | 13.89 | 111.56 | 334.67 |
| 29.7 | 90 | 5.2 | 353.8 | 4.87 | 131.51 | 394.52 | 846.2 | 13.89 | 156.78 | 470.34 |
| 39.4 | 81 | 13.7 | 134.3 | 4.39 | 311.83 | 935.48 | 321.2 | 12.50 | 371.75 | 1115.25 |
| 39.4 | 81 | 19.2 | 95.8 | 4.39 | 437.01 | 1311.03 | 229.2 | 12.50 | 520.99 | 1562.98 |
| 39.4 | 81 | 26.9 | 68.4 | 4.39 | 612.27 | 1836.81 | 163.6 | 12.50 | 729.93 | 2189.79 |
| 39.4 | 81 | 35.0 | 52.6 | 4.39 | 796.64 | 2389.91 | 125.7 | 12.50 | 949.73 | 2849.18 |
| 49.1 | 73 | 51.0 | 36.1 | 3.95 | 1046.16 | 3138.49 | 86.3 | 11.27 | 1247.21 | 3741.62 |
| 49.1 | 73 | 71.0 | 25.9 | 3.95 | 1456.42 | 4369.27 | 62.0 | 11.27 | 1736.31 | 5208.92 |
| 49.1 | 73 | 100.0 | 18.4 | 3.95 | 2051.30 | 6153.90 | 44.0 | 11.27 | 2445.50 | 7336.50 |
| 49.1 | 73 | 139.0 | 13.2 | 3.95 | 2851.31 | 8553.92 | 31.7 | 11.27 | 3399.25 | 10197.74 |
| 60.3 | 65.6 | 189.0 | 9.7 | 3.55 | 3483.95 | 10451.85 | 23.3 | 10.13 | 4153.46 | 12460.39 |
| 60.3 | 65.6 | 264.0 | 7.0 | 3.55 | 4866.47 | 14599.41 | 16.7 | 10.13 | 5801.66 | 17404.99 |
| 60.3 | 65.6 | 369.0 | 5.0 | 3.55 | 6802.00 | 20406.00 | 11.9 | 10.13 | 8109.14 | 24327.43 |
| 60.3 | 65.6 | 514.0 | 3.6 | 3.55 | 9474.87 | 25000.00 | 8.6 | 10.13 | 11295.66 | 25000.00 |
| 60.3 | 65.6 | 721.0 | 2.6 | 3.55 | 13290.63 | 25000.00 | 6.1 | 10.13 | 15844.70 | 25000.00 |
| 71.5 | 59 | 699.0 | 2.6 | 3.19 | 11588.72 | 25000.00 | 6.3 | 9.11 | 13815.74 | 25000.00 |
| 71.5 | 59 | 977.0 | 1.9 | 3.19 | 16197.68 | 25000.00 | 4.5 | 9.11 | 19310.41 | 25000.00 |
| 71.5 | 59 | 1367.0 | 1.3 | 3.19 | 22663.49 | 25000.00 | 3.2 | 9.11 | 25000.00 | 25000.00 |
| 71.5 | 59 | 1911.0 | 1.0 | 3.19 | 25000.00 | 25000.00 | 2.3 | 9.11 | 25000.00 | 25000.00 |
| 71.5 | 59 | 2672.0 | 0.7 | 3.19 | 25000.00 | 25000.00 | 1.6 | 9.11 | 25000.00 | 25000.00 |
| 71.5 | 59 | 3736.0 | 0.5 | 3.19 | 25000.00 | 25000.00 | 1.2 | 9.11 | 25000.00 | 25000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
