200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm
Price:
Negotiation
MOQ:
100pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

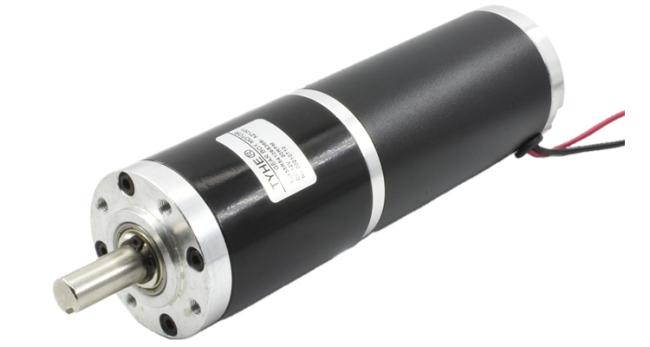

Reversible 55mm 200kg.Cm 25nm 30nm 40nm High Torque 12v 24v Dc Planetary Geared Motor For Door
2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY54106 | 12 | 7000 | 1950 | 5600 | 9.08 | 125.67 | 73.69 | 67.67 | 377.01 | 37.50 |
| ZY54106 | 24 | 7000 | 980 | 5600 | 4.89 | 129.64 | 76.02 | 64.74 | 388.92 | 21.50 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 12V-7000RPM Input | 24V-7000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 31.8 | 90 | 3.7 | 1513.5 | 66.32 | 418.48 | 1255.44 | 1513.5 | 68.42 | 431.70 | 1295.10 |
| 31.8 | 90 | 5.2 | 1076.9 | 66.32 | 588.14 | 1764.41 | 1076.9 | 68.42 | 606.72 | 1820.15 |
| 44 | 81 | 13.7 | 408.8 | 59.69 | 1394.56 | 4183.68 | 408.8 | 61.58 | 1438.62 | 4315.85 |
| 44 | 81 | 19.2 | 291.7 | 59.69 | 1954.42 | 5863.26 | 291.7 | 61.58 | 2016.16 | 6048.48 |
| 44 | 81 | 26.9 | 208.2 | 59.69 | 2738.22 | 8214.67 | 208.2 | 61.58 | 2824.73 | 8474.18 |
| 44 | 81 | 35.0 | 160.0 | 59.69 | 3562.74 | 10688.23 | 160.0 | 61.58 | 3675.29 | 11025.88 |
| 57.5 | 73 | 51.0 | 109.8 | 53.79 | 4678.69 | 14036.08 | 109.8 | 55.49 | 4826.50 | 14479.49 |
| 57.5 | 73 | 71.0 | 78.9 | 53.79 | 6513.48 | 19540.43 | 78.9 | 55.49 | 6719.24 | 20157.72 |
| 57.5 | 73 | 100.0 | 56.0 | 53.79 | 9173.91 | 27521.73 | 56.0 | 55.49 | 9463.72 | 28391.16 |
| 57.5 | 73 | 139.0 | 40.3 | 53.79 | 12751.73 | 38255.20 | 40.3 | 55.49 | 13154.57 | 39463.71 |
| 72.5 | 65.6 | 189.0 | 29.6 | 48.34 | 15581.07 | 46743.21 | 29.6 | 49.87 | 16073.29 | 48000.00 |
| 72.5 | 65.6 | 264.0 | 21.2 | 48.34 | 21764.03 | 48000.00 | 21.2 | 49.87 | 22451.57 | 48000.00 |
| 72.5 | 65.6 | 369.0 | 15.2 | 48.34 | 30420.18 | 48000.00 | 15.2 | 49.87 | 31381.18 | 48000.00 |
| 72.5 | 65.6 | 514.0 | 10.9 | 48.34 | 42373.91 | 48000.00 | 10.9 | 49.87 | 43712.53 | 48000.00 |
| 72.5 | 65.6 | 721.0 | 7.8 | 48.34 | 48000.00 | 48000.00 | 7.8 | 49.87 | 48000.00 | 48000.00 |
| 85.7 | 59 | 699.0 | 8.0 | 43.48 | 48000.00 | 48000.00 | 8.0 | 44.85 | 48000.00 | 48000.00 |
| 85.7 | 59 | 977.0 | 5.7 | 43.48 | 48000.00 | 48000.00 | 5.7 | 44.85 | 48000.00 | 48000.00 |
| 85.7 | 59 | 1367.0 | 4.1 | 43.48 | 48000.00 | 48000.00 | 4.1 | 44.85 | 48000.00 | 48000.00 |
| 85.7 | 59 | 1911.0 | 2.9 | 43.48 | 48000.00 | 48000.00 | 2.9 | 44.85 | 48000.00 | 48000.00 |
| 85.7 | 59 | 2672.0 | 2.1 | 43.48 | 48000.00 | 48000.00 | 2.1 | 44.85 | 48000.00 | 48000.00 |
| 85.7 | 59 | 3736.0 | 1.5 | 43.48 | 48000.00 | 48000.00 | 1.5 | 44.85 | 48000.00 | 48000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
