20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

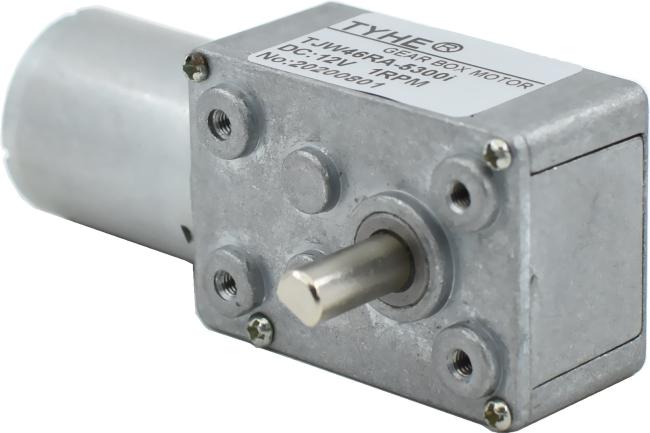

Custom 6v 12 Volt 20 Rpm Dc Right Angle High Torque Worm Gear Motor 12v High Torque

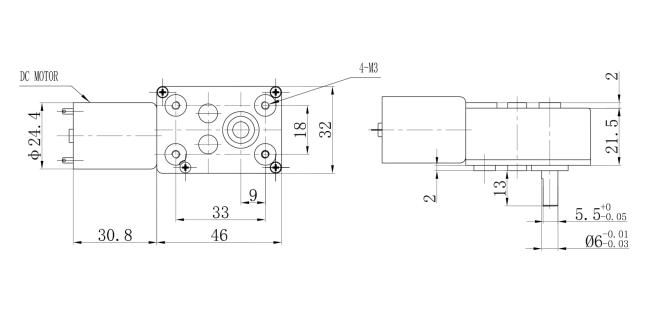

2D drawing
Specifications
| DC Motor With Worm Gearbox Technical Data | ||||||||||
| Model | GearBox Parameters | DC Motor Parameters | ||||||||
| Ratio |
Rated Torque (kgf.cm) |
Stall Torque (kgf.cm) |
No-load Speed (rpm) |
Rated Speed (rpm) |
No-load Current (mA) |
Rated Current (mA) |
Stall Current (mA) |
Rated Volt (V) |
No-load Speed (rpm) |
|
| TJW46FZY370-40i | 40 | 0.08 | 0.24 | 175.00 | 140.00 | 100 | 280 | 840 | 12 | 7000 |
| TJW46FZY370-40i | 40 | 0.07 | 0.21 | 200.00 | 160.00 | 100 | 280 | 840 | 12 | 8000 |
| TJW46FZY370-69i | 69 | 0.05 | 0.15 | 68.12 | 54.49 | 100 | 280 | 840 | 3 | 4700 |
| TJW46FZY370-69i | 69 | 0.04 | 0.13 | 94.20 | 75.36 | 30 | 84 | 252 | 12 | 6500 |
| TJW46FZY370-100i | 100 | 0.14 | 0.41 | 83.00 | 66.40 | 40 | 112 | 336 | 24 | 8300 |
| TJW46FZY370-100i | 100 | 0.17 | 0.52 | 65.00 | 52.00 | 40 | 112 | 336 | 24 | 6500 |
| TJW46FZY370-180i | 180 | 0.15 | 0.45 | 47.22 | 37.78 | 100 | 280 | 840 | 6 | 8500 |
| TJW46FZY370-180i | 180 | 0.19 | 0.58 | 36.11 | 28.89 | 50 | 140 | 420 | 12 | 6500 |
| TJW46FZY370-180i | 180 | 0.22 | 0.65 | 38.89 | 31.11 | 60 | 168 | 504 | 12 | 7000 |
| TJW46FZY370-180i | 180 | 0.18 | 0.55 | 46.11 | 36.89 | 60 | 168 | 504 | 12 | 8300 |
| TJW46FZY370-255i | 255 | 0.26 | 0.78 | 32.55 | 26.04 | 60 | 168 | 504 | 12 | 8300 |
| TJW46FZY370-255i | 255 | 0.26 | 0.78 | 43.14 | 34.51 | 80 | 224 | 672 | 12 | 11000 |
| TJW46FZY370-330i | 330 | 0.25 | 0.74 | 14.24 | 11.39 | 100 | 280 | 840 | 3 | 4700 |
| TJW46FZY370-330i | 330 | 0.30 | 0.89 | 23.64 | 18.91 | 120 | 336 | 1008 | 5 | 7800 |
| TJW46FZY370-330i | 330 | 0.33 | 1.00 | 12.58 | 10.06 | 30 | 84 | 252 | 12 | 4150 |
| TJW46FZY370-950i | 950 | 0.96 | 2.89 | 8.74 | 6.99 | 60 | 168 | 504 | 12 | 8300 |
| TJW46FZY370-950i | 950 | 1.07 | 3.20 | 10.53 | 8.42 | 80 | 224 | 672 | 12 | 10000 |
| TJW46FZY370-950i | 950 | 1.29 | 3.86 | 8.74 | 6.99 | 40 | 112 | 336 | 24 | 8300 |
| TJW46FZY370-1170i | 1170 | 1.26 | 3.79 | 5.56 | 4.44 | 50 | 140 | 420 | 12 | 6500 |
| TJW46FZY370-1450i | 1450 | 1.96 | 5.89 | 2.86 | 2.29 | 40 | 112 | 336 | 12 | 4150 |
| TJW46FZY370-1650i | 1650 | 2.14 | 6.41 | 3.94 | 3.15 | 30 | 84 | 252 | 24 | 6500 |
| TJW46FZY370-1650i | 1650 | 2.79 | 8.37 | 5.03 | 4.02 | 50 | 140 | 420 | 24 | 8300 |
| TJW46FZY370-5300i | 5300 | 4.43 | 13.29 | 0.66 | 0.53 | 50 | 140 | 420 | 5 | 3500 |
| TJW46FZY370-5300i | 5300 | 6.38 | 19.13 | 0.66 | 0.53 | 30 | 84 | 252 | 12 | 3500 |
Please let us know your requirements and we will provide you with transmission solutions.
