65*48mm 5W DC Spur Gearbox Flat Gear Motor 0.1nm Torque
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Factory Goods 65*48mm Size 12v 24v 0.1nm Torque 5w Dc Spur Gearbox Motor For Electronic Control Valve

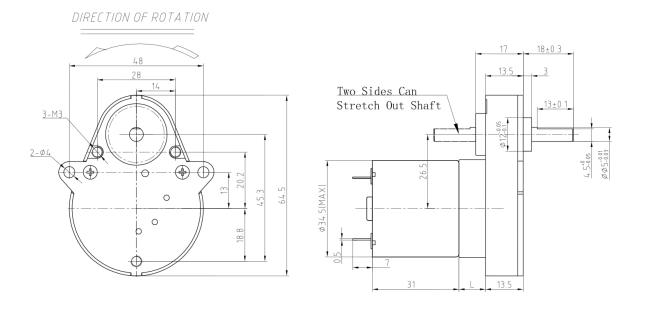

2D drawing (Gear ratio≤244)

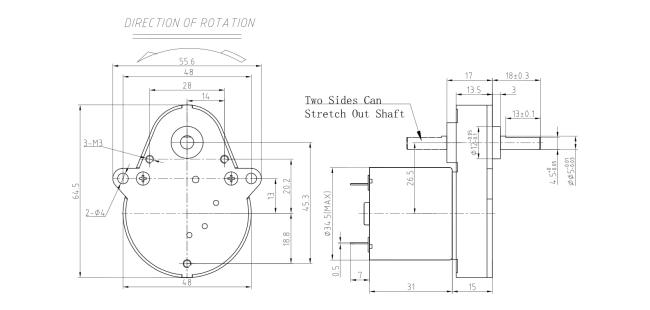

2D drawing (Gear ratio＞244)
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY3530 | 12 | 5500 | 60 | 4400 | 0.23 | 3.81 | 1.76 | 62.69 | 11.43 | 1.72 |
| ZY3530 | 12 | 6500 | 65 | 5200 | 0.31 | 4.18 | 2.28 | 61.18 | 12.54 | 2.00 |
| ZY3530 | 12 | 7300 | 67 | 5840 | 0.36 | 4.35 | 2.66 | 61.78 | 13.05 | 3.10 |
| ZY3530 | 12 | 9000 | 90 | 7200 | 0.43 | 4.31 | 3.25 | 63.47 | 12.93 | 3.50 |
| ZY3530 | 24 | 3500 | 14 | 2800 | 0.06 | 3.17 | 0.93 | 62.63 | 9.51 | 0.49 |
| ZY3530 | 24 | 5200 | 22 | 4160 | 0.11 | 4.01 | 1.75 | 63.47 | 12.03 | 0.98 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-5500RPM Input | 12V-6500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 65 | 81 | 8.3 | 530.1 | 1.42 | 25.61 | 76.84 | 626.5 | 1.84 | 28.10 | 84.31 |
| 65 | 81 | 12.0 | 366.7 | 1.42 | 37.03 | 111.10 | 433.3 | 1.84 | 40.63 | 121.89 |
| 65 | 73 | 15.7 | 280.3 | 1.28 | 43.67 | 131.00 | 331.2 | 1.66 | 47.91 | 143.72 |
| 65 | 73 | 18.2 | 241.8 | 1.28 | 50.62 | 151.86 | 285.7 | 1.66 | 55.54 | 166.61 |
| 65 | 73 | 22.6 | 194.7 | 1.28 | 62.86 | 188.57 | 230.1 | 1.66 | 68.96 | 206.88 |
| 65 | 73 | 32.4 | 135.8 | 1.28 | 90.11 | 270.34 | 160.5 | 1.66 | 98.87 | 296.60 |
| 65 | 73 | 37.0 | 118.9 | 1.28 | 102.91 | 308.72 | 140.5 | 1.66 | 112.90 | 338.71 |
| 65 | 65.6 | 81.3 | 54.1 | 1.15 | 203.20 | 609.59 | 64.0 | 1.49 | 222.93 | 668.79 |
| 65 | 65.6 | 111.0 | 39.6 | 1.15 | 277.43 | 832.29 | 46.8 | 1.49 | 304.37 | 913.11 |
| 65 | 59 | 179.0 | 24.6 | 1.04 | 402.37 | 1207.12 | 29.1 | 1.34 | 441.45 | 1324.35 |
| 65 | 59 | 244.0 | 18.0 | 1.04 | 548.49 | 1500.00 | 21.3 | 1.34 | 601.75 | 1500.00 |
| 65 | 53 | 394.0 | 11.2 | 0.93 | 795.60 | 1500.00 | 13.2 | 1.21 | 872.87 | 1500.00 |
| 65 | 53 | 537.0 | 8.2 | 0.93 | 1084.36 | 1500.00 | 9.7 | 1.21 | 1189.67 | 1500.00 |
| 65 | 47.8 | 866.0 | 5.1 | 0.84 | 1500.00 | 1500.00 | 6.0 | 1.09 | 1500.00 | 1500.00 |
| 65 | 47.8 | 1181.0 | 3.7 | 0.84 | 1500.00 | 1500.00 | 4.4 | 1.09 | 1500.00 | 1500.00 |
| 65 | 43 | 1905.0 | 2.3 | 0.75 | 1500.00 | 1500.00 | 2.7 | 0.98 | 1500.00 | 1500.00 |
| 65 | 43 | 2597.0 | 1.7 | 0.75 | 1500.00 | 1500.00 | 2.0 | 0.98 | 1500.00 | 1500.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-7300RPM Input | 12V-9000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 65 | 81 | 8.3 | 703.6 | 2.15 | 29.25 | 87.74 | 867.5 | 2.63 | 28.98 | 86.93 |
| 65 | 81 | 12.0 | 486.7 | 2.15 | 42.28 | 126.85 | 600.0 | 2.63 | 41.89 | 125.68 |
| 65 | 73 | 15.7 | 372.0 | 1.94 | 49.86 | 149.57 | 458.6 | 2.37 | 49.40 | 148.19 |
| 65 | 73 | 18.2 | 320.9 | 1.94 | 57.79 | 173.38 | 395.6 | 2.37 | 57.26 | 171.79 |
| 65 | 73 | 22.6 | 258.4 | 1.94 | 71.77 | 215.30 | 318.6 | 2.37 | 71.11 | 213.32 |
| 65 | 73 | 32.4 | 180.2 | 1.94 | 102.89 | 308.66 | 222.2 | 2.37 | 101.94 | 305.82 |
| 65 | 73 | 37.0 | 157.8 | 1.94 | 117.49 | 352.48 | 194.6 | 2.37 | 116.41 | 349.24 |
| 65 | 65.6 | 81.3 | 71.8 | 1.75 | 232.00 | 695.99 | 88.6 | 2.13 | 229.86 | 689.59 |
| 65 | 65.6 | 111.0 | 52.6 | 1.75 | 316.75 | 950.25 | 64.9 | 2.13 | 313.84 | 941.51 |
| 65 | 59 | 179.0 | 32.6 | 1.57 | 459.40 | 1378.21 | 40.2 | 1.92 | 455.18 | 1365.54 |
| 65 | 59 | 244.0 | 23.9 | 1.57 | 626.23 | 1500.00 | 29.5 | 1.92 | 620.47 | 1500.00 |
| 65 | 53 | 394.0 | 14.8 | 1.41 | 908.37 | 1500.00 | 18.3 | 1.72 | 900.01 | 1500.00 |
| 65 | 53 | 537.0 | 10.9 | 1.41 | 1238.05 | 1500.00 | 13.4 | 1.72 | 1226.67 | 1500.00 |
| 65 | 47.8 | 866.0 | 6.7 | 1.27 | 1500.00 | 1500.00 | 8.3 | 1.55 | 1500.00 | 1500.00 |
| 65 | 47.8 | 1181.0 | 4.9 | 1.27 | 1500.00 | 1500.00 | 6.1 | 1.55 | 1500.00 | 1500.00 |
| 65 | 43 | 1905.0 | 3.1 | 1.14 | 1500.00 | 1500.00 | 3.8 | 1.40 | 1500.00 | 1500.00 |
| 65 | 43 | 2597.0 | 2.2 | 1.14 | 1500.00 | 1500.00 | 2.8 | 1.40 | 1500.00 | 1500.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 24V-3500RPM Input | 24V-5200RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 65 | 81 | 8.3 | 337.3 | 0.75 | 21.31 | 63.94 | 501.2 | 1.41 | 26.96 | 80.88 |
| 65 | 81 | 12.0 | 233.3 | 0.75 | 30.81 | 92.44 | 346.7 | 1.41 | 38.98 | 116.93 |
| 65 | 73 | 15.7 | 178.3 | 0.68 | 36.33 | 108.99 | 265.0 | 1.28 | 45.96 | 137.88 |
| 65 | 73 | 18.2 | 153.8 | 0.68 | 42.12 | 126.35 | 228.6 | 1.28 | 53.28 | 159.83 |
| 65 | 73 | 22.6 | 123.9 | 0.68 | 52.30 | 156.90 | 184.1 | 1.28 | 66.16 | 198.47 |
| 65 | 73 | 32.4 | 86.4 | 0.68 | 74.98 | 224.93 | 128.4 | 1.28 | 94.84 | 284.53 |
| 65 | 73 | 37.0 | 75.7 | 0.68 | 85.62 | 256.87 | 112.4 | 1.28 | 108.31 | 324.93 |
| 65 | 65.6 | 81.3 | 34.4 | 0.61 | 169.06 | 507.19 | 51.2 | 1.15 | 213.86 | 641.59 |
| 65 | 65.6 | 111.0 | 25.2 | 0.61 | 230.83 | 692.48 | 37.5 | 1.15 | 291.99 | 875.98 |
| 65 | 59 | 179.0 | 15.6 | 0.55 | 334.78 | 1004.35 | 23.2 | 1.03 | 423.50 | 1270.49 |
| 65 | 59 | 244.0 | 11.5 | 0.55 | 456.35 | 1369.06 | 17.0 | 1.03 | 577.28 | 1500.00 |
| 65 | 53 | 394.0 | 7.1 | 0.49 | 661.96 | 1500.00 | 10.6 | 0.93 | 837.37 | 1500.00 |
| 65 | 53 | 537.0 | 5.2 | 0.49 | 902.21 | 1500.00 | 7.7 | 0.93 | 1141.29 | 1500.00 |
| 65 | 47.8 | 866.0 | 3.2 | 0.44 | 1312.22 | 1500.00 | 4.8 | 0.83 | 1500.00 | 1500.00 |
| 65 | 47.8 | 1181.0 | 2.4 | 0.44 | 1500.00 | 1500.00 | 3.5 | 0.83 | 1500.00 | 1500.00 |
| 65 | 43 | 1905.0 | 1.5 | 0.40 | 1500.00 | 1500.00 | 2.2 | 0.75 | 1500.00 | 1500.00 |
| 65 | 43 | 2597.0 | 1.1 | 0.40 | 1500.00 | 1500.00 | 1.6 | 0.75 | 1500.00 | 1500.00 |
Please let us know your requirements and we will provide you with transmission solutions.
