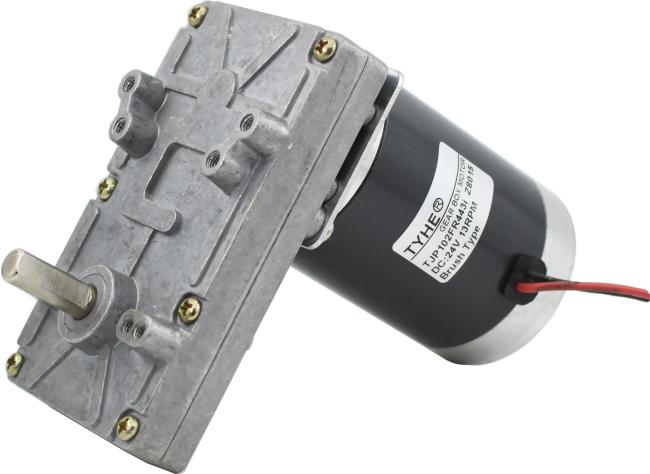

TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
High Quality Factory Price 102*60mm Size 12v 24v 75w 200kg Cm High Torque Dc Flat Gearbox Motor For Valve

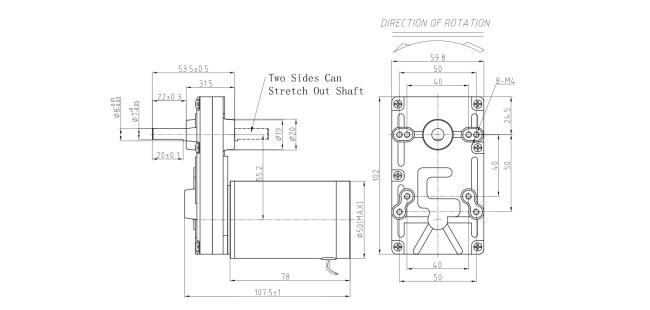

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY5078 | 12 | 6000 | 1030 | 4800 | 4.00 | 60.19 | 30.25 | 63.11 | 180.57 | 29.40 |
| ZY5078 | 12 | 6500 | 1300 | 5200 | 4.98 | 69.52 | 37.85 | 63.30 | 208.56 | 36.40 |
| ZY5078 | 24 | 3000 | 230 | 2400 | 0.82 | 50.12 | 12.60 | 63.68 | 150.36 | 5.75 |
| ZY5078 | 24 | 4000 | 350 | 3200 | 1.25 | 57.30 | 19.20 | 63.79 | 171.90 | 8.75 |
| ZY5078 | 24 | 5000 | 470 | 4000 | 1.68 | 60.35 | 25.28 | 62.54 | 181.05 | 11.75 |
| ZY5078 | 24 | 6000 | 610 | 4800 | 2.19 | 67.39 | 33.87 | 64.57 | 202.17 | 15.25 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 12V-6000RPM Input | 12V-6500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 102 | 73 | 23.0 | 208.7 | 22.08 | 1010.59 | 3031.77 | 226.1 | 27.63 | 1167.24 | 3501.72 |
| 102 | 73 | 31.5 | 152.4 | 22.08 | 1384.07 | 4152.21 | 165.1 | 27.63 | 1598.61 | 4795.84 |
| 102 | 73 | 57.0 | 84.2 | 22.08 | 2504.51 | 7513.52 | 91.2 | 27.63 | 2892.73 | 8678.18 |
| 102 | 73 | 80.0 | 60.0 | 22.08 | 3515.10 | 10545.29 | 65.0 | 27.63 | 4059.97 | 12179.90 |
| 102 | 73 | 108.0 | 44.4 | 22.08 | 4745.38 | 14236.14 | 48.1 | 27.63 | 5480.96 | 15000.00 |
| 102 | 73 | 127.0 | 37.8 | 22.08 | 5580.21 | 15000.00 | 40.9 | 27.63 | 6445.20 | 15000.00 |
| 102 | 59 | 198.0 | 24.2 | 17.85 | 7031.40 | 15000.00 | 26.3 | 22.33 | 8121.33 | 15000.00 |
| 102 | 59 | 234.0 | 20.5 | 17.85 | 8309.83 | 15000.00 | 22.2 | 22.33 | 9597.93 | 15000.00 |
| 102 | 59 | 272.0 | 17.6 | 17.85 | 9659.29 | 15000.00 | 19.1 | 22.33 | 11156.57 | 15000.00 |
| 102 | 59 | 322.0 | 14.9 | 17.85 | 11434.90 | 15000.00 | 16.1 | 22.33 | 13207.41 | 15000.00 |
| 102 | 59 | 374.0 | 12.8 | 17.85 | 13281.53 | 15000.00 | 13.9 | 22.33 | 15000.00 | 15000.00 |
| 102 | 59 | 443.0 | 10.8 | 17.85 | 15000.00 | 15000.00 | 11.7 | 22.33 | 15000.00 | 15000.00 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 24V-3000RPM Input | 24V-4000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 102 | 73 | 23.0 | 104.3 | 9.19 | 841.51 | 2524.54 | 139.1 | 14.02 | 962.07 | 2886.20 |
| 102 | 73 | 31.5 | 76.2 | 9.19 | 1152.51 | 3457.53 | 101.6 | 14.02 | 1317.61 | 3952.84 |
| 102 | 73 | 57.0 | 42.1 | 9.19 | 2085.49 | 6256.48 | 56.1 | 14.02 | 2384.25 | 7152.76 |
| 102 | 73 | 80.0 | 30.0 | 9.19 | 2927.01 | 8781.02 | 40.0 | 14.02 | 3346.32 | 10038.96 |
| 102 | 73 | 108.0 | 22.2 | 9.19 | 3951.46 | 11854.38 | 29.6 | 14.02 | 4517.53 | 13552.60 |
| 102 | 73 | 127.0 | 18.9 | 9.19 | 4646.63 | 13939.88 | 25.2 | 14.02 | 5312.28 | 15000.00 |
| 102 | 59 | 198.0 | 12.1 | 7.43 | 5855.02 | 15000.00 | 16.2 | 11.33 | 6693.79 | 15000.00 |
| 102 | 59 | 234.0 | 10.3 | 7.43 | 6919.57 | 15000.00 | 13.7 | 11.33 | 7910.84 | 15000.00 |
| 102 | 59 | 272.0 | 8.8 | 7.43 | 8043.26 | 15000.00 | 11.8 | 11.33 | 9195.50 | 15000.00 |
| 102 | 59 | 322.0 | 7.5 | 7.43 | 9521.80 | 15000.00 | 9.9 | 11.33 | 10885.85 | 15000.00 |
| 102 | 59 | 374.0 | 6.4 | 7.43 | 11059.48 | 15000.00 | 8.6 | 11.33 | 12643.82 | 15000.00 |
| 102 | 59 | 443.0 | 5.4 | 7.43 | 13099.86 | 15000.00 | 7.2 | 11.33 | 14976.50 | 15000.00 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 24V-5000RPM Input | 24V-6000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 102 | 73 | 23.0 | 173.9 | 18.45 | 1013.28 | 3039.83 | 208.7 | 24.73 | 1131.48 | 3394.43 |
| 102 | 73 | 31.5 | 127.0 | 18.45 | 1387.75 | 4163.24 | 152.4 | 24.73 | 1549.63 | 4648.90 |
| 102 | 73 | 57.0 | 70.2 | 18.45 | 2511.16 | 7533.49 | 84.2 | 24.73 | 2804.10 | 8412.29 |
| 102 | 73 | 80.0 | 50.0 | 18.45 | 3524.44 | 10573.32 | 60.0 | 24.73 | 3935.58 | 11806.73 |
| 102 | 73 | 108.0 | 37.0 | 18.45 | 4757.99 | 14273.98 | 44.4 | 24.73 | 5313.03 | 15000.00 |
| 102 | 73 | 127.0 | 31.5 | 18.45 | 5595.05 | 15000.00 | 37.8 | 24.73 | 6247.73 | 15000.00 |
| 102 | 59 | 198.0 | 20.2 | 14.91 | 7050.09 | 15000.00 | 24.2 | 19.98 | 7872.50 | 15000.00 |
| 102 | 59 | 234.0 | 17.1 | 14.91 | 8331.92 | 15000.00 | 20.5 | 19.98 | 9303.86 | 15000.00 |
| 102 | 59 | 272.0 | 14.7 | 14.91 | 9684.97 | 15000.00 | 17.6 | 19.98 | 10814.75 | 15000.00 |
| 102 | 59 | 322.0 | 12.4 | 14.91 | 11465.29 | 15000.00 | 14.9 | 19.98 | 12802.75 | 15000.00 |
| 102 | 59 | 374.0 | 10.7 | 14.91 | 13316.83 | 15000.00 | 12.8 | 19.98 | 14870.28 | 15000.00 |
| 102 | 59 | 443.0 | 9.0 | 14.91 | 15000.00 | 15000.00 | 10.8 | 19.98 | 15000.00 | 15000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
