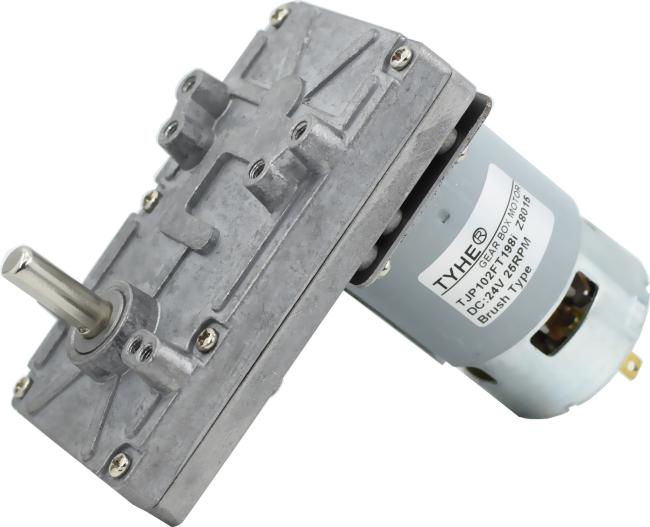

102*60mm PMDC DC Flat Gear Motor 24V RS 775 12V DC Motor Double Shaft
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Speed Adjustable 102*60mm Size 12v 24v Rs-775 Motor Double Shaft PMDC Dc Flat Gear Box Motors

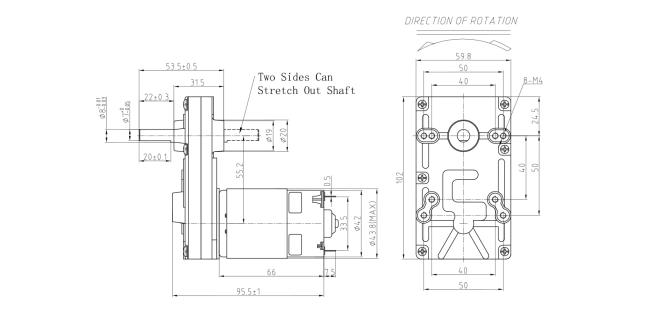

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS775 | 12 | 5000 | 580 | 4000 | 1.77 | 31.60 | 13.24 | 62.31 | 94.80 | 10.80 |
| RS775 | 12 | 7000 | 760 | 5600 | 2.81 | 38.00 | 22.28 | 66.16 | 114.00 | 20.00 |
| RS775 | 24 | 3500 | 160 | 2800 | 0.59 | 29.50 | 8.65 | 61.08 | 88.50 | 4.20 |
| RS775 | 24 | 5000 | 230 | 4000 | 0.84 | 31.00 | 12.98 | 64.15 | 93.00 | 5.98 |
| RS775 | 24 | 5500 | 260 | 4400 | 0.96 | 31.50 | 14.51 | 63.21 | 94.50 | 6.80 |
| RS775 | 24 | 6500 | 400 | 5200 | 1.46 | 41.00 | 22.32 | 63.78 | 123.00 | 10.30 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 12V-5000RPM Input | 12V-7000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 102 | 73 | 23.0 | 173.9 | 9.66 | 530.56 | 1591.69 | 243.5 | 16.27 | 638.02 | 1914.06 |
| 102 | 73 | 31.5 | 127.0 | 9.66 | 726.64 | 2179.93 | 177.8 | 16.27 | 873.81 | 2621.43 |
| 102 | 73 | 57.0 | 70.2 | 9.66 | 1314.88 | 3944.63 | 98.2 | 16.27 | 1581.18 | 4743.54 |
| 102 | 73 | 80.0 | 50.0 | 9.66 | 1845.44 | 5536.32 | 70.0 | 16.27 | 2219.20 | 6657.60 |
| 102 | 73 | 108.0 | 37.0 | 9.66 | 2491.34 | 7474.03 | 51.9 | 16.27 | 2995.92 | 8987.76 |
| 102 | 73 | 127.0 | 31.5 | 9.66 | 2929.64 | 8788.91 | 44.1 | 16.27 | 3522.98 | 10568.94 |
| 102 | 59 | 198.0 | 20.2 | 7.81 | 3691.51 | 11074.54 | 28.3 | 13.15 | 4439.16 | 13317.48 |
| 102 | 59 | 234.0 | 17.1 | 7.81 | 4362.70 | 13088.09 | 23.9 | 13.15 | 5246.28 | 15000.00 |
| 102 | 59 | 272.0 | 14.7 | 7.81 | 5071.17 | 15000.00 | 20.6 | 13.15 | 6098.24 | 15000.00 |
| 102 | 59 | 322.0 | 12.4 | 7.81 | 6003.37 | 15000.00 | 17.4 | 13.15 | 7219.24 | 15000.00 |
| 102 | 59 | 374.0 | 10.7 | 7.81 | 6972.86 | 15000.00 | 15.0 | 13.15 | 8385.08 | 15000.00 |
| 102 | 59 | 443.0 | 9.0 | 7.81 | 8259.29 | 15000.00 | 12.6 | 13.15 | 9932.06 | 15000.00 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 24V-3500RPM Input | 24V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 102 | 73 | 23.0 | 121.7 | 6.31 | 495.31 | 1485.92 | 173.9 | 9.48 | 520.49 | 1561.47 |
| 102 | 73 | 31.5 | 88.9 | 6.31 | 678.35 | 2035.06 | 127.0 | 9.48 | 712.85 | 2138.54 |
| 102 | 73 | 57.0 | 49.1 | 6.31 | 1227.50 | 3682.49 | 70.2 | 9.48 | 1289.91 | 3869.73 |
| 102 | 73 | 80.0 | 35.0 | 6.31 | 1722.80 | 5168.40 | 50.0 | 9.48 | 1810.40 | 5431.20 |
| 102 | 73 | 108.0 | 25.9 | 6.31 | 2325.78 | 6977.34 | 37.0 | 9.48 | 2444.04 | 7332.12 |
| 102 | 73 | 127.0 | 22.0 | 6.31 | 2734.95 | 8204.84 | 31.5 | 9.48 | 2874.01 | 8622.03 |
| 102 | 59 | 198.0 | 14.1 | 5.10 | 3446.19 | 10338.57 | 20.2 | 7.66 | 3621.42 | 10864.26 |
| 102 | 59 | 234.0 | 12.0 | 5.10 | 4072.77 | 12218.31 | 17.1 | 7.66 | 4279.86 | 12839.58 |
| 102 | 59 | 272.0 | 10.3 | 5.10 | 4734.16 | 14202.48 | 14.7 | 7.66 | 4974.88 | 14924.64 |
| 102 | 59 | 322.0 | 8.7 | 5.10 | 5604.41 | 15000.00 | 12.4 | 7.66 | 5889.38 | 15000.00 |
| 102 | 59 | 374.0 | 7.5 | 5.10 | 6509.47 | 15000.00 | 10.7 | 7.66 | 6840.46 | 15000.00 |
| 102 | 59 | 443.0 | 6.3 | 5.10 | 7710.42 | 15000.00 | 9.0 | 7.66 | 8102.47 | 15000.00 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 24V-5500RPM Input | 24V-6500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 102 | 73 | 23.0 | 191.3 | 10.59 | 528.89 | 1586.66 | 226.1 | 16.30 | 688.39 | 2065.17 |
| 102 | 73 | 31.5 | 139.7 | 10.59 | 724.34 | 2173.03 | 165.1 | 16.30 | 942.80 | 2828.39 |
| 102 | 73 | 57.0 | 77.2 | 10.59 | 1310.72 | 3932.15 | 91.2 | 16.30 | 1706.01 | 5118.03 |
| 102 | 73 | 80.0 | 55.0 | 10.59 | 1839.60 | 5518.80 | 65.0 | 16.30 | 2394.40 | 7183.20 |
| 102 | 73 | 108.0 | 40.7 | 10.59 | 2483.46 | 7450.38 | 48.1 | 16.30 | 3232.44 | 9697.32 |
| 102 | 73 | 127.0 | 34.6 | 10.59 | 2920.37 | 8761.10 | 40.9 | 16.30 | 3801.11 | 11403.33 |
| 102 | 59 | 198.0 | 22.2 | 8.56 | 3679.83 | 11039.49 | 26.3 | 13.17 | 4789.62 | 14368.86 |
| 102 | 59 | 234.0 | 18.8 | 8.56 | 4348.89 | 13046.67 | 22.2 | 13.17 | 5660.46 | 15000.00 |
| 102 | 59 | 272.0 | 16.2 | 8.56 | 5055.12 | 15000.00 | 19.1 | 13.17 | 6579.68 | 15000.00 |
| 102 | 59 | 322.0 | 13.7 | 8.56 | 5984.37 | 15000.00 | 16.1 | 13.17 | 7789.18 | 15000.00 |
| 102 | 59 | 374.0 | 11.8 | 8.56 | 6950.79 | 15000.00 | 13.9 | 13.17 | 9047.06 | 15000.00 |
| 102 | 59 | 443.0 | 9.9 | 8.56 | 8233.16 | 15000.00 | 11.7 | 13.17 | 10716.17 | 15000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
