PMDC 37mm 6v 12v 20v 24v 80 Rpm 20kg 30kg Load Permanent Magnet High Torque High Rpm 3w 5 Watt DC Gear Motor
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

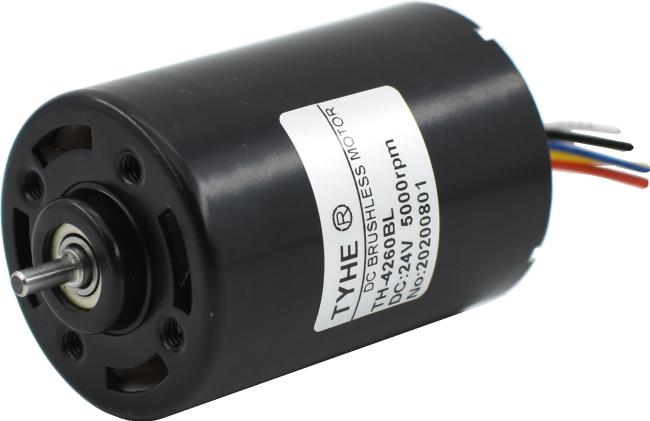

Speed Adjustable Th4260bl 6v 12v 24v 5000 Rpm High Torque Low Rpm 9.6w High Speed Brushless Dc Motor For Drill Tool

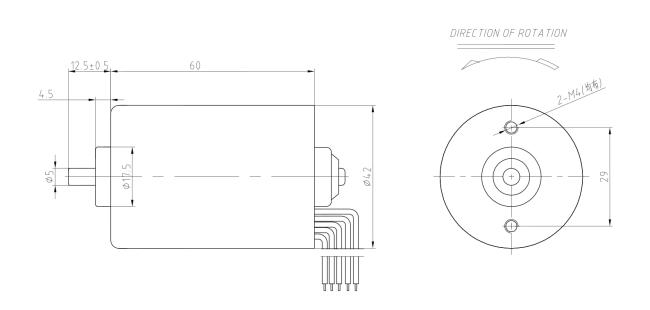

2D drawing

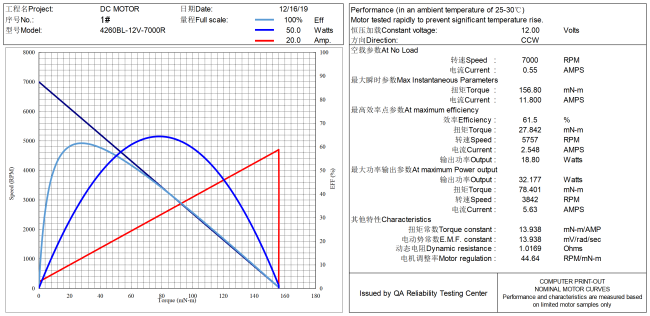

Specifications
| Model | Rated Voltage (V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output Power | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| 4260BL | 12 | 3000 | 230 | 2400 | 0.90 | 27.50 | 6.91 | 64.13 | 82.50 | 5.53 |
| 4260BL | 12 | 7000 | 500 | 5600 | 2.00 | 27.40 | 16.07 | 66.95 | 82.20 | 12.50 |
| 4260BL | 24 | 3000 | 110 | 2400 | 0.44 | 28.30 | 7.11 | 67.35 | 84.90 | 2.75 |
| 4260BL | 24 | 5000 | 190 | 4000 | 0.76 | 28.50 | 11.94 | 65.45 | 85.50 | 4.75 |
| 4260BL | 24 | 7000 | 250 | 5600 | 1.00 | 28.30 | 16.59 | 69.14 | 84.90 | 6.25 |
Please let us know your requirements and we will provide you with transmission solutions.
