Low Noise Small 37mm Gearbox High Torque 3000rpm 12v 24v 12v24v Magnetic 30w 20 Watt 25 Watt 20kg Load Dc Gear Motor
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

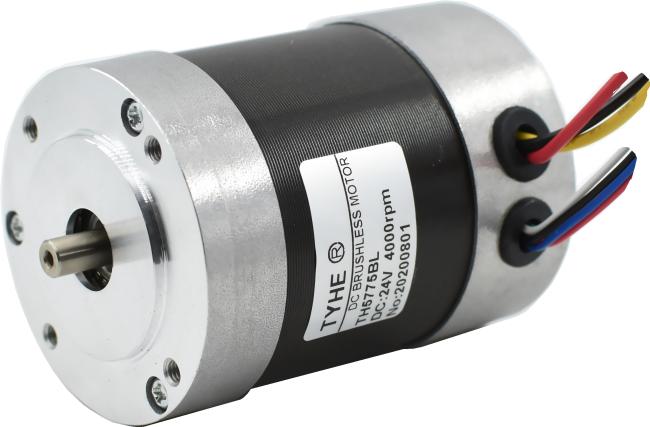

High Power 5775BL 24v 85 Watt 120watts 100w 100 Watt 5000 Rpm 4000rpm 12 24 Volt Brushless Dc Motor With Ce Rohs

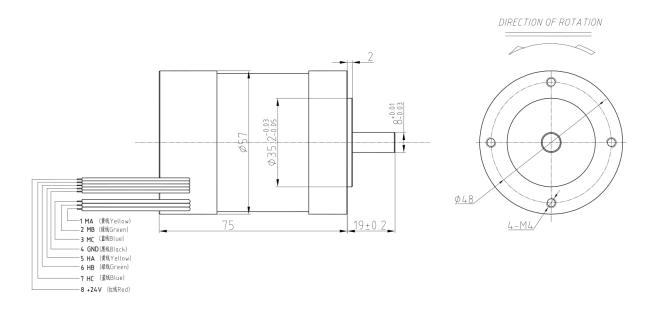

2D drawing
Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| 5775BL | 24 | 4000 | 650 | 3200 | 3.23 | 150.42 | 50.40 | 65.12 | 451.26 | 27.00 | |||||||||
| 5775BL | 24 | 5100 | 850 | 4080 | 4.50 | 166.35 | 71.07 | 65.80 | 499.05 | 38.70 | |||||||||
| 5775BL | 12 | 5100 | 1800 | 4080 | 8.89 | 167.50 | 71.56 | 67.07 | 502.50 | 74.30 | |||||||||
Please let us know your requirements and we will provide you with transmission solutions.
