Manufacturer OD 37mm gearbox 12v 24v 6w low rpm 2rpm to 100rpm high torque 15kgf 15kgcm brushless dc geared motor
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

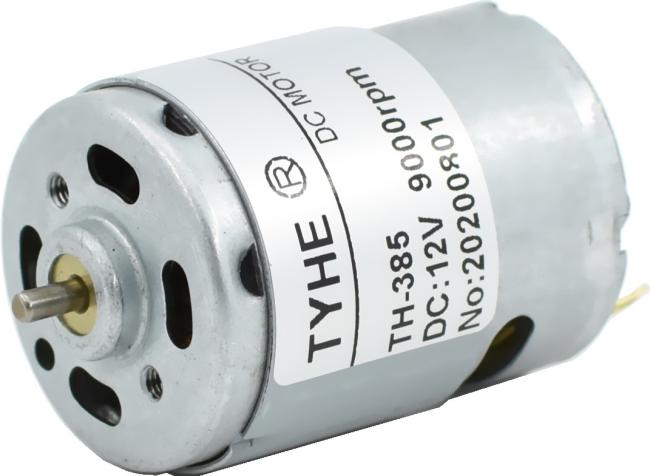

Factory Goods 12v 14.4v 10 Watt High Speed 14000 Rpm 15000 Rpm High Power Rs385 Dc Motor For Electraflow

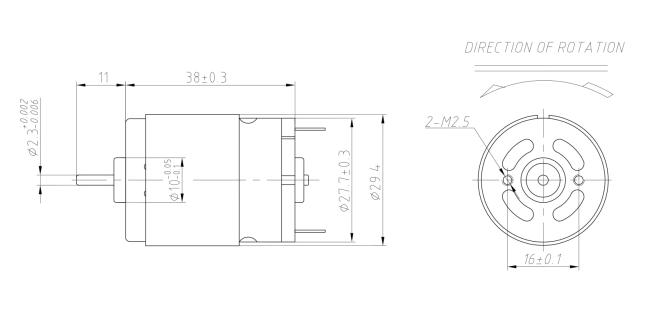

2D drawing

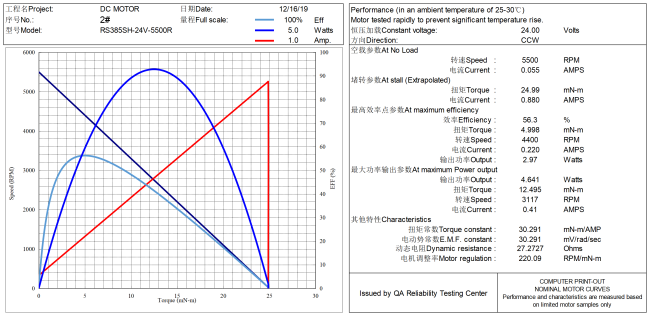

Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| RS385 | 12 | 5500 | 140 | 4400 | 0.30 | 5.03 | 2.32 | 64.37 | 15.09 | 1.08 | |||||||||
| RS385 | 12 | 8800 | 205 | 7040 | 0.64 | 6.50 | 4.79 | 62.31 | 19.50 | 4.00 | |||||||||
| RS385 | 12 | 20000 | 320 | 16000 | 1.73 | 8.10 | 13.57 | 65.37 | 24.30 | 15.00 | |||||||||
| RS385 | 24 | 5500 | 55 | 4400 | 0.15 | 5.10 | 2.35 | 64.20 | 15.30 | 0.84 | |||||||||
Please let us know your requirements and we will provide you with transmission solutions.
