Micro 37mm rs550 low rpm high torque 12v 24v 6 volt 450 rpm 15 watt 20kg cm dc gear motor for electric curtain
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

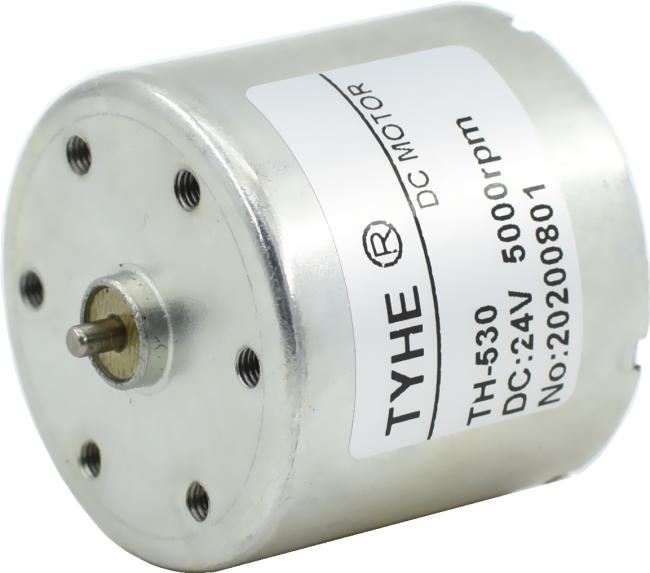

Factory Price 12v 24v 30 Volt 3000 Rpm 5000 Rpm High Speed Rs530 Dc Motor For Smart Home

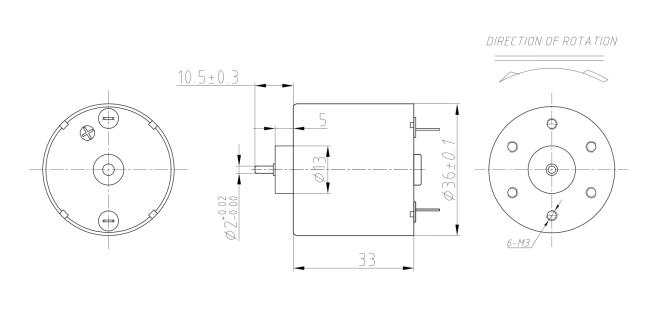

2D drawing

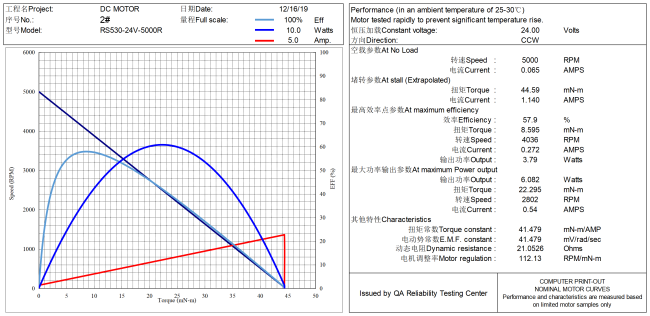

Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| RS530 | 12 | 3500 | 60 | 2800 | 0.21 | 5.30 | 1.55 | 61.91 | 15.90 | 1.43 | |||||||||
| RS530 | 12 | 5000 | 160 | 4000 | 0.49 | 8.90 | 3.73 | 62.86 | 26.70 | 3.05 | |||||||||
| RS530 | 12 | 6000 | 135 | 4800 | 0.68 | 9.90 | 4.98 | 61.20 | 29.70 | 5.7 | |||||||||
| RS530 | 12 | 6500 | 120 | 5200 | 0.70 | 9.80 | 5.34 | 63.83 | 29.40 | 6.2 | |||||||||
| RS530 | 12 | 7500 | 160 | 6000 | 0.80 | 9.50 | 5.97 | 62.30 | 28.50 | 6.7 | |||||||||
| RS530 | 24 | 3500 | 35 | 2800 | 0.12 | 5.90 | 1.73 | 62.68 | 17.70 | 0.75 | |||||||||
| RS530 | 24 | 5000 | 80 | 4000 | 0.25 | 9.12 | 3.82 | 62.83 | 27.36 | 1.6 | |||||||||
| RS530 | 24 | 7500 | 72 | 6000 | 0.37 | 9.25 | 5.81 | 64.63 | 27.75 | 3.2 | |||||||||
Please let us know your requirements and we will provide you with transmission solutions.
