37gb 10kg Cm 1.5 Nm 12v 18v 24v Rs-555 20 Rpm 15w Dc Metal Gear Motor With Encoder For Sling Automatic Baby Cradle
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

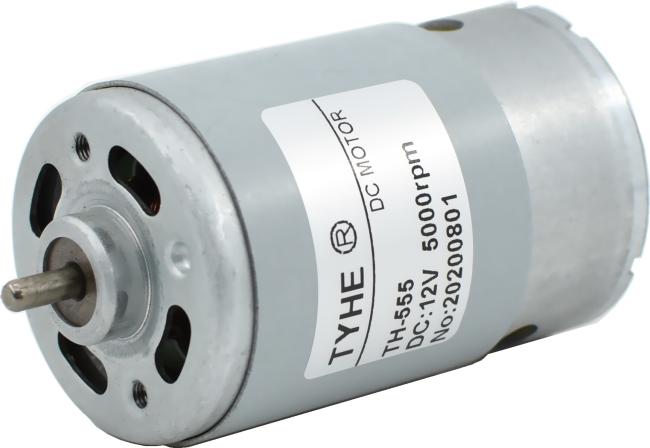

Custom Od36mm 12v 12 24 Volt 5000rpm 16000rpm High Speed RS555 Dc Carbon Brush Motor For Home Appliance

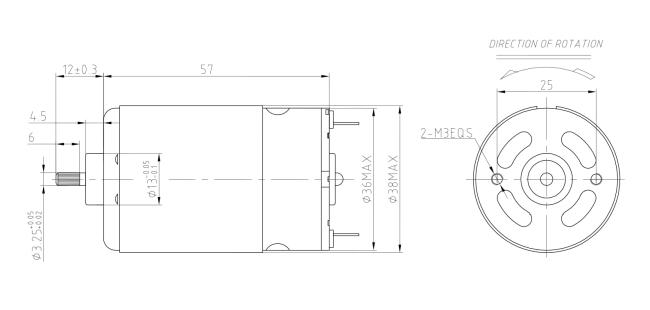

2D drawing

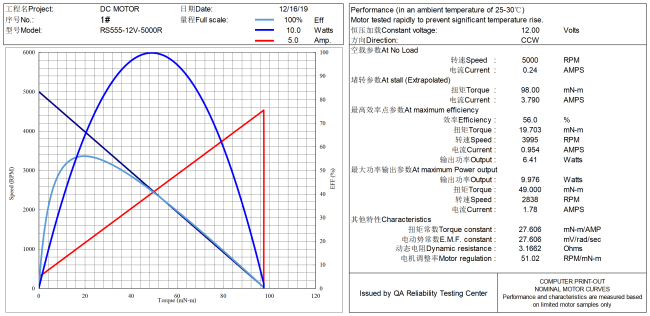

Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Curren | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| RS555 | 6 | 6000 | 560 | 4800 | 1.92 | 14.20 | 7.14 | 61.85 | 42.60 | 13.00 | |||||||||
| RS555 | 12 | 3000 | 110 | 2400 | 0.42 | 12.30 | 3.09 | 62.07 | 36.90 | 3.00 | |||||||||
| RS555 | 12 | 5000 | 240 | 4000 | 0.93 | 16.80 | 7.04 | 63.28 | 50.40 | 6.80 | |||||||||
| RS555 | 12 | 5700 | 290 | 4560 | 1.07 | 17.20 | 8.21 | 63.81 | 51.60 | 7.65 | |||||||||
| RS555 | 12 | 6500 | 310 | 5200 | 1.42 | 19.50 | 10.62 | 62.24 | 58.50 | 11.48 | |||||||||
| RS555 | 12 | 7600 | 360 | 6080 | 1.65 | 20.10 | 12.80 | 64.69 | 60.30 | 13.30 | |||||||||
| RS555 | 12 | 9000 | 390 | 7200 | 1.79 | 18.50 | 13.95 | 64.81 | 55.50 | 14.50 | |||||||||
| RS555 | 12 | 11000 | 600 | 8800 | 2.75 | 22.30 | 20.55 | 62.27 | 66.90 | 22.20 | |||||||||
| RS555 | 24 | 3500 | 70 | 2800 | 0.31 | 15.80 | 4.63 | 61.60 | 47.40 | 2.50 | |||||||||
| RS555 | 24 | 5000 | 150 | 4000 | 0.49 | 17.50 | 7.33 | 62.12 | 52.50 | 3.20 | |||||||||
| RS555 | 24 | 6000 | 160 | 4800 | 0.53 | 16.80 | 8.44 | 66.18 | 50.40 | 3.50 | |||||||||
| RS555 | 24 | 6500 | 170 | 5200 | 0.68 | 19.00 | 10.35 | 63.39 | 57.00 | 5.10 | |||||||||
| RS555 | 24 | 7600 | 220 | 6080 | 1.01 | 23.20 | 14.77 | 61.24 | 69.60 | 8.10 | |||||||||
Please let us know your requirements and we will provide you with transmission solutions.
