Low Noise Micro Diameter 37mm Gearbox 6volt 12v 24v 10kgcm 3w 4 Watt 60 Rpm High Torque Dc Brushed Spur Gear Motor
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
China Factory Direct Sales 12v 24v High Torque 775 PMDC 755 Brushed Dc Motor For Paper Shredder

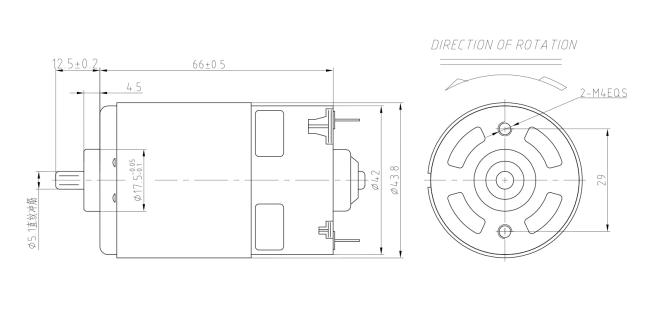

2D drawing
Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| RS775 | 12 | 5000 | 580 | 4000 | 1.77 | 31.6 | 13.24 | 62.31 | 94.80 | 10.8 | |||||||||
| RS775 | 12 | 7000 | 760 | 5600 | 2.81 | 38 | 22.28 | 66.16 | 114.00 | 20 | |||||||||
| RS775 | 12 | 10000 | 1120 | 8000 | 3.76 | 34 | 28.48 | 63.07 | 102.00 | 25 | |||||||||
| RS775 | 24 | 3500 | 160 | 2800 | 0.59 | 29.5 | 8.65 | 61.08 | 88.50 | 4.2 | |||||||||
| RS775 | 24 | 5000 | 230 | 4000 | 0.84 | 31 | 12.98 | 64.15 | 93.00 | 5.98 | |||||||||
| RS775 | 24 | 6500 | 400 | 5200 | 1.46 | 41 | 22.32 | 63.78 | 123.00 | 10.3 | |||||||||
Please let us know your requirements and we will provide you with transmission solutions.
