38mm Diameter 12V 17V 24V DC Motor High Torque High Speed 3000rpm
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

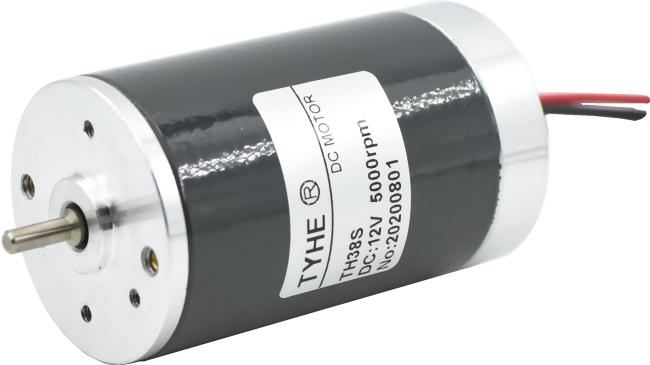

Customizable 38mm Diameter 12v 17v 24v High Speed High Torque 3000rpm Tubular Permanent Magnet Brushed Dc Motor
2D drawing

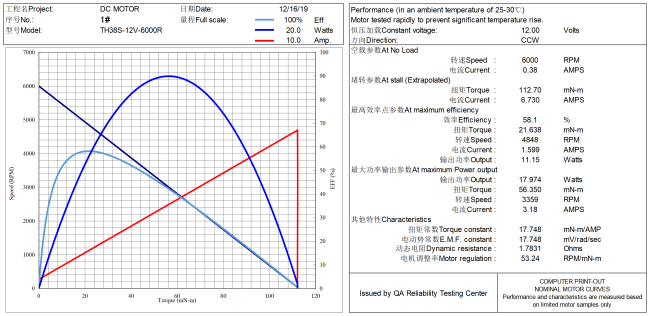

Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| TH38S | 12 | 4500 | 250 | 3600 | 0.95 | 19.50 | 7.35 | 64.82 | 58.50 | 5.70 | |||||||||
| TH38S | 12 | 5000 | 300 | 4000 | 1.10 | 19.70 | 8.25 | 62.51 | 59.10 | 6.50 | |||||||||
| TH38S | 12 | 5700 | 340 | 4560 | 1.22 | 19.80 | 9.45 | 64.37 | 59.40 | 7.14 | |||||||||
| TH38S | 12 | 6000 | 380 | 4800 | 1.37 | 20.30 | 10.20 | 62.15 | 60.90 | 7.98 | |||||||||
| TH38S | 24 | 3200 | 80 | 2560 | 0.25 | 14.30 | 3.83 | 63.89 | 42.90 | 1.30 | |||||||||
| TH38S | 24 | 4000 | 120 | 3200 | 0.40 | 17.90 | 6.00 | 62.48 | 53.70 | 2.20 | |||||||||
| TH38S | 24 | 4500 | 130 | 3600 | 0.46 | 18.20 | 6.86 | 62.83 | 54.60 | 2.60 | |||||||||
| TH38S | 24 | 5000 | 160 | 4000 | 0.55 | 19.50 | 8.17 | 61.88 | 58.50 | 3.10 | |||||||||
| TH38S | 24 | 6000 | 220 | 4800 | 0.86 | 24.70 | 12.41 | 60.29 | 74.10 | 5.28 | |||||||||
| TH38S | 24 | 8000 | 270 | 6400 | 1.11 | 25.00 | 16.75 | 63.06 | 75.00 | 7.02 | |||||||||
| TH38S | 24 | 10000 | 350 | 8000 | 1.53 | 27.50 | 23.04 | 62.94 | 82.50 | 10.00 | |||||||||
Please let us know your requirements and we will provide you with transmission solutions.
