60mm*95mm 80W 90W 12V DC Motor 10000 Rpm 10A High Power
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Factory Goods 60mm Diameter 12v 80w 90w 10000 Rpm 10a High Power Brushed Dc Motor

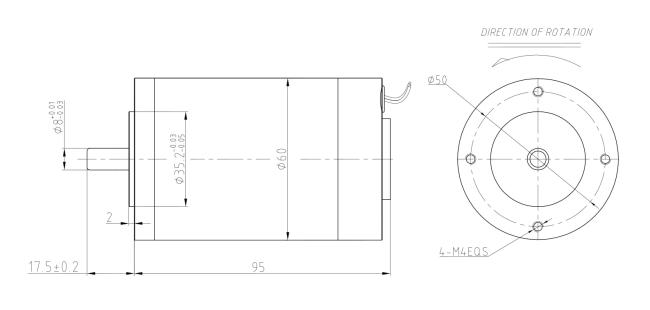

2D drawing

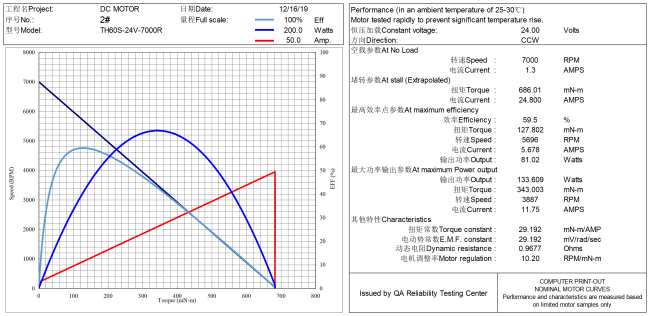

Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| TH60S | 24 | 5000 | 500 | 4000 | 3.50 | 125.31 | 52.49 | 62.48 | 375.93 | 33.00 | |||||||||
| TH60S | 24 | 6000 | 700 | 4800 | 4.80 | 143.54 | 72.15 | 62.63 | 430.62 | 45.00 | |||||||||
| TH60S | 24 | 7000 | 1000 | 5600 | 5.67 | 148.88 | 87.30 | 64.19 | 446.64 | 50.00 | |||||||||
Please let us know your requirements and we will provide you with transmission solutions.
