0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

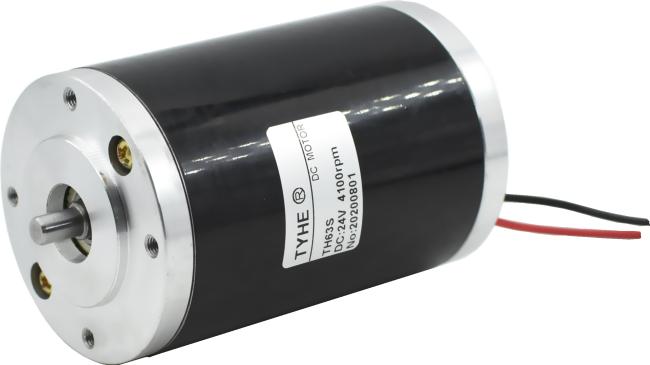

China Supplier 63mm Diameter 12v 24v 150w 200w 7000 Rpm 0.1nm Pmdc Brushed Dc Motor

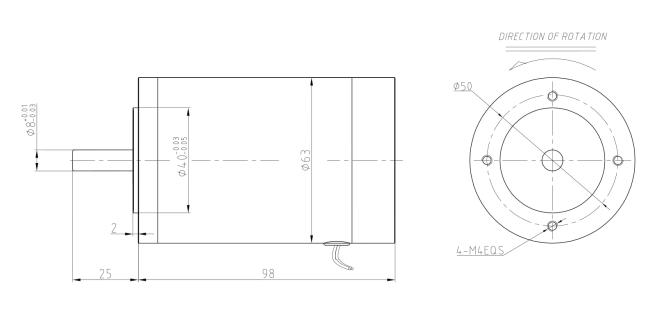

2D drawing

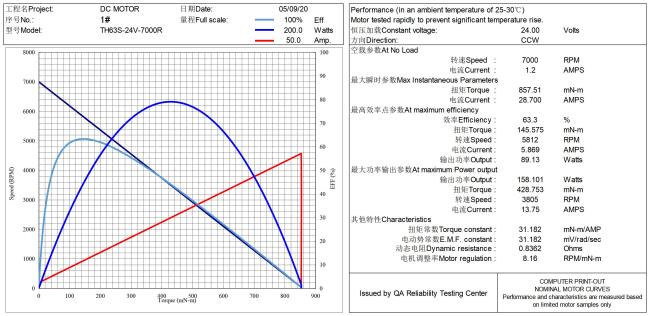

Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| TH62/63S | 24 | 5000 | 650 | 4000 | 4.39 | 160.65 | 67.29 | 63.84 | 481.95 | 41.00 | |||||||||
| TH62/63S | 24 | 6000 | 800 | 4800 | 5.66 | 175.35 | 88.13 | 64.90 | 526.05 | 53.50 | |||||||||
| TH62/63S | 24 | 7000 | 1200 | 5600 | 6.78 | 177.53 | 104.10 | 63.98 | 532.59 | 59.75 | |||||||||
Please let us know your requirements and we will provide you with transmission solutions.
