Rs 775 Encoder Brush 5000rpm 12v 24V DC Gear Motor For Power Tools
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

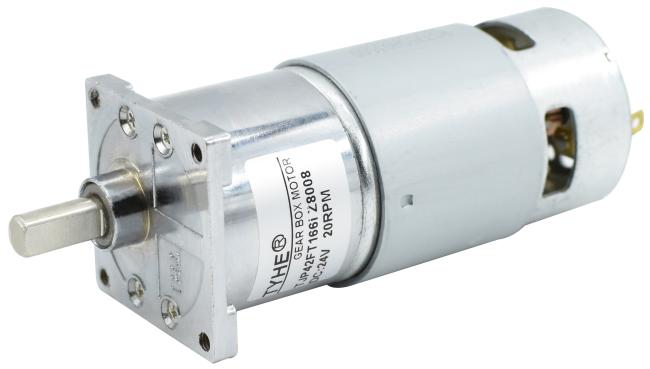

High Speed Large Torque 12v 24v 5000rpm Rs 775 Encoder Brush Dc Gear Motor For Power Tools

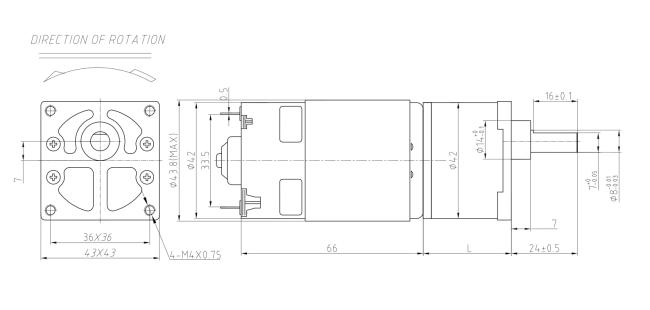

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS775 | 12 | 5000 | 580 | 4000 | 1.77 | 31.60 | 13.24 | 62.31 | 94.80 | 10.80 |
| RS775 | 12 | 7000 | 760 | 5600 | 2.81 | 38.00 | 22.28 | 66.16 | 114.00 | 20.00 |
| RS775 | 24 | 3500 | 160 | 2800 | 0.59 | 29.50 | 8.65 | 61.08 | 88.50 | 4.20 |
| RS775 | 24 | 5000 | 230 | 4000 | 0.84 | 31.00 | 12.98 | 64.15 | 93.00 | 5.98 |
| DC Motor With Gearbox Technical Data (0.7M) | ||||||||||
| Gearbox parameters | 12V-5000RPM Input | 12V-7000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.7 | 81 | 3.6 | 1111.1 | 10.72 | 92.15 | 276.44 | 1555.6 | 18.05 | 110.81 | 332.42 |
| 25.7 | 81 | 4.4 | 909.1 | 10.72 | 112.62 | 337.87 | 1272.7 | 18.05 | 135.43 | 406.30 |
| 25.7 | 81 | 5.4 | 740.7 | 10.72 | 138.22 | 414.66 | 1037.0 | 18.05 | 166.21 | 498.64 |
| 25.7 | 81 | 6.8 | 588.2 | 10.72 | 174.05 | 522.16 | 823.5 | 18.05 | 209.30 | 627.91 |
| 25.7 | 81 | 8.6 | 465.1 | 10.72 | 220.13 | 660.38 | 651.2 | 18.05 | 264.71 | 794.12 |
| 29.3 | 73 | 9.7 | 412.4 | 9.66 | 223.76 | 671.28 | 577.3 | 16.27 | 269.08 | 807.23 |
| 29.3 | 73 | 11.8 | 339.0 | 9.66 | 272.20 | 816.61 | 474.6 | 16.27 | 327.33 | 982.00 |
| 29.3 | 73 | 14.6 | 274.0 | 9.66 | 336.79 | 1010.38 | 383.6 | 16.27 | 405.00 | 1215.01 |
| 29.3 | 73 | 18.2 | 219.8 | 9.66 | 419.84 | 1259.51 | 307.7 | 16.27 | 504.87 | 1514.60 |
| 29.3 | 73 | 23.3 | 171.7 | 9.66 | 537.48 | 1612.45 | 240.3 | 16.27 | 646.34 | 1939.03 |
| 29.3 | 65.6 | 25.9 | 154.4 | 8.68 | 536.90 | 1610.69 | 216.2 | 14.62 | 645.64 | 1936.91 |
| 29.3 | 65.6 | 31.6 | 126.6 | 8.68 | 655.06 | 1965.17 | 177.2 | 14.62 | 787.72 | 2363.17 |
| 29.3 | 65.6 | 38.9 | 102.8 | 8.68 | 806.38 | 2419.14 | 144.0 | 14.62 | 969.70 | 2909.10 |
| 29.3 | 65.6 | 48.6 | 82.3 | 8.68 | 1007.46 | 3022.38 | 115.2 | 14.62 | 1211.50 | 3634.50 |
| 29.3 | 65.6 | 62.2 | 64.3 | 8.68 | 1289.38 | 3868.14 | 90.0 | 14.62 | 1550.52 | 4651.56 |
| 32.6 | 59 | 69.1 | 57.9 | 7.81 | 1288.30 | 3864.90 | 81.0 | 13.15 | 1549.22 | 4647.67 |
| 32.6 | 59 | 84.2 | 47.5 | 7.81 | 1569.82 | 4709.47 | 66.5 | 13.15 | 1887.76 | 5000.00 |
| 32.6 | 59 | 104 | 38.5 | 7.81 | 1938.98 | 5000.00 | 53.8 | 13.15 | 2331.68 | 5000.00 |
| 32.6 | 59 | 130 | 30.8 | 7.81 | 2423.72 | 5000.00 | 43.1 | 13.15 | 2914.60 | 5000.00 |
| 32.6 | 59 | 164 | 24.4 | 7.81 | 3057.62 | 5000.00 | 34.1 | 13.15 | 3676.88 | 5000.00 |
| 32.6 | 59 | 170 | 23.5 | 7.81 | 3169.48 | 5000.00 | 32.9 | 13.15 | 3811.40 | 5000.00 |
| 36 | 53 | 184 | 21.7 | 7.01 | 3081.63 | 5000.00 | 30.4 | 11.81 | 3705.76 | 5000.00 |
| 36 | 53 | 225 | 17.8 | 7.01 | 3768.30 | 5000.00 | 24.9 | 11.81 | 4531.50 | 5000.00 |
| 36 | 53 | 276 | 14.5 | 7.01 | 4622.45 | 5000.00 | 20.3 | 11.81 | 5000.00 | 5000.00 |
| 36 | 53 | 346 | 11.6 | 7.01 | 5000.00 | 5000.00 | 16.2 | 11.81 | 5000.00 | 5000.00 |
| 36 | 53 | 442 | 9.0 | 7.01 | 5000.00 | 5000.00 | 12.7 | 11.81 | 5000.00 | 5000.00 |
| 36 | 53 | 459 | 8.7 | 7.01 | 5000.00 | 5000.00 | 12.2 | 11.81 | 5000.00 | 5000.00 |
| DC Motor With Gearbox Technical Data (0.7M) | ||||||||||
| Gearbox parameters | 24V-3500RPM Input | 24V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.7 | 81 | 3.6 | 777.8 | 7.01 | 86.02 | 258.07 | 1111.1 | 10.52 | 90.40 | 271.19 |
| 25.7 | 81 | 4.4 | 636.4 | 7.01 | 105.14 | 315.41 | 909.1 | 10.52 | 110.48 | 331.45 |
| 25.7 | 81 | 5.4 | 518.5 | 7.01 | 129.03 | 387.10 | 740.7 | 10.52 | 135.59 | 406.78 |
| 25.7 | 81 | 6.8 | 411.8 | 7.01 | 162.49 | 487.46 | 588.2 | 10.52 | 170.75 | 512.24 |
| 25.7 | 81 | 8.6 | 325.6 | 7.01 | 205.50 | 616.49 | 465.1 | 10.52 | 215.95 | 647.84 |
| 29.3 | 73 | 9.7 | 288.7 | 6.31 | 208.89 | 626.67 | 412.4 | 9.48 | 219.51 | 658.53 |
| 29.3 | 73 | 11.8 | 237.3 | 6.31 | 254.11 | 762.34 | 339.0 | 9.48 | 267.03 | 801.10 |
| 29.3 | 73 | 14.6 | 191.8 | 6.31 | 314.41 | 943.23 | 274.0 | 9.48 | 330.40 | 991.19 |
| 29.3 | 73 | 18.2 | 153.8 | 6.31 | 391.94 | 1175.81 | 219.8 | 9.48 | 411.87 | 1235.60 |
| 29.3 | 73 | 23.3 | 120.2 | 6.31 | 501.77 | 1505.30 | 171.7 | 9.48 | 527.28 | 1581.84 |
| 29.3 | 65.6 | 25.9 | 108.1 | 5.67 | 501.22 | 1503.65 | 154.4 | 8.52 | 526.70 | 1580.11 |
| 29.3 | 65.6 | 31.6 | 88.6 | 5.67 | 611.52 | 1834.57 | 126.6 | 8.52 | 642.62 | 1927.85 |
| 29.3 | 65.6 | 38.9 | 72.0 | 5.67 | 752.79 | 2258.38 | 102.8 | 8.52 | 791.07 | 2373.21 |
| 29.3 | 65.6 | 48.6 | 57.6 | 5.67 | 940.51 | 2821.52 | 82.3 | 8.52 | 988.33 | 2964.99 |
| 29.3 | 65.6 | 62.2 | 45.0 | 5.67 | 1203.69 | 3611.08 | 64.3 | 8.52 | 1264.90 | 3794.70 |
| 32.6 | 59 | 69.1 | 40.5 | 5.10 | 1202.69 | 3608.06 | 57.9 | 7.66 | 1263.84 | 3791.52 |
| 32.6 | 59 | 84.2 | 33.3 | 5.10 | 1465.50 | 4396.50 | 47.5 | 7.66 | 1540.02 | 4620.05 |
| 32.6 | 59 | 104 | 26.9 | 5.10 | 1810.12 | 5000.00 | 38.5 | 7.66 | 1902.16 | 5000.00 |
| 32.6 | 59 | 130 | 21.5 | 5.10 | 2262.65 | 5000.00 | 30.8 | 7.66 | 2377.70 | 5000.00 |
| 32.6 | 59 | 164 | 17.1 | 5.10 | 2854.42 | 5000.00 | 24.4 | 7.66 | 2999.56 | 5000.00 |
| 32.6 | 59 | 170 | 16.5 | 5.10 | 2958.85 | 5000.00 | 23.5 | 7.66 | 3109.30 | 5000.00 |
| 36 | 53 | 184 | 15.2 | 4.58 | 2876.84 | 5000.00 | 21.7 | 6.88 | 3023.12 | 5000.00 |
| 36 | 53 | 225 | 12.4 | 4.58 | 3517.88 | 5000.00 | 17.8 | 6.88 | 3696.75 | 5000.00 |
| 36 | 53 | 276 | 10.1 | 4.58 | 4315.26 | 5000.00 | 14.5 | 6.88 | 4534.68 | 5000.00 |
| 36 | 53 | 346 | 8.1 | 4.58 | 5000.00 | 5000.00 | 11.6 | 6.88 | 5000.00 | 5000.00 |
| 36 | 53 | 442 | 6.3 | 4.58 | 5000.00 | 5000.00 | 9.0 | 6.88 | 5000.00 | 5000.00 |
| 36 | 53 | 459 | 6.1 | 4.58 | 5000.00 | 5000.00 | 8.7 | 6.88 | 5000.00 | 5000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
