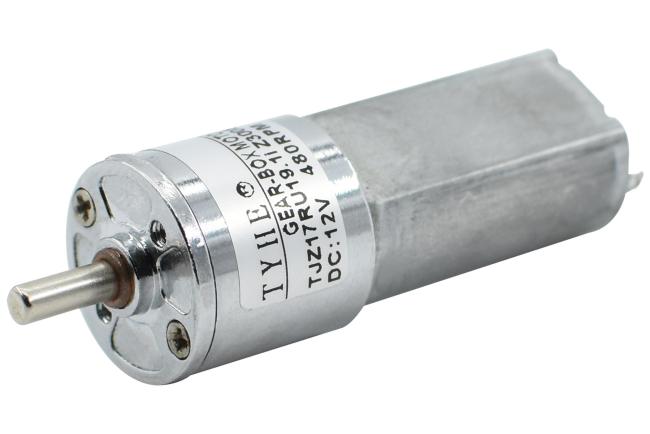

Low Noise 17mm 6v 24v DC Gear Motor With Encoder 20kgcm 1.5 Watt 60rpm 70Rpm
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Custom 17mm 3v 1.5v 6v 24v Low Noise High Torque 20kgcm 1.5 Watt 60rpm 70 Rpm Dc Geared Motor With Encoder

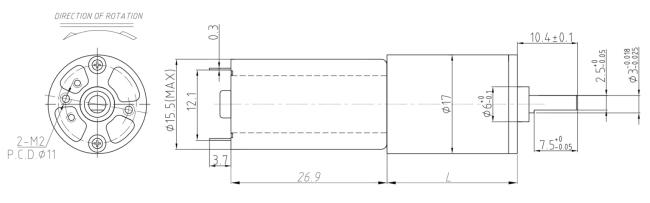

2D drawing
| Model | End cover dimensions | Motor type | Regular Shaft | Weight |
| TJZ17RU | φ17mm | FF050 | 3mm-D cut | 60g |
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| FF050 | 6 | 7500 | 65 | 6000 | 0.12 | 0.70 | 0.44 | 61.08 | 2.10 | 0.71 |
| FF050 | 3 | 5000 | 50 | 4000 | 0.08 | 0.37 | 0.15 | 64.57 | 1.11 | 0.38 |
| FF050 | 24 | 15000 | 20 | 12000 | 0.08 | 0.95 | 1.19 | 63.77 | 2.85 | 0.53 |
| DC Motor With Gearbox Technical Data (0.25M) | ||||||||||
| Gearbox parameters | 6V-7500RPM Input | 3V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 16.5 | 81 | 4.4 | 1363.6 | 0.36 | 2.49 | 7.48 | 909.1 | 0.13 | 1.32 | 3.96 |
| 16.5 | 73 | 9.1 | 659.3 | 0.32 | 4.65 | 13.95 | 439.6 | 0.11 | 2.46 | 7.37 |
| 16.5 | 65.5 | 19.1 | 314.1 | 0.29 | 8.76 | 26.27 | 209.4 | 0.10 | 4.63 | 13.89 |
| 16.5 | 59 | 40.0 | 150.0 | 0.26 | 16.52 | 49.56 | 100.0 | 0.09 | 8.73 | 26.20 |
| 18.5 | 53 | 83.5 | 71.9 | 0.23 | 30.98 | 92.94 | 47.9 | 0.08 | 16.37 | 49.12 |
| 20.5 | 47.8 | 175.0 | 34.3 | 0.21 | 58.56 | 175.67 | 22.9 | 0.07 | 30.95 | 92.85 |
| 22.5 | 43 | 365.0 | 16.4 | 0.19 | 109.87 | 329.60 | 11.0 | 0.07 | 58.07 | 174.21 |
| DC Motor With Gearbox Technical Data (0.25M) | ||||||||||
| Gearbox parameters | 24V-15000RPM Input | |||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | ||||
| 16.5 | 81 | 4.4 | 2727.3 | 0.97 | 3.39 | 10.16 | ||||
| 16.5 | 73 | 9.1 | 1318.7 | 0.87 | 6.31 | 18.93 | ||||
| 16.5 | 65.5 | 19.1 | 628.3 | 0.78 | 11.88 | 35.65 | ||||
| 16.5 | 59 | 40.0 | 300.0 | 0.70 | 22.42 | 67.26 | ||||
| 18.5 | 53 | 83.5 | 143.7 | 0.63 | 42.04 | 126.13 | ||||
| 20.5 | 47.8 | 175.0 | 68.6 | 0.57 | 79.47 | 238.40 | ||||
| 22.5 | 43 | 365.0 | 32.9 | 0.51 | 149.10 | 447.31 | ||||
Please let us know your requirements and we will provide you with transmission solutions.
