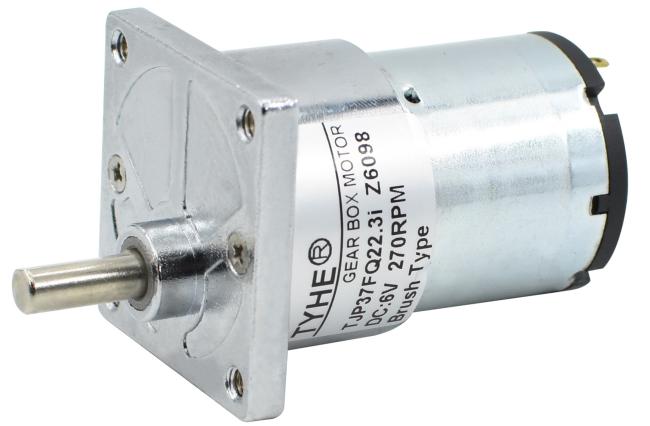

6v 24v Low Rpm 37mm Miniature Dc Gear Motor 15rpm For Led Light
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
China Factory Direct Sales Small 37mm 6v 12v 12 v 24volt 15rpm 5w 3w 5kgcm low rpm miniature Dc Gear Motor for led light
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY3330 | 6 | 6000 | 100 | 4800 | 0.30 | 2.23 | 1.12 | 62.27 | 6.69 | 1.70 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 6V-6000RPM Input | |||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | ||||
| 25.5 | 81 | 8.2 | 585.4 | 0.91 | 14.81 | 44.43 | ||||
| 25.5 | 81 | 9.5 | 505.3 | 0.91 | 17.16 | 51.48 | ||||
| 25.5 | 73 | 14.7 | 326.5 | 0.82 | 23.93 | 71.79 | ||||
| 25.5 | 73 | 22.3 | 215.2 | 0.82 | 36.30 | 108.91 | ||||
| 25.5 | 73 | 24.5 | 195.9 | 0.82 | 39.88 | 119.65 | ||||
| 27.5 | 65.6 | 27.2 | 176.5 | 0.74 | 39.79 | 119.37 | ||||
| 27.5 | 65.6 | 34.4 | 139.5 | 0.74 | 50.32 | 150.97 | ||||
| 27.5 | 65.6 | 44.5 | 107.9 | 0.74 | 65.10 | 195.29 | ||||
| 27.5 | 65.6 | 52.0 | 92.3 | 0.74 | 76.07 | 228.21 | ||||
| 27.5 | 65.6 | 57.0 | 84.2 | 0.74 | 83.38 | 250.15 | ||||
| 27.5 | 65.6 | 63.0 | 76.2 | 0.74 | 92.16 | 276.48 | ||||
| 29.5 | 59 | 80.3 | 59.8 | 0.66 | 105.65 | 316.95 | ||||
| 29.5 | 59 | 104.0 | 46.2 | 0.66 | 136.83 | 410.50 | ||||
| 29.5 | 59 | 121.0 | 39.7 | 0.66 | 159.20 | 477.60 | ||||
| 29.5 | 59 | 134.0 | 35.8 | 0.66 | 176.30 | 528.91 | ||||
| 29.5 | 59 | 147.0 | 32.7 | 0.66 | 193.41 | 580.22 | ||||
| 29.5 | 59 | 162.0 | 29.6 | 0.66 | 213.14 | 639.43 | ||||
| 32.5 | 53 | 187.0 | 25.7 | 0.59 | 221.02 | 663.05 | ||||
| 32.5 | 53 | 242.0 | 19.8 | 0.59 | 286.02 | 858.06 | ||||
| 32.5 | 53 | 283.0 | 17.0 | 0.59 | 334.48 | 1003.43 | ||||
| 32.5 | 53 | 312.0 | 15.4 | 0.59 | 368.75 | 1106.26 | ||||
| 32.5 | 53 | 344.0 | 14.0 | 0.59 | 406.57 | 1219.72 | ||||
| 32.5 | 53 | 379.0 | 12.7 | 0.59 | 447.94 | 1343.82 | ||||
| 32.5 | 53 | 417.0 | 11.5 | 0.59 | 492.85 | 1478.56 | ||||
| 35.5 | 47.8 | 437.0 | 11.0 | 0.54 | 465.82 | 1397.45 | ||||
| 35.5 | 47.8 | 565.0 | 8.5 | 0.54 | 602.26 | 1806.77 | ||||
| 35.5 | 47.8 | 660.0 | 7.3 | 0.54 | 703.52 | 2110.56 | ||||
| 35.5 | 47.8 | 728.0 | 6.6 | 0.54 | 776.00 | 2328.01 | ||||
| 35.5 | 47.8 | 802.0 | 6.0 | 0.54 | 854.88 | 2500.00 | ||||
| 35.5 | 47.8 | 884.0 | 5.4 | 0.54 | 942.29 | 2500.00 | ||||
| 35.5 | 47.8 | 974.0 | 4.9 | 0.54 | 1038.23 | 2500.00 | ||||
| 35.5 | 47.8 | 1073.0 | 4.5 | 0.54 | 1143.75 | 2500.00 | ||||
| 32.5 | 43 | 1540.0 | 3.1 | 0.48 | 1476.71 | 2500.00 | ||||
| 32.5 | 43 | 1698.0 | 2.8 | 0.48 | 1628.21 | 2500.00 | ||||
| 32.5 | 43 | 1871.0 | 2.6 | 0.48 | 1794.10 | 2500.00 | ||||
| 32.5 | 43 | 2062.0 | 2.3 | 0.48 | 1977.25 | 2500.00 | ||||
| 32.5 | 43 | 2272.0 | 2.1 | 0.48 | 2178.62 | 2500.00 | ||||

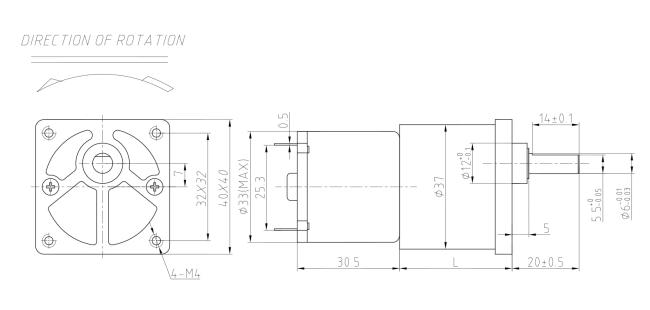

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
