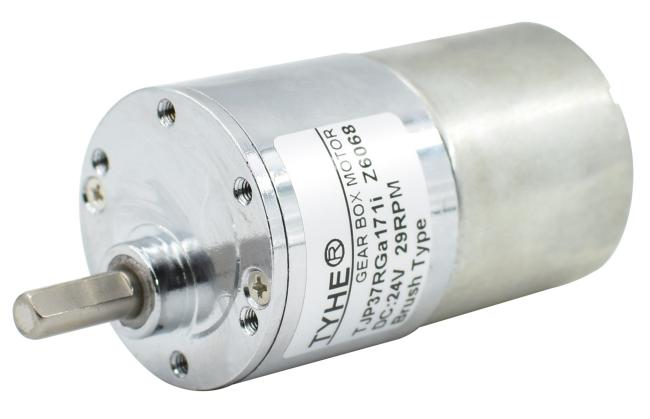

37mm Gearbox 5 Watt DC Gear Reduction Motor 12V 24v 15RPM High Torque
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
High Torque 37mm Diameter Gearbox 6v 12V 24v 15RPM Low Speed High Torque 10kgcm 5 Watt DC Gear Reduction Motor
Products Description
High Torque 37mm Diameter Gearbox 6v 12V 24v 15RPM Low Speed High Torque 10kgcm 5 watt Micro Electric DC Gear Reduction Motor
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS530 | 12 | 3500 | 60 | 2800 | 0.21 | 5.30 | 1.55 | 61.91 | 15.90 | 1.43 |
| RS530 | 12 | 5000 | 160 | 4000 | 0.49 | 8.90 | 3.73 | 62.86 | 26.70 | 3.05 |
| RS530 | 12 | 7500 | 160 | 6000 | 0.80 | 9.50 | 5.97 | 62.30 | 28.50 | 6.70 |
| RS530 | 24 | 5000 | 80 | 4000 | 0.25 | 9.12 | 3.82 | 62.83 | 27.36 | 1.60 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-3500RPM Input | 12V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 6.5 | 430.8 | 1.26 | 27.90 | 83.71 | 615.4 | 3.02 | 46.86 | 140.58 |
| 22.5 | 81 | 7.6 | 368.4 | 1.26 | 32.63 | 97.88 | 526.3 | 3.02 | 54.79 | 164.37 |
| 22.5 | 73 | 9.3 | 301.1 | 1.13 | 35.98 | 107.95 | 430.1 | 2.72 | 60.42 | 181.27 |
| 22.5 | 73 | 11.8 | 237.3 | 1.13 | 45.65 | 136.96 | 339.0 | 2.72 | 76.66 | 229.99 |
| 22.5 | 73 | 15.2 | 184.2 | 1.13 | 58.81 | 176.43 | 263.2 | 2.72 | 98.75 | 296.26 |
| 22.5 | 73 | 20.4 | 137.3 | 1.13 | 78.93 | 236.78 | 196.1 | 2.72 | 132.54 | 397.62 |
| 24.5 | 65.6 | 27.5 | 101.8 | 1.02 | 95.61 | 286.84 | 145.5 | 2.45 | 160.56 | 481.67 |
| 24.5 | 65.6 | 35.6 | 78.7 | 1.02 | 123.77 | 371.32 | 112.4 | 2.45 | 207.85 | 623.54 |
| 24.5 | 65.6 | 41.6 | 67.3 | 1.02 | 144.63 | 433.90 | 96.2 | 2.45 | 242.88 | 728.63 |
| 24.5 | 65.6 | 57.7 | 48.5 | 1.02 | 200.61 | 601.83 | 69.3 | 2.45 | 336.88 | 1010.63 |
| 26.5 | 59 | 73.4 | 38.1 | 0.92 | 229.52 | 688.57 | 54.5 | 2.20 | 385.42 | 1156.27 |
| 26.5 | 59 | 83 | 33.7 | 0.92 | 259.54 | 778.62 | 48.2 | 2.20 | 435.83 | 1307.50 |
| 26.5 | 59 | 97 | 28.9 | 0.92 | 303.32 | 909.96 | 41.2 | 2.20 | 509.35 | 1528.04 |
| 26.5 | 59 | 111 | 25.2 | 0.92 | 347.10 | 1041.29 | 36.0 | 2.20 | 582.86 | 1748.58 |
| 26.5 | 59 | 119 | 23.5 | 0.92 | 372.11 | 1116.34 | 33.6 | 2.20 | 624.87 | 1874.61 |
| 26.5 | 59 | 130 | 21.5 | 0.92 | 406.51 | 1219.53 | 30.8 | 2.20 | 682.63 | 2047.89 |
| 29.5 | 53 | 194 | 14.4 | 0.82 | 544.95 | 1634.84 | 20.6 | 1.98 | 915.10 | 2500.00 |
| 29.5 | 53 | 226 | 12.4 | 0.82 | 634.83 | 1904.50 | 17.7 | 1.98 | 1066.04 | 2500.00 |
| 29.5 | 53 | 259 | 10.8 | 0.82 | 727.53 | 2182.59 | 15.4 | 1.98 | 1221.70 | 2500.00 |
| 29.5 | 53 | 277 | 10.1 | 0.82 | 778.09 | 2334.28 | 14.4 | 1.98 | 1306.61 | 2500.00 |
| 29.5 | 53 | 303 | 9.2 | 0.82 | 851.13 | 2500.00 | 13.2 | 1.98 | 1429.25 | 2500.00 |
| 29.5 | 53 | 316 | 8.9 | 0.82 | 887.64 | 2500.00 | 12.7 | 1.98 | 1490.57 | 2500.00 |
| 29.5 | 53 | 346 | 8.1 | 0.82 | 971.91 | 2500.00 | 11.6 | 1.98 | 1632.08 | 2500.00 |
| 29.5 | 53 | 382 | 7.3 | 0.82 | 1073.04 | 2500.00 | 10.5 | 1.98 | 1801.89 | 2500.00 |
| 32.5 | 47.8 | 452 | 6.2 | 0.74 | 1145.10 | 2500.00 | 8.8 | 1.78 | 1922.90 | 2500.00 |
| 32.5 | 47.8 | 528 | 5.3 | 0.74 | 1337.64 | 2500.00 | 7.6 | 1.78 | 2246.22 | 2500.00 |
| 32.5 | 47.8 | 604 | 4.6 | 0.74 | 1530.17 | 2500.00 | 6.6 | 1.78 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 665 | 4.2 | 0.74 | 1684.71 | 2500.00 | 6.0 | 1.78 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 733 | 3.8 | 0.74 | 1856.98 | 2500.00 | 5.5 | 1.78 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 808 | 3.5 | 0.74 | 2046.99 | 2500.00 | 5.0 | 1.78 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 890 | 3.1 | 0.74 | 2254.73 | 2500.00 | 4.5 | 1.78 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1232 | 2.3 | 0.67 | 2500.00 | 2500.00 | 3.2 | 1.60 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1408 | 2.0 | 0.67 | 2500.00 | 2500.00 | 2.8 | 1.60 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1552 | 1.8 | 0.67 | 2500.00 | 2500.00 | 2.6 | 1.60 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1711 | 1.6 | 0.67 | 2500.00 | 2500.00 | 2.3 | 1.60 | 2500.00 | 2500.00 |
| 32.5 | 43 | 2077 | 1.3 | 0.67 | 2500.00 | 2500.00 | 1.9 | 1.60 | 2500.00 | 2500.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-7500RPM Input | 24V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 6.5 | 923.1 | 4.83 | 50.02 | 150.05 | 615.4 | 3.09 | 48.02 | 144.05 |
| 22.5 | 81 | 7.6 | 789.5 | 4.83 | 58.48 | 175.45 | 526.3 | 3.09 | 56.14 | 168.43 |
| 22.5 | 73 | 9.3 | 645.2 | 4.36 | 64.50 | 193.49 | 430.1 | 2.79 | 61.92 | 185.75 |
| 22.5 | 73 | 11.8 | 508.5 | 4.36 | 81.83 | 245.50 | 339.0 | 2.79 | 78.56 | 235.68 |
| 22.5 | 73 | 15.2 | 394.7 | 4.36 | 105.41 | 316.24 | 263.2 | 2.79 | 101.20 | 303.59 |
| 22.5 | 73 | 20.4 | 294.1 | 4.36 | 141.47 | 424.42 | 196.1 | 2.79 | 135.82 | 407.45 |
| 24.5 | 65.6 | 27.5 | 218.2 | 3.92 | 171.38 | 514.14 | 145.5 | 2.51 | 164.52 | 493.57 |
| 24.5 | 65.6 | 35.6 | 168.5 | 3.92 | 221.86 | 665.58 | 112.4 | 2.51 | 212.98 | 638.95 |
| 24.5 | 65.6 | 41.6 | 144.2 | 3.92 | 259.25 | 777.75 | 96.2 | 2.51 | 248.88 | 746.64 |
| 24.5 | 65.6 | 57.7 | 104.0 | 3.92 | 359.59 | 1078.76 | 69.3 | 2.51 | 345.20 | 1035.61 |
| 26.5 | 59 | 73.4 | 81.7 | 3.52 | 411.41 | 1234.22 | 54.5 | 2.25 | 394.95 | 1184.85 |
| 26.5 | 59 | 83 | 72.3 | 3.52 | 465.22 | 1395.65 | 48.2 | 2.25 | 446.61 | 1339.82 |
| 26.5 | 59 | 97 | 61.9 | 3.52 | 543.69 | 1631.06 | 41.2 | 2.25 | 521.94 | 1565.81 |
| 26.5 | 59 | 111 | 54.1 | 3.52 | 622.16 | 1866.47 | 36.0 | 2.25 | 597.27 | 1791.81 |
| 26.5 | 59 | 119 | 50.4 | 3.52 | 667.00 | 2000.99 | 33.6 | 2.25 | 640.32 | 1920.95 |
| 26.5 | 59 | 130 | 46.2 | 3.52 | 728.65 | 2185.95 | 30.8 | 2.25 | 699.50 | 2098.51 |
| 29.5 | 53 | 194 | 30.9 | 3.16 | 976.79 | 2500.00 | 20.6 | 2.02 | 937.72 | 2500.00 |
| 29.5 | 53 | 226 | 26.5 | 3.16 | 1137.91 | 2500.00 | 17.7 | 2.02 | 1092.39 | 2500.00 |
| 29.5 | 53 | 259 | 23.2 | 3.16 | 1304.07 | 2500.00 | 15.4 | 2.02 | 1251.90 | 2500.00 |
| 29.5 | 53 | 277 | 21.7 | 3.16 | 1394.70 | 2500.00 | 14.4 | 2.02 | 1338.91 | 2500.00 |
| 29.5 | 53 | 303 | 19.8 | 3.16 | 1525.61 | 2500.00 | 13.2 | 2.02 | 1464.58 | 2500.00 |
| 29.5 | 53 | 316 | 19.0 | 3.16 | 1591.06 | 2500.00 | 12.7 | 2.02 | 1527.42 | 2500.00 |
| 29.5 | 53 | 346 | 17.3 | 3.16 | 1742.11 | 2500.00 | 11.6 | 2.02 | 1672.43 | 2500.00 |
| 29.5 | 53 | 382 | 15.7 | 3.16 | 1923.37 | 2500.00 | 10.5 | 2.02 | 1846.44 | 2500.00 |
| 32.5 | 47.8 | 452 | 13.3 | 2.85 | 2052.53 | 2500.00 | 8.8 | 1.83 | 1970.43 | 2500.00 |
| 32.5 | 47.8 | 528 | 11.4 | 2.85 | 2397.65 | 2500.00 | 7.6 | 1.83 | 2301.74 | 2500.00 |
| 32.5 | 47.8 | 604 | 9.9 | 2.85 | 2500.00 | 2500.00 | 6.6 | 1.83 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 665 | 9.0 | 2.85 | 2500.00 | 2500.00 | 6.0 | 1.83 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 733 | 8.2 | 2.85 | 2500.00 | 2500.00 | 5.5 | 1.83 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 808 | 7.4 | 2.85 | 2500.00 | 2500.00 | 5.0 | 1.83 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 890 | 6.7 | 2.85 | 2500.00 | 2500.00 | 4.5 | 1.83 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1232 | 4.9 | 2.57 | 2500.00 | 2500.00 | 3.2 | 1.64 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1408 | 4.3 | 2.57 | 2500.00 | 2500.00 | 2.8 | 1.64 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1552 | 3.9 | 2.57 | 2500.00 | 2500.00 | 2.6 | 1.64 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1711 | 3.5 | 2.57 | 2500.00 | 2500.00 | 2.3 | 1.64 | 2500.00 | 2500.00 |
| 32.5 | 43 | 2077 | 2.9 | 2.57 | 2500.00 | 2500.00 | 1.9 | 1.64 | 2500.00 | 2500.00 |

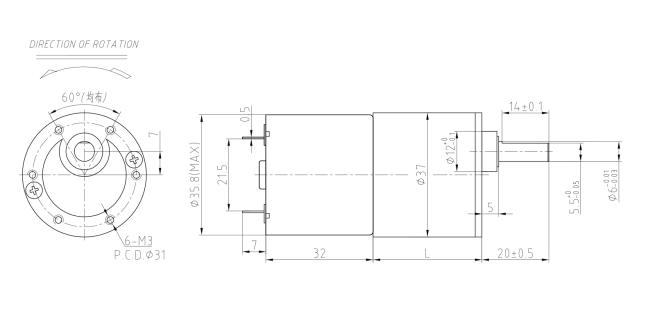

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
