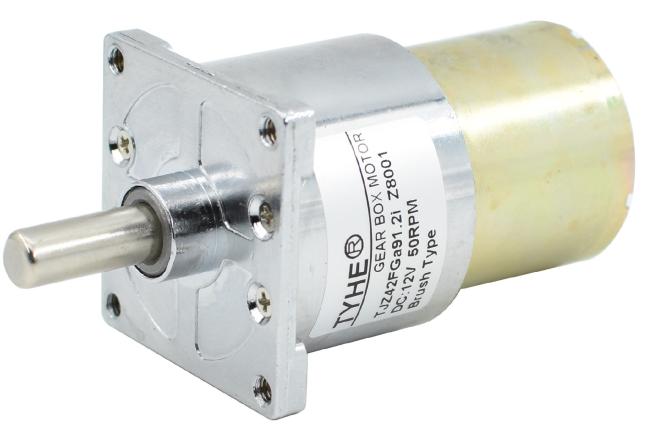

Speed Adjustable Micro Dc Gear Motor 6V-24V 42mm 10rpm 20rpm 30kgcm 2nm
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Speed Adjustable 42mm Gearbox 12v 24v 7.2v 10v 16v 18 V 10 Rpm 20rpm 5 Watt 7w 30kgcm 2nm Brush Micro Dc Gear Motor
Products Description
Speed adjustable 42mm gearbox 12v 24v 7.2v 10v 16v 18 v 10 rpm 20rpm 5 watt 7w 30kgcm 2nm brush micro dc gear reduction motor
| Model | End cover dimensions | Motor type | Regular Shaft | Weight |
| TJZ42FGa | φ42mm | RS50 | 8mm-D cut | 380g |

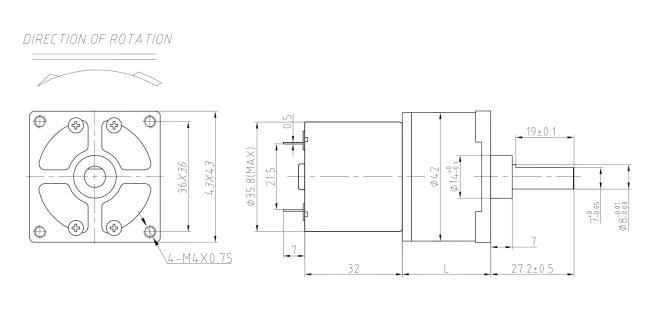

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS530 | 12 | 3500 | 60 | 2800 | 0.21 | 5.30 | 1.55 | 61.91 | 15.90 | 1.43 |
| RS530 | 12 | 5000 | 160 | 4000 | 0.49 | 8.90 | 3.73 | 62.86 | 26.70 | 3.05 |
| RS530 | 24 | 5000 | 80 | 4000 | 0.25 | 9.12 | 3.82 | 62.83 | 27.36 | 1.60 |
| RS530 | 24 | 7500 | 72 | 6000 | 0.37 | 9.25 | 5.81 | 64.63 | 27.75 | 3.20 |
| DC Motor With Gearbox Technical Data (0.7M) | ||||||||||
| Gearbox parameters | 12V-3500RPM Input | 12V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.7 | 81 | 2.5 | 1120.0 | 1.26 | 10.73 | 32.20 | 1600.0 | 3.02 | 18.02 | 54.07 |
| 25.7 | 81 | 3.1 | 903.2 | 1.26 | 13.31 | 39.92 | 1290.3 | 3.02 | 22.35 | 67.04 |
| 25.7 | 81 | 3.8 | 736.8 | 1.26 | 16.31 | 48.94 | 1052.6 | 3.02 | 27.39 | 82.18 |
| 25.7 | 81 | 4.8 | 583.3 | 1.26 | 20.61 | 61.82 | 833.3 | 3.02 | 34.60 | 103.81 |
| 25.7 | 81 | 6.1 | 459.0 | 1.26 | 26.19 | 78.56 | 655.7 | 3.02 | 43.97 | 131.92 |
| 25.7 | 73 | 6.8 | 411.8 | 1.13 | 26.31 | 78.93 | 588.2 | 2.72 | 44.18 | 132.54 |
| 25.7 | 73 | 8.3 | 337.3 | 1.13 | 32.11 | 96.34 | 481.9 | 2.72 | 53.93 | 161.78 |
| 25.7 | 73 | 10.3 | 271.8 | 1.13 | 39.85 | 119.55 | 388.3 | 2.72 | 66.92 | 200.76 |
| 25.7 | 73 | 12.8 | 218.8 | 1.13 | 49.52 | 148.57 | 312.5 | 2.72 | 83.16 | 249.48 |
| 25.7 | 73 | 16.4 | 170.7 | 1.13 | 63.45 | 190.35 | 243.9 | 2.72 | 106.55 | 319.65 |
| 25.7 | 65.6 | 18.2 | 153.8 | 1.02 | 63.28 | 189.83 | 219.8 | 2.45 | 106.26 | 318.78 |
| 25.7 | 65.6 | 22.2 | 126.1 | 1.02 | 77.18 | 231.55 | 180.2 | 2.45 | 129.61 | 388.84 |
| 25.7 | 65.6 | 27.4 | 102.2 | 1.02 | 95.26 | 285.79 | 146.0 | 2.45 | 159.97 | 479.92 |
| 25.7 | 65.6 | 34.2 | 81.9 | 1.02 | 118.91 | 356.72 | 117.0 | 2.45 | 199.67 | 599.02 |
| 25.7 | 65.6 | 43.8 | 63.9 | 1.02 | 152.28 | 456.85 | 91.3 | 2.45 | 255.72 | 767.17 |
| 29.5 | 59 | 48.6 | 57.6 | 0.92 | 151.97 | 455.92 | 82.3 | 2.20 | 255.20 | 765.60 |
| 29.5 | 59 | 59.3 | 47.2 | 0.92 | 185.43 | 556.29 | 67.5 | 2.20 | 311.38 | 934.15 |
| 29.5 | 59 | 73.0 | 38.4 | 0.92 | 228.27 | 684.81 | 54.8 | 2.20 | 383.32 | 1149.97 |
| 29.5 | 59 | 91.2 | 30.7 | 0.92 | 285.18 | 855.55 | 43.9 | 2.20 | 478.89 | 1436.67 |
| 29.5 | 59 | 117.0 | 23.9 | 0.92 | 365.86 | 1097.58 | 34.2 | 2.20 | 614.37 | 1843.10 |
| 29.5 | 59 | 120.0 | 23.3 | 0.92 | 375.24 | 1125.72 | 33.3 | 2.20 | 630.12 | 1890.36 |
| 32.7 | 53 | 130.0 | 21.5 | 0.82 | 365.17 | 1095.51 | 30.8 | 1.98 | 613.21 | 1839.63 |
| 32.7 | 53 | 158.0 | 17.7 | 0.82 | 443.82 | 1331.47 | 25.3 | 1.98 | 745.29 | 2235.86 |
| 32.7 | 53 | 195.0 | 14.4 | 0.82 | 547.76 | 1643.27 | 20.5 | 1.98 | 919.82 | 2759.45 |
| 32.7 | 53 | 243.0 | 11.5 | 0.82 | 682.59 | 2047.76 | 16.5 | 1.98 | 1146.23 | 3438.69 |
| 32.7 | 53 | 311.0 | 9.0 | 0.82 | 873.60 | 2620.80 | 12.9 | 1.98 | 1466.99 | 4400.96 |
| 32.7 | 53 | 323.0 | 8.7 | 0.82 | 907.31 | 2721.92 | 12.4 | 1.98 | 1523.59 | 4570.77 |
| DC Motor With Gearbox Technical Data (0.7M) | ||||||||||
| Gearbox parameters | 24V-5000RPM Input | 24V-7500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.7 | 81 | 2.5 | 1600.0 | 3.09 | 18.47 | 55.40 | 2400.0 | 4.71 | 18.73 | 56.19 |
| 25.7 | 81 | 3.1 | 1290.3 | 3.09 | 22.90 | 68.70 | 1935.5 | 4.71 | 23.23 | 69.68 |
| 25.7 | 81 | 3.8 | 1052.6 | 3.09 | 28.07 | 84.21 | 1578.9 | 4.71 | 28.47 | 85.41 |
| 25.7 | 81 | 4.8 | 833.3 | 3.09 | 35.46 | 106.38 | 1250.0 | 4.71 | 35.96 | 107.89 |
| 25.7 | 81 | 6.1 | 655.7 | 3.09 | 45.06 | 135.19 | 983.6 | 4.71 | 45.70 | 137.11 |
| 25.7 | 73 | 6.8 | 588.2 | 2.79 | 45.27 | 135.82 | 882.4 | 4.24 | 45.92 | 137.75 |
| 25.7 | 73 | 8.3 | 481.9 | 2.79 | 55.26 | 165.77 | 722.9 | 4.24 | 56.05 | 168.14 |
| 25.7 | 73 | 10.3 | 388.3 | 2.79 | 68.57 | 205.72 | 582.5 | 4.24 | 69.55 | 208.65 |
| 25.7 | 73 | 12.8 | 312.5 | 2.79 | 85.22 | 255.65 | 468.8 | 4.24 | 86.43 | 259.30 |
| 25.7 | 73 | 16.4 | 243.9 | 2.79 | 109.18 | 327.55 | 365.9 | 4.24 | 110.74 | 332.22 |
| 25.7 | 65.6 | 18.2 | 219.8 | 2.51 | 108.89 | 326.66 | 329.7 | 3.81 | 110.44 | 331.31 |
| 25.7 | 65.6 | 22.2 | 180.2 | 2.51 | 132.82 | 398.45 | 270.3 | 3.81 | 134.71 | 404.13 |
| 25.7 | 65.6 | 27.4 | 146.0 | 2.51 | 163.93 | 491.78 | 219.0 | 3.81 | 166.26 | 498.79 |
| 25.7 | 65.6 | 34.2 | 117.0 | 2.51 | 204.61 | 613.83 | 175.4 | 3.81 | 207.53 | 622.58 |
| 25.7 | 65.6 | 43.8 | 91.3 | 2.51 | 262.04 | 786.13 | 137.0 | 3.81 | 265.78 | 797.34 |
| 29.5 | 59 | 48.6 | 82.3 | 2.25 | 261.51 | 784.52 | 123.5 | 3.43 | 265.23 | 795.70 |
| 29.5 | 59 | 59.3 | 67.5 | 2.25 | 319.08 | 957.24 | 101.2 | 3.43 | 323.63 | 970.89 |
| 29.5 | 59 | 73.0 | 54.8 | 2.25 | 392.80 | 1178.40 | 82.2 | 3.43 | 398.40 | 1195.19 |
| 29.5 | 59 | 91.2 | 43.9 | 2.25 | 490.73 | 1472.19 | 65.8 | 3.43 | 497.72 | 1493.17 |
| 29.5 | 59 | 117.0 | 34.2 | 2.25 | 629.55 | 1888.66 | 51.3 | 3.43 | 638.53 | 1915.58 |
| 29.5 | 59 | 120.0 | 33.3 | 2.25 | 645.70 | 1937.09 | 50.0 | 3.43 | 654.90 | 1964.70 |
| 32.7 | 53 | 130.0 | 30.8 | 2.02 | 628.37 | 1885.10 | 46.2 | 3.08 | 637.33 | 1911.98 |
| 32.7 | 53 | 158.0 | 25.3 | 2.02 | 763.71 | 2291.13 | 38.0 | 3.08 | 774.60 | 2323.79 |
| 32.7 | 53 | 195.0 | 20.5 | 2.02 | 942.55 | 2827.66 | 30.8 | 3.08 | 955.99 | 2867.96 |
| 32.7 | 53 | 243.0 | 16.5 | 2.02 | 1174.56 | 3523.69 | 24.7 | 3.08 | 1191.31 | 3573.92 |
| 32.7 | 53 | 311.0 | 12.9 | 2.02 | 1503.25 | 4509.75 | 19.3 | 3.08 | 1524.68 | 4574.03 |
| 32.7 | 53 | 323.0 | 12.4 | 2.02 | 1561.25 | 4683.76 | 18.6 | 3.08 | 1583.51 | 4750.52 |
Please let us know your requirements and we will provide you with transmission solutions.
