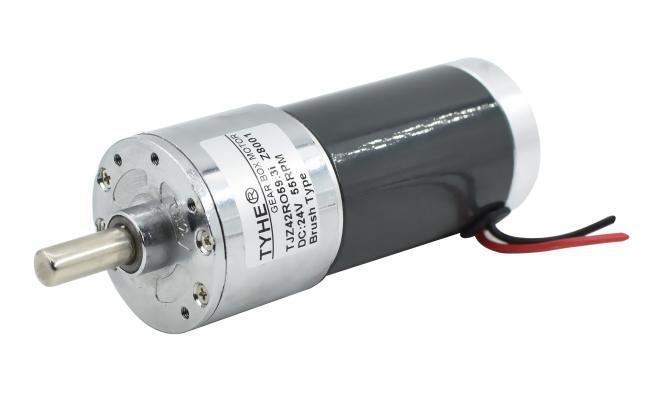

30W Large Torque PMDC Micro DC Gear Motor 42mm 45kgcm 15rpm For Machine
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Factory 42mm Gearbox 12v24v30v 36 Volt 30 Watt Large Torque 45kgcm 30kgcm 15rpm Small PMDC Dc Gear Motor For Machine
Products Description
Factory 42mm gearbox 12v24v30v 36 volt 30 watt large torque 45kgcm 30kgcm 15rpm small PMDC dc gear motor for Shoe covers machine
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY3864 | 12 | 5700 | 340 | 4560 | 1.22 | 19.80 | 9.45 | 64.37 | 59.40 | 7.14 |
| ZY3864 | 12 | 6000 | 380 | 4800 | 1.37 | 20.30 | 10.20 | 62.15 | 60.90 | 7.98 |
| ZY3864 | 24 | 3200 | 80 | 2560 | 0.25 | 14.30 | 3.83 | 63.89 | 42.90 | 1.30 |
| ZY3864 | 24 | 4000 | 120 | 3200 | 0.40 | 17.90 | 6.00 | 62.48 | 53.70 | 2.20 |
| DC Motor With Gearbox Technical Data (0.7M) | ||||||||||
| Gearbox parameters | 12V-5700RPM Input | 12V-6000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.7 | 81 | 2.5 | 1824.0 | 7.66 | 40.10 | 120.29 | 1920.0 | 8.26 | 41.11 | 123.32 |
| 25.7 | 81 | 3.1 | 1471.0 | 7.66 | 49.72 | 149.15 | 1548.4 | 8.26 | 50.97 | 152.92 |
| 25.7 | 81 | 3.8 | 1200.0 | 7.66 | 60.94 | 182.83 | 1263.2 | 8.26 | 62.48 | 187.45 |
| 25.7 | 81 | 4.8 | 950.0 | 7.66 | 76.98 | 230.95 | 1000.0 | 8.26 | 78.93 | 236.78 |
| 25.7 | 81 | 6.1 | 747.5 | 7.66 | 97.83 | 293.50 | 786.9 | 8.26 | 100.30 | 300.91 |
| 25.7 | 73 | 6.8 | 670.6 | 6.90 | 98.29 | 294.86 | 705.9 | 7.45 | 100.77 | 302.31 |
| 25.7 | 73 | 8.3 | 549.4 | 6.90 | 119.97 | 359.90 | 578.3 | 7.45 | 123.00 | 368.99 |
| 25.7 | 73 | 10.3 | 442.7 | 6.90 | 148.88 | 446.63 | 466.0 | 7.45 | 152.64 | 457.91 |
| 25.7 | 73 | 12.8 | 356.3 | 6.90 | 185.01 | 555.03 | 375.0 | 7.45 | 189.68 | 569.05 |
| 25.7 | 73 | 16.4 | 278.0 | 6.90 | 237.05 | 711.14 | 292.7 | 7.45 | 243.03 | 729.09 |
| 25.7 | 65.6 | 18.2 | 250.5 | 6.20 | 236.40 | 709.19 | 263.7 | 6.69 | 242.37 | 727.10 |
| 25.7 | 65.6 | 22.2 | 205.4 | 6.20 | 288.35 | 865.05 | 216.2 | 6.69 | 295.63 | 886.90 |
| 25.7 | 65.6 | 27.4 | 166.4 | 6.20 | 355.89 | 1067.68 | 175.2 | 6.69 | 364.88 | 1094.64 |
| 25.7 | 65.6 | 34.2 | 133.3 | 6.20 | 444.22 | 1332.65 | 140.4 | 6.69 | 455.43 | 1366.30 |
| 25.7 | 65.6 | 43.8 | 104.1 | 6.20 | 568.91 | 1706.73 | 109.6 | 6.69 | 583.28 | 1749.83 |
| 29.5 | 59 | 48.6 | 93.8 | 5.58 | 567.75 | 1703.24 | 98.8 | 6.02 | 582.08 | 1746.25 |
| 29.5 | 59 | 59.3 | 76.9 | 5.58 | 692.74 | 2078.23 | 80.9 | 6.02 | 710.24 | 2130.71 |
| 29.5 | 59 | 73.0 | 62.5 | 5.58 | 852.79 | 2558.36 | 65.8 | 6.02 | 874.32 | 2622.96 |
| 29.5 | 59 | 91.2 | 50.0 | 5.58 | 1065.40 | 3196.20 | 52.6 | 6.02 | 1092.30 | 3276.91 |
| 29.5 | 59 | 117.0 | 39.0 | 5.58 | 1366.79 | 4100.38 | 41.0 | 6.02 | 1401.31 | 4203.93 |
| 29.5 | 59 | 120.0 | 38.0 | 5.58 | 1401.84 | 4205.52 | 40.0 | 6.02 | 1437.24 | 4311.72 |
| 32.7 | 53 | 130.0 | 35.1 | 5.01 | 1364.22 | 4092.66 | 36.9 | 5.41 | 1398.67 | 4196.01 |
| 32.7 | 53 | 158.0 | 28.9 | 5.01 | 1658.05 | 4974.16 | 30.4 | 5.41 | 1699.92 | 5000.00 |
| 32.7 | 53 | 195.0 | 23.4 | 5.01 | 2046.33 | 5000.00 | 24.6 | 5.41 | 2098.01 | 5000.00 |
| 32.7 | 53 | 243.0 | 18.8 | 5.01 | 2550.04 | 5000.00 | 19.8 | 5.41 | 2614.44 | 5000.00 |
| 32.7 | 53 | 311.0 | 14.7 | 5.01 | 3263.63 | 5000.00 | 15.4 | 5.41 | 3346.05 | 5000.00 |
| 32.7 | 53 | 323.0 | 14.1 | 5.01 | 3389.56 | 5000.00 | 14.9 | 5.41 | 3475.16 | 5000.00 |
| DC Motor With Gearbox Technical Data (0.7M) | ||||||||||
| Gearbox parameters | 24V-3200RPM Input | 24V-4000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.7 | 81 | 2.5 | 1024.0 | 3.10 | 28.96 | 86.87 | 1280.0 | 4.86 | 36.25 | 108.74 |
| 25.7 | 81 | 3.1 | 825.8 | 3.10 | 35.91 | 107.72 | 1032.3 | 4.86 | 44.95 | 134.84 |
| 25.7 | 81 | 3.8 | 673.7 | 3.10 | 44.02 | 132.05 | 842.1 | 4.86 | 55.10 | 165.29 |
| 25.7 | 81 | 4.8 | 533.3 | 3.10 | 55.60 | 166.80 | 666.7 | 4.86 | 69.60 | 208.79 |
| 25.7 | 81 | 6.1 | 419.7 | 3.10 | 70.66 | 211.97 | 524.6 | 4.86 | 88.44 | 265.33 |
| 25.7 | 73 | 6.8 | 376.5 | 2.80 | 70.99 | 212.96 | 470.6 | 4.38 | 88.86 | 266.57 |
| 25.7 | 73 | 8.3 | 308.4 | 2.80 | 86.64 | 259.93 | 385.5 | 4.38 | 108.46 | 325.37 |
| 25.7 | 73 | 10.3 | 248.5 | 2.80 | 107.52 | 322.57 | 310.7 | 4.38 | 134.59 | 403.77 |
| 25.7 | 73 | 12.8 | 200.0 | 2.80 | 133.62 | 400.86 | 250.0 | 4.38 | 167.26 | 501.77 |
| 25.7 | 73 | 16.4 | 156.1 | 2.80 | 171.20 | 513.60 | 195.1 | 4.38 | 214.30 | 642.90 |
| 25.7 | 65.6 | 18.2 | 140.7 | 2.51 | 170.73 | 512.19 | 175.8 | 3.93 | 213.71 | 641.14 |
| 25.7 | 65.6 | 22.2 | 115.3 | 2.51 | 208.25 | 624.76 | 144.1 | 3.93 | 260.68 | 782.04 |
| 25.7 | 65.6 | 27.4 | 93.4 | 2.51 | 257.03 | 771.10 | 116.8 | 3.93 | 321.74 | 965.23 |
| 25.7 | 65.6 | 34.2 | 74.9 | 2.51 | 320.82 | 962.47 | 93.6 | 3.93 | 401.59 | 1204.77 |
| 25.7 | 65.6 | 43.8 | 58.4 | 2.51 | 410.88 | 1232.64 | 73.1 | 3.93 | 514.32 | 1542.95 |
| 29.5 | 59 | 48.6 | 52.7 | 2.26 | 410.04 | 1230.11 | 65.8 | 3.54 | 513.26 | 1539.79 |
| 29.5 | 59 | 59.3 | 43.2 | 2.26 | 500.31 | 1500.94 | 54.0 | 3.54 | 626.27 | 1878.80 |
| 29.5 | 59 | 73.0 | 35.1 | 2.26 | 615.90 | 1847.70 | 43.8 | 3.54 | 770.95 | 2312.86 |
| 29.5 | 59 | 91.2 | 28.1 | 2.26 | 769.45 | 2308.36 | 35.1 | 3.54 | 963.16 | 2889.49 |
| 29.5 | 59 | 117.0 | 21.9 | 2.26 | 987.13 | 2961.39 | 27.4 | 3.54 | 1235.64 | 3706.91 |
| 29.5 | 59 | 120.0 | 21.3 | 2.26 | 1012.44 | 3037.32 | 26.7 | 3.54 | 1267.32 | 3801.96 |
| 32.7 | 53 | 130.0 | 19.7 | 2.03 | 985.27 | 2955.81 | 24.6 | 3.18 | 1233.31 | 3699.93 |
| 32.7 | 53 | 158.0 | 16.2 | 2.03 | 1197.48 | 3592.45 | 20.3 | 3.18 | 1498.95 | 4496.84 |
| 32.7 | 53 | 195.0 | 13.1 | 2.03 | 1477.91 | 4433.72 | 16.4 | 3.18 | 1849.97 | 5000.00 |
| 32.7 | 53 | 243.0 | 10.5 | 2.03 | 1841.70 | 5000.00 | 13.2 | 3.18 | 2305.34 | 5000.00 |
| 32.7 | 53 | 311.0 | 8.2 | 2.03 | 2357.07 | 5000.00 | 10.3 | 3.18 | 2950.46 | 5000.00 |
| 32.7 | 53 | 323.0 | 7.9 | 2.03 | 2448.02 | 5000.00 | 9.9 | 3.18 | 3064.30 | 5000.00 |

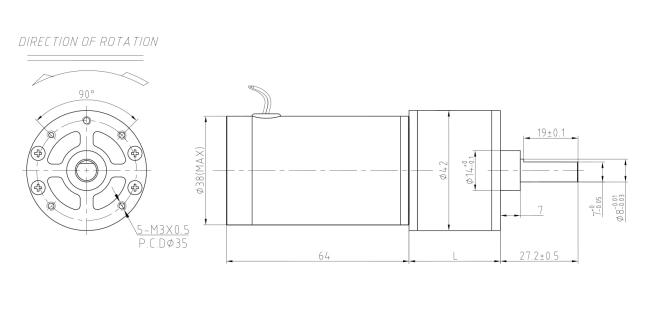

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
