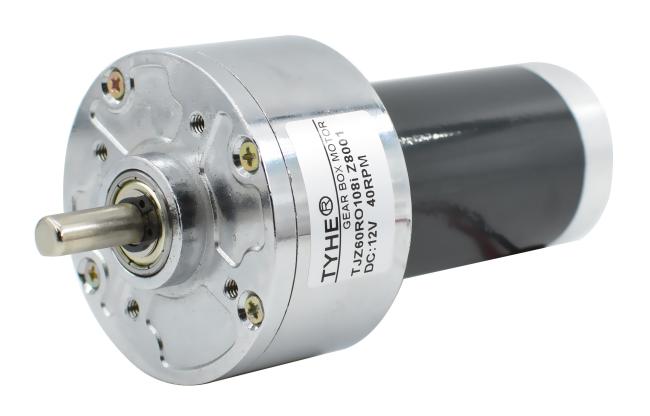

Low Noise 60mm Spur Gearbox Dc Gear Motor 12v 24v 25w 40Rpm
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Low noise 60mm spur gearbox 12v 24v 30v 28 volt high power 25 watt 20w low speed 10 rpm 30 rpm 40 rpm dc gear motor for barbecue
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY3864 | 12 | 5700 | 340 | 4560 | 1.22 | 19.80 | 9.45 | 64.37 | 59.40 | 7.14 |
| ZY3864 | 12 | 6000 | 380 | 4800 | 1.37 | 20.30 | 10.20 | 62.15 | 60.90 | 7.98 |
| ZY3864 | 24 | 4500 | 130 | 3600 | 0.46 | 18.20 | 6.86 | 62.83 | 54.60 | 2.60 |
| ZY3864 | 24 | 5000 | 160 | 4000 | 0.55 | 19.50 | 8.17 | 61.88 | 58.50 | 3.10 |
| DC Motor With Gearbox Technical Data (1.25M) | ||||||||||
| Gearbox parameters | 12V-5700RPM Input | 12V-6000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.5 | 81 | 5.8 | 786.2 | 7.66 | 93.02 | 279.06 | 827.6 | 8.26 | 95.37 | 286.11 |
| 28.5 | 81 | 6.8 | 670.6 | 7.66 | 109.06 | 327.18 | 705.9 | 8.26 | 111.81 | 335.44 |
| 28.5 | 81 | 7.9 | 577.2 | 7.66 | 126.70 | 380.10 | 607.6 | 8.26 | 129.90 | 389.70 |
| 28.5 | 81 | 8.8 | 518.2 | 7.66 | 141.13 | 423.40 | 545.5 | 8.26 | 144.70 | 434.10 |
| 28.5 | 81 | 9.8 | 465.3 | 7.66 | 157.17 | 471.52 | 489.8 | 8.26 | 161.14 | 483.42 |
| 28.5 | 81 | 10.5 | 434.3 | 7.66 | 168.40 | 505.20 | 457.1 | 8.26 | 172.65 | 517.95 |
| 28.5 | 81 | 11.6 | 393.1 | 7.66 | 186.04 | 558.12 | 413.8 | 8.26 | 190.74 | 572.22 |
| 33.5 | 73 | 18.6 | 245.2 | 6.90 | 268.84 | 806.53 | 258.1 | 7.45 | 275.63 | 826.90 |
| 33.5 | 73 | 24.0 | 190.0 | 6.90 | 346.90 | 1040.69 | 200.0 | 7.45 | 355.66 | 1066.97 |
| 33.5 | 73 | 28.0 | 162.9 | 6.90 | 404.71 | 1214.14 | 171.4 | 7.45 | 414.93 | 1244.80 |
| 33.5 | 73 | 33.6 | 135.7 | 6.90 | 485.65 | 1456.96 | 142.9 | 7.45 | 497.92 | 1493.76 |
| 36 | 65.6 | 60.0 | 76.0 | 6.20 | 779.33 | 2337.98 | 80.0 | 6.69 | 799.01 | 2397.02 |
| 36 | 65.6 | 71.0 | 64.2 | 6.20 | 922.20 | 2766.61 | 67.6 | 6.69 | 945.49 | 2836.48 |
| 36 | 65.6 | 83.0 | 54.9 | 6.20 | 1078.07 | 3234.21 | 57.8 | 6.69 | 1105.29 | 3315.88 |
| 36 | 65.6 | 91.0 | 50.1 | 6.20 | 1181.98 | 3545.94 | 52.7 | 6.69 | 1211.83 | 3635.49 |
| 36 | 65.6 | 100.0 | 45.6 | 6.20 | 1298.88 | 3896.64 | 48.0 | 6.69 | 1331.68 | 3995.04 |
| 36 | 65.6 | 108.0 | 42.2 | 6.20 | 1402.79 | 4208.37 | 44.4 | 6.69 | 1438.21 | 4314.64 |
| 36 | 65.6 | 118.0 | 38.6 | 6.20 | 1532.68 | 4598.04 | 40.7 | 6.69 | 1571.38 | 4714.15 |
| 40 | 59 | 191.0 | 23.9 | 5.58 | 2231.26 | 6693.79 | 25.1 | 6.02 | 2287.61 | 6862.82 |
| 40 | 59 | 226.0 | 20.2 | 5.58 | 2640.13 | 7920.40 | 21.2 | 6.02 | 2706.80 | 8120.41 |
| 40 | 59 | 265.0 | 17.2 | 5.58 | 3095.73 | 9287.19 | 18.1 | 6.02 | 3173.91 | 9521.72 |
| 40 | 59 | 288.0 | 15.8 | 5.58 | 3364.42 | 10093.25 | 16.7 | 6.02 | 3449.38 | 10348.13 |
| 40 | 59 | 345.0 | 13.2 | 5.58 | 4030.29 | 12090.87 | 13.9 | 6.02 | 4132.07 | 12396.20 |
| 40 | 59 | 379.0 | 12.0 | 5.58 | 4427.48 | 13282.43 | 12.7 | 6.02 | 4539.28 | 13617.85 |
| DC Motor With Gearbox Technical Data (1.25M) | ||||||||||
| Gearbox parameters | 24V-4500RPM Input | 24V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.5 | 81 | 5.8 | 620.7 | 5.56 | 85.50 | 256.51 | 689.7 | 6.62 | 91.61 | 274.83 |
| 28.5 | 81 | 6.8 | 529.4 | 5.56 | 100.25 | 300.74 | 588.2 | 6.62 | 107.41 | 322.22 |
| 28.5 | 81 | 7.9 | 455.7 | 5.56 | 116.46 | 349.39 | 506.3 | 6.62 | 124.78 | 374.34 |
| 28.5 | 81 | 8.8 | 409.1 | 5.56 | 129.73 | 389.19 | 454.5 | 6.62 | 139.00 | 416.99 |
| 28.5 | 81 | 9.8 | 367.3 | 5.56 | 144.47 | 433.41 | 408.2 | 6.62 | 154.79 | 464.37 |
| 28.5 | 81 | 10.5 | 342.9 | 5.56 | 154.79 | 464.37 | 381.0 | 6.62 | 165.85 | 497.54 |
| 28.5 | 81 | 11.6 | 310.3 | 5.56 | 171.01 | 513.02 | 344.8 | 6.62 | 183.22 | 549.67 |
| 33.5 | 73 | 18.6 | 193.5 | 5.01 | 247.12 | 741.36 | 215.1 | 5.96 | 264.77 | 794.31 |
| 33.5 | 73 | 24.0 | 150.0 | 5.01 | 318.86 | 956.59 | 166.7 | 5.96 | 341.64 | 1024.92 |
| 33.5 | 73 | 28.0 | 128.6 | 5.01 | 372.01 | 1116.02 | 142.9 | 5.96 | 398.58 | 1195.74 |
| 33.5 | 73 | 33.6 | 107.1 | 5.01 | 446.41 | 1339.23 | 119.0 | 5.96 | 478.30 | 1434.89 |
| 36 | 65.6 | 60.0 | 60.0 | 4.50 | 716.35 | 2149.06 | 66.7 | 5.36 | 767.52 | 2302.56 |
| 36 | 65.6 | 71.0 | 50.7 | 4.50 | 847.68 | 2543.05 | 56.3 | 5.36 | 908.23 | 2724.70 |
| 36 | 65.6 | 83.0 | 43.4 | 4.50 | 990.95 | 2972.86 | 48.2 | 5.36 | 1061.74 | 3185.21 |
| 36 | 65.6 | 91.0 | 39.6 | 4.50 | 1086.47 | 3259.40 | 44.0 | 5.36 | 1164.07 | 3492.22 |
| 36 | 65.6 | 100.0 | 36.0 | 4.50 | 1193.92 | 3581.76 | 40.0 | 5.36 | 1279.20 | 3837.60 |
| 36 | 65.6 | 108.0 | 33.3 | 4.50 | 1289.43 | 3868.30 | 37.0 | 5.36 | 1381.54 | 4144.61 |
| 36 | 65.6 | 118.0 | 30.5 | 4.50 | 1408.83 | 4226.48 | 33.9 | 5.36 | 1509.46 | 4528.37 |
| 40 | 59 | 191.0 | 18.8 | 4.05 | 2050.96 | 6152.87 | 20.9 | 4.82 | 2197.46 | 6592.37 |
| 40 | 59 | 226.0 | 15.9 | 4.05 | 2426.79 | 7280.36 | 17.7 | 4.82 | 2600.13 | 7800.39 |
| 40 | 59 | 265.0 | 13.6 | 4.05 | 2845.57 | 8536.71 | 15.1 | 4.82 | 3048.83 | 9146.48 |
| 40 | 59 | 288.0 | 12.5 | 4.05 | 3092.54 | 9277.63 | 13.9 | 4.82 | 3313.44 | 9940.32 |
| 40 | 59 | 345.0 | 10.4 | 4.05 | 3704.61 | 11113.83 | 11.6 | 4.82 | 3969.23 | 11907.68 |
| 40 | 59 | 379.0 | 9.5 | 4.05 | 4069.70 | 12209.11 | 10.6 | 4.82 | 4360.40 | 13081.19 |

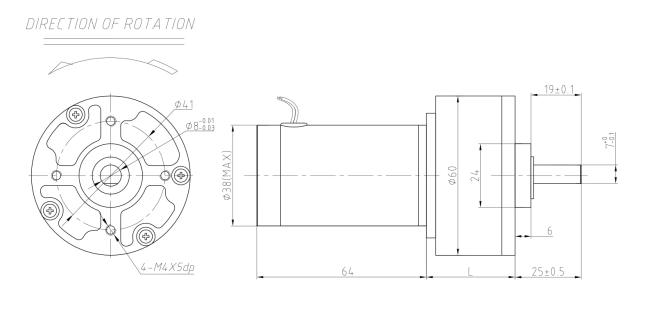

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
