Coreless High Torque Dc Gear Motor Gearbox 12 Volt Metal Brush 50 Rpm For Led Light
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Custom high torque 10kgcm 40kg.cm od 42mm gearbox 6 24v 12 volt metal brush 3w 5 watt 50 rpm dc gear motor for led light

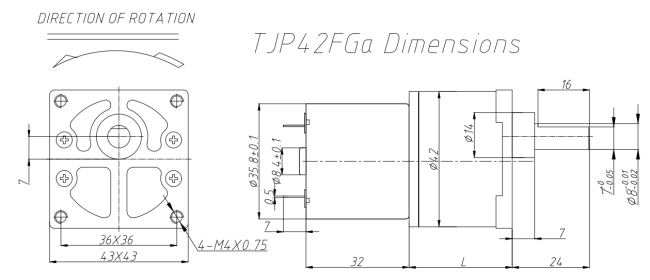

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS530 | 12 | 3500 | 60 | 2800 | 0.21 | 5.30 | 1.55 | 61.91 | 15.90 | 1.43 |
| RS530 | 12 | 7500 | 160 | 6000 | 0.80 | 9.50 | 5.97 | 62.30 | 28.50 | 6.70 |
| RS530 | 24 | 3500 | 35 | 2800 | 0.12 | 5.90 | 1.73 | 62.68 | 17.70 | 0.75 |
| RS530 | 24 | 5000 | 80 | 4000 | 0.25 | 9.12 | 3.82 | 62.83 | 27.36 | 1.60 |
| DC Motor With Gearbox Technical Data (0.7M) | ||||||||||
| Gearbox parameters | 12V-3500RPM Input | 12V-7500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.7 | 81 | 3.6 | 777.8 | 1.26 | 15.45 | 46.36 | 1666.7 | 4.83 | 27.70 | 83.11 |
| 25.7 | 81 | 4.4 | 636.4 | 1.26 | 18.89 | 56.67 | 1363.6 | 4.83 | 33.86 | 101.57 |
| 25.7 | 81 | 5.4 | 518.5 | 1.26 | 23.18 | 69.55 | 1111.1 | 4.83 | 41.55 | 124.66 |
| 25.7 | 81 | 6.8 | 411.8 | 1.26 | 29.19 | 87.58 | 882.4 | 4.83 | 52.33 | 156.98 |
| 25.7 | 81 | 8.6 | 325.6 | 1.26 | 36.92 | 110.76 | 697.7 | 4.83 | 66.18 | 198.53 |
| 29.3 | 73 | 9.7 | 288.7 | 1.13 | 37.53 | 112.59 | 618.6 | 4.36 | 67.27 | 201.81 |
| 29.3 | 73 | 11.8 | 237.3 | 1.13 | 45.65 | 136.96 | 508.5 | 4.36 | 81.83 | 245.50 |
| 29.3 | 73 | 14.6 | 191.8 | 1.13 | 56.49 | 169.46 | 411.0 | 4.36 | 101.25 | 303.75 |
| 29.3 | 73 | 18.2 | 153.8 | 1.13 | 70.42 | 211.25 | 329.7 | 4.36 | 126.22 | 378.65 |
| 29.3 | 73 | 23.3 | 120.2 | 1.13 | 90.15 | 270.44 | 257.5 | 4.36 | 161.59 | 484.76 |
| 29.3 | 65.6 | 25.9 | 108.1 | 1.02 | 90.05 | 270.15 | 231.7 | 3.92 | 161.41 | 484.23 |
| 29.3 | 65.6 | 31.6 | 88.6 | 1.02 | 109.87 | 329.60 | 189.9 | 3.92 | 196.93 | 590.79 |
| 29.3 | 65.6 | 38.9 | 72.0 | 1.02 | 135.25 | 405.74 | 154.2 | 3.92 | 242.42 | 727.27 |
| 29.3 | 65.6 | 48.6 | 57.6 | 1.02 | 168.97 | 506.92 | 123.5 | 3.92 | 302.88 | 908.63 |
| 29.3 | 65.6 | 62.2 | 45.0 | 1.02 | 216.26 | 648.77 | 96.5 | 3.92 | 387.63 | 1162.89 |
| 32.6 | 59 | 69.1 | 40.5 | 0.92 | 216.08 | 648.23 | 86.8 | 3.52 | 387.31 | 1161.92 |
| 32.6 | 59 | 84.2 | 33.3 | 0.92 | 263.29 | 789.88 | 71.3 | 3.52 | 471.94 | 1415.82 |
| 32.6 | 59 | 104 | 26.9 | 0.92 | 325.21 | 975.62 | 57.7 | 3.52 | 582.92 | 1748.76 |
| 32.6 | 59 | 130 | 21.5 | 0.92 | 406.51 | 1219.53 | 46.2 | 3.52 | 728.65 | 2185.95 |
| 32.6 | 59 | 164 | 17.1 | 0.92 | 512.83 | 1538.48 | 36.6 | 3.52 | 919.22 | 2757.66 |
| 32.6 | 59 | 170 | 16.5 | 0.92 | 531.59 | 1594.77 | 35.3 | 3.52 | 952.85 | 2858.55 |
| 36 | 53 | 184 | 15.2 | 0.82 | 516.86 | 1550.57 | 32.6 | 3.16 | 926.44 | 2779.32 |
| 36 | 53 | 225 | 12.4 | 0.82 | 632.03 | 1896.08 | 26.7 | 3.16 | 1132.88 | 3398.63 |
| 36 | 53 | 276 | 10.1 | 0.82 | 775.28 | 2325.85 | 21.7 | 3.16 | 1389.66 | 4168.98 |
| 36 | 53 | 346 | 8.1 | 0.82 | 971.91 | 2915.74 | 17.3 | 3.16 | 1742.11 | 5000.00 |
| 36 | 53 | 442 | 6.3 | 0.82 | 1241.58 | 3724.73 | 13.6 | 3.16 | 2225.47 | 5000.00 |
| 36 | 53 | 459 | 6.1 | 0.82 | 1289.33 | 3867.99 | 13.1 | 3.16 | 2311.07 | 5000.00 |
| DC Motor With Gearbox Technical Data (0.7M) | ||||||||||
| Gearbox parameters | 24V-3500RPM Input | 24V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.7 | 81 | 3.6 | 777.8 | 1.40 | 17.20 | 51.61 | 1111.1 | 3.09 | 26.59 | 79.78 |
| 25.7 | 81 | 4.4 | 636.4 | 1.40 | 21.03 | 63.08 | 909.1 | 3.09 | 32.50 | 97.51 |
| 25.7 | 81 | 5.4 | 518.5 | 1.40 | 25.81 | 77.42 | 740.7 | 3.09 | 39.89 | 119.67 |
| 25.7 | 81 | 6.8 | 411.8 | 1.40 | 32.50 | 97.49 | 588.2 | 3.09 | 50.23 | 150.70 |
| 25.7 | 81 | 8.6 | 325.6 | 1.40 | 41.10 | 123.30 | 465.1 | 3.09 | 63.53 | 190.59 |
| 29.3 | 73 | 9.7 | 288.7 | 1.26 | 41.78 | 125.33 | 412.4 | 2.79 | 64.58 | 193.74 |
| 29.3 | 73 | 11.8 | 237.3 | 1.26 | 50.82 | 152.47 | 339.0 | 2.79 | 78.56 | 235.68 |
| 29.3 | 73 | 14.6 | 191.8 | 1.26 | 62.88 | 188.65 | 274.0 | 2.79 | 97.20 | 291.60 |
| 29.3 | 73 | 18.2 | 153.8 | 1.26 | 78.39 | 235.16 | 219.8 | 2.79 | 121.17 | 363.50 |
| 29.3 | 73 | 23.3 | 120.2 | 1.26 | 100.35 | 301.06 | 171.7 | 2.79 | 155.12 | 465.37 |
| 29.3 | 65.6 | 25.9 | 108.1 | 1.13 | 100.24 | 300.73 | 154.4 | 2.51 | 154.95 | 464.86 |
| 29.3 | 65.6 | 31.6 | 88.6 | 1.13 | 122.30 | 366.91 | 126.6 | 2.51 | 189.05 | 567.16 |
| 29.3 | 65.6 | 38.9 | 72.0 | 1.13 | 150.56 | 451.68 | 102.8 | 2.51 | 232.73 | 698.18 |
| 29.3 | 65.6 | 48.6 | 57.6 | 1.13 | 188.10 | 564.30 | 82.3 | 2.51 | 290.76 | 872.28 |
| 29.3 | 65.6 | 62.2 | 45.0 | 1.13 | 240.74 | 722.22 | 64.3 | 2.51 | 372.13 | 1116.38 |
| 32.6 | 59 | 69.1 | 40.5 | 1.02 | 240.54 | 721.61 | 57.9 | 2.25 | 371.81 | 1115.44 |
| 32.6 | 59 | 84.2 | 33.3 | 1.02 | 293.10 | 879.30 | 47.5 | 2.25 | 453.06 | 1359.19 |
| 32.6 | 59 | 104 | 26.9 | 1.02 | 362.02 | 1086.07 | 38.5 | 2.25 | 559.60 | 1678.81 |
| 32.6 | 59 | 130 | 21.5 | 1.02 | 452.53 | 1357.59 | 30.8 | 2.25 | 699.50 | 2098.51 |
| 32.6 | 59 | 164 | 17.1 | 1.02 | 570.88 | 1712.65 | 24.4 | 2.25 | 882.45 | 2647.35 |
| 32.6 | 59 | 170 | 16.5 | 1.02 | 591.77 | 1775.31 | 23.5 | 2.25 | 914.74 | 2744.21 |
| 36 | 53 | 184 | 15.2 | 0.92 | 575.37 | 1726.10 | 21.7 | 2.02 | 889.38 | 2668.15 |
| 36 | 53 | 225 | 12.4 | 0.92 | 703.58 | 2110.73 | 17.8 | 2.02 | 1087.56 | 3262.68 |
| 36 | 53 | 276 | 10.1 | 0.92 | 863.05 | 2589.16 | 14.5 | 2.02 | 1334.07 | 4002.22 |
| 36 | 53 | 346 | 8.1 | 0.92 | 1081.94 | 3245.83 | 11.6 | 2.02 | 1672.43 | 5000.00 |
| 36 | 53 | 442 | 6.3 | 0.92 | 1382.13 | 4146.40 | 9.0 | 2.02 | 2136.45 | 5000.00 |
| 36 | 53 | 459 | 6.1 | 0.92 | 1435.29 | 4305.88 | 8.7 | 2.02 | 2218.62 | 5000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
