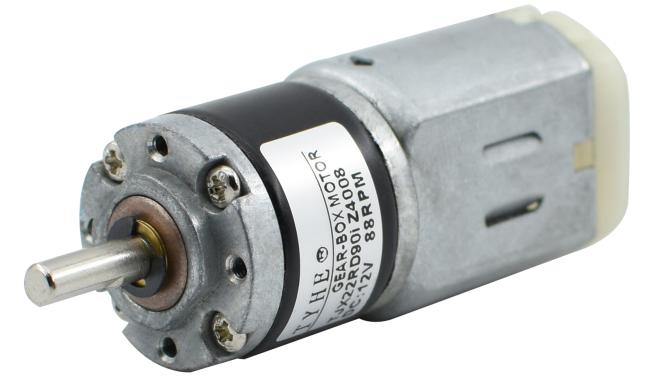

OEM D22mm DC Planetary Gear Motor 1400rpm 1.5nm For Robotic

Name: OEM D22mm DC Planetary Gear Motor 1400rpm 1.5nm For Robotic
Brand: Wenzhou Tyhe Motor Co., Ltd.

Price Negotiable

Price: Negotiation

MOQ: 500pcs

Delivery Time: 15 working days after payment

Brand: TYHE

Product Description

Products Description

OEM D22mm gear box 24v 14.4v 7.2v 1400rpm 30rpm 60 rpm big torque 20kgf 1.5nm 3w 4w 5w dc PMDC planetary gear motors for robotic

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
F280	12	6800	30	5440	0.10	1.30	0.74	61.71	3.90	0.60
F280	12	8000	60	6400	0.15	1.65	1.11	61.43	4.95	2.00
F280	12	12000	120	9600	0.38	2.82	2.83	62.17	8.46	2.67
F280	24	6800	20	5440	0.05	1.35	0.77	60.46	4.05	0.41
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters			12V-6800RPM Input				12V-8000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
13	90	3.5	1554.3	0.67	4.10	12.29	1828.6	1.00	5.20	15.59
13	90	4.0	1360.0	0.67	4.68	14.04	1600.0	1.00	5.94	17.82
13	90	4.8	1145.3	0.67	5.56	16.67	1347.4	1.00	7.05	21.16
16.6	81	12.3	442.3	0.60	12.95	38.86	520.3	0.90	16.44	49.32
16.6	81	14.0	388.6	0.60	14.74	44.23	457.1	0.90	18.71	56.13
16.6	81	16.0	340.0	0.60	16.85	50.54	400.0	0.90	21.38	64.15
16.6	81	19.0	286.3	0.60	20.01	60.02	336.8	0.90	25.39	76.18
16.6	81	22.6	240.7	0.60	23.80	71.39	283.2	0.90	30.20	90.61
20.2	73	42.9	126.8	0.54	40.71	122.14	149.2	0.81	51.67	155.02
20.2	73	49.0	111.0	0.54	46.50	139.50	130.6	0.81	59.02	177.06
20.2	73	56.0	97.1	0.54	53.14	159.43	114.3	0.81	67.45	202.36
20.2	73	64.0	85.0	0.54	60.74	182.21	100.0	0.81	77.09	231.26
20.2	73	79.0	68.9	0.54	74.97	224.91	81.0	0.81	95.16	285.47
20.2	73	90.3	60.2	0.54	85.69	257.08	70.9	0.81	108.77	326.30
20.2	73	107.0	50.8	0.54	101.54	304.63	59.8	0.81	128.88	386.64
23.8	65.6	150.0	36.3	0.49	127.92	383.76	42.7	0.73	162.36	487.08
23.8	65.6	172.0	31.6	0.49	146.68	440.04	37.2	0.73	186.17	558.52
23.8	65.6	196.0	27.8	0.49	167.15	501.45	32.7	0.73	212.15	636.45
23.8	65.6	204.0	26.7	0.49	173.97	521.91	31.4	0.73	220.81	662.43
23.8	65.6	224.0	24.3	0.49	191.03	573.08	28.6	0.73	242.46	727.37
23.8	65.6	256.0	21.3	0.49	218.32	654.95	25.0	0.73	277.09	831.28
23.8	65.6	276.0	19.7	0.49	235.37	706.12	23.2	0.73	298.74	896.23
23.8	65.6	304.0	17.9	0.49	259.25	777.75	21.1	0.73	329.05	987.15
23.8	65.6	361.0	15.1	0.49	307.86	923.58	17.7	0.73	390.75	1172.24
23.8	65.6	375.0	14.5	0.49	319.80	959.40	17.1	0.73	405.90	1217.70
23.8	65.6	429.0	12.7	0.49	365.85	1097.55	14.9	0.73	464.35	1393.05
23.8	65.6	509.0	10.7	0.49	434.08	1302.23	12.6	0.73	550.94	1652.82
27.2	59	525.0	10.4	0.44	402.68	1208.03	12.2	0.65	511.09	1533.26
27.2	59	600.0	9.1	0.44	460.20	1380.60	10.7	0.65	584.10	1752.30
27.2	59	686.0	7.9	0.44	526.16	1578.49	9.3	0.65	667.82	1800.00
27.2	59	713.0	7.6	0.44	546.87	1640.61	9.0	0.65	694.11	1800.00
27.2	59	784.0	6.9	0.44	601.33	1800.00	8.2	0.65	763.22	1800.00
27.2	59	896.0	6.1	0.44	687.23	1800.00	7.1	0.65	872.26	1800.00
27.2	59	931.0	5.8	0.44	714.08	1800.00	6.9	0.65	906.33	1800.00
27.2	59	967.0	5.6	0.44	741.69	1800.00	6.6	0.65	941.37	1800.00
27.2	59	1024.0	5.3	0.44	785.41	1800.00	6.3	0.65	996.86	1800.00
27.2	59	1106.0	4.9	0.44	848.30	1800.00	5.8	0.65	1076.69	1800.00
27.2	59	1216.0	4.5	0.44	932.67	1800.00	5.3	0.65	1183.78	1800.00
27.2	59	1264.0	4.3	0.44	969.49	1800.00	5.1	0.65	1230.50	1800.00
27.2	59	1313.0	4.1	0.44	1007.07	1800.00	4.9	0.65	1278.21	1800.00
27.2	59	1444.0	3.8	0.44	1107.55	1800.00	4.4	0.65	1405.73	1800.00
27.2	59	1715.0	3.2	0.44	1315.41	1800.00	3.7	0.65	1669.55	1800.00
27.2	59	1782.0	3.1	0.44	1366.79	1800.00	3.6	0.65	1734.78	1800.00
27.2	59	2036.0	2.7	0.44	1561.61	1800.00	3.1	0.65	1800.00	1800.00
27.2	59	2418.0	2.2	0.44	1800.00	1800.00	2.6	0.65	1800.00	1800.00
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters			12V-12000RPM Input				24V-6800RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
13	90	3.5	2742.9	2.55	8.88	26.65	1554.3	0.69	4.25	12.76
13	90	4.0	2400.0	2.55	10.15	30.46	1360.0	0.69	4.86	14.58
13	90	4.8	2021.1	2.55	12.06	36.17	1145.3	0.69	5.77	17.31
16.6	81	12.3	780.5	2.30	28.10	84.29	442.3	0.62	13.45	40.35
16.6	81	14.0	685.7	2.30	31.98	95.94	388.6	0.62	15.31	45.93
16.6	81	16.0	600.0	2.30	36.55	109.64	340.0	0.62	17.50	52.49
16.6	81	19.0	505.3	2.30	43.40	130.20	286.3	0.62	20.78	62.33
16.6	81	22.6	424.8	2.30	51.62	154.87	240.7	0.62	24.71	74.14
20.2	73	42.9	223.8	2.07	88.31	264.94	126.8	0.56	42.28	126.83
20.2	73	49.0	195.9	2.07	100.87	302.61	111.0	0.56	48.29	144.87
20.2	73	56.0	171.4	2.07	115.28	345.84	97.1	0.56	55.19	165.56
20.2	73	64.0	150.0	2.07	131.75	395.25	85.0	0.56	63.07	189.22
20.2	73	79.0	121.5	2.07	162.63	487.89	68.9	0.56	77.85	233.56
20.2	73	90.3	106.3	2.07	185.89	557.67	60.2	0.56	88.99	266.97
20.2	73	107.0	89.7	2.07	220.27	660.81	50.8	0.56	105.45	316.35
23.8	65.6	150.0	64.0	1.86	277.49	832.46	36.3	0.50	132.84	398.52
23.8	65.6	172.0	55.8	1.86	318.19	954.56	31.6	0.50	152.32	456.97
23.8	65.6	196.0	49.0	1.86	362.58	1087.75	27.8	0.50	173.58	520.73
23.8	65.6	204.0	47.1	1.86	377.38	1132.15	26.7	0.50	180.66	541.99
23.8	65.6	224.0	42.9	1.86	414.38	1243.15	24.3	0.50	198.37	595.12
23.8	65.6	256.0	37.5	1.86	473.58	1420.74	21.3	0.50	226.71	680.14
23.8	65.6	276.0	34.8	1.86	510.58	1531.73	19.7	0.50	244.43	733.28
23.8	65.6	304.0	31.6	1.86	562.38	1687.13	17.9	0.50	269.22	807.67
23.8	65.6	361.0	26.6	1.86	667.82	1800.00	15.1	0.50	319.70	959.10
23.8	65.6	375.0	25.6	1.86	693.72	1800.00	14.5	0.50	332.10	996.30
23.8	65.6	429.0	22.4	1.86	793.62	1800.00	12.7	0.50	379.92	1139.77
23.8	65.6	509.0	18.9	1.86	941.61	1800.00	10.7	0.50	450.77	1352.31
27.2	59	525.0	18.3	1.67	873.50	1800.00	10.4	0.45	418.16	1254.49
27.2	59	600.0	16.0	1.67	998.28	1800.00	9.1	0.45	477.90	1433.70
27.2	59	686.0	14.0	1.67	1141.37	1800.00	7.9	0.45	546.40	1639.20
27.2	59	713.0	13.5	1.67	1186.29	1800.00	7.6	0.45	567.90	1703.71
27.2	59	784.0	12.2	1.67	1304.42	1800.00	6.9	0.45	624.46	1800.00
27.2	59	896.0	10.7	1.67	1490.76	1800.00	6.1	0.45	713.66	1800.00
27.2	59	931.0	10.3	1.67	1549.00	1800.00	5.8	0.45	741.54	1800.00
27.2	59	967.0	9.9	1.67	1608.89	1800.00	5.6	0.45	770.22	1800.00
27.2	59	1024.0	9.4	1.67	1703.73	1800.00	5.3	0.45	815.62	1800.00
27.2	59	1106.0	8.7	1.67	1800.00	1800.00	4.9	0.45	880.93	1800.00
27.2	59	1216.0	7.9	1.67	1800.00	1800.00	4.5	0.45	968.54	1800.00
27.2	59	1264.0	7.6	1.67	1800.00	1800.00	4.3	0.45	1006.78	1800.00
27.2	59	1313.0	7.3	1.67	1800.00	1800.00	4.1	0.45	1045.80	1800.00
27.2	59	1444.0	6.6	1.67	1800.00	1800.00	3.8	0.45	1150.15	1800.00
27.2	59	1715.0	5.6	1.67	1800.00	1800.00	3.2	0.45	1366.00	1800.00
27.2	59	1782.0	5.4	1.67	1800.00	1800.00	3.1	0.45	1419.36	1800.00
27.2	59	2036.0	4.7	1.67	1800.00	1800.00	2.7	0.45	1621.67	1800.00
27.2	59	2418.0	4.0	1.67	1800.00	1800.00	2.2	0.45	1800.00	1800.00
