OEM 32mm Micro Planetary Gear Motor 6w Rs395
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
OEM 32mm micro gearbox 12 volt 12v 24v low rpm big torque 10rpm 130rpm 20kgcm 50kgcm 5w 6w rs395 brushed dc planetary gear motor
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS395 | 12 | 4500 | 100 | 3600 | 0.29 | 5.90 | 2.22 | 63.55 | 17.70 | 1.70 |
| RS395 | 12 | 7500 | 160 | 6000 | 0.62 | 7.30 | 4.59 | 62.15 | 21.90 | 4.50 |
| RS395 | 24 | 5000 | 50 | 4000 | 0.17 | 6.30 | 2.64 | 64.68 | 18.90 | 1.14 |
| RS395 | 24 | 5300 | 60 | 4240 | 0.20 | 6.70 | 2.97 | 62.49 | 20.10 | 1.30 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-4500RPM Input | 12V-7500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 21.4 | 90 | 3.7 | 973.0 | 2.00 | 19.65 | 58.94 | 1621.6 | 4.13 | 24.31 | 72.93 |
| 21.4 | 90 | 5.2 | 692.3 | 2.00 | 27.61 | 82.84 | 1153.8 | 4.13 | 34.16 | 102.49 |
| 27.7 | 81 | 13.7 | 262.8 | 1.80 | 65.47 | 196.42 | 438.0 | 3.71 | 81.01 | 243.02 |
| 27.7 | 81 | 19.2 | 187.5 | 1.80 | 91.76 | 275.27 | 312.5 | 3.71 | 113.53 | 340.59 |
| 27.7 | 81 | 26.9 | 133.8 | 1.80 | 128.56 | 385.67 | 223.0 | 3.71 | 159.06 | 477.18 |
| 27.7 | 81 | 35.0 | 102.9 | 1.80 | 167.27 | 501.80 | 171.4 | 3.71 | 206.96 | 620.87 |
| 34 | 73 | 51.0 | 70.6 | 1.62 | 219.66 | 658.97 | 117.6 | 3.35 | 271.78 | 815.34 |
| 34 | 73 | 71.0 | 50.7 | 1.62 | 305.80 | 917.39 | 84.5 | 3.35 | 378.36 | 1135.08 |
| 34 | 73 | 100.0 | 36.0 | 1.62 | 430.70 | 1292.10 | 60.0 | 3.35 | 532.90 | 1598.70 |
| 34 | 73 | 139.0 | 25.9 | 1.62 | 598.67 | 1796.02 | 43.2 | 3.35 | 740.73 | 2222.19 |
| 40.4 | 65.6 | 189.0 | 19.0 | 1.46 | 731.51 | 2194.52 | 31.7 | 3.01 | 905.08 | 2715.25 |
| 40.4 | 65.6 | 264.0 | 13.6 | 1.46 | 1021.79 | 3065.36 | 22.7 | 3.01 | 1264.24 | 3792.73 |
| 40.4 | 65.6 | 369.0 | 9.8 | 1.46 | 1428.18 | 4284.53 | 16.3 | 3.01 | 1767.07 | 5000.00 |
| 40.4 | 65.6 | 514.0 | 7.0 | 1.46 | 1989.39 | 5000.00 | 11.7 | 3.01 | 2461.44 | 5000.00 |
| 40.4 | 65.6 | 721.0 | 5.0 | 1.46 | 2790.56 | 5000.00 | 8.3 | 3.01 | 3452.72 | 5000.00 |
| 46.7 | 59 | 699.0 | 5.2 | 1.31 | 2433.22 | 5000.00 | 8.6 | 2.71 | 3010.59 | 5000.00 |
| 46.7 | 59 | 977.0 | 3.7 | 1.31 | 3400.94 | 5000.00 | 6.1 | 2.71 | 4207.94 | 5000.00 |
| 46.7 | 59 | 1367.0 | 2.6 | 1.31 | 4758.53 | 5000.00 | 4.4 | 2.71 | 5000.00 | 5000.00 |
| 46.7 | 59 | 1911.0 | 1.9 | 1.31 | 5000.00 | 5000.00 | 3.1 | 2.71 | 5000.00 | 5000.00 |
| 46.7 | 59 | 2672.0 | 1.3 | 1.31 | 5000.00 | 5000.00 | 2.2 | 2.71 | 5000.00 | 5000.00 |
| 46.7 | 59 | 3736.0 | 1.0 | 1.31 | 5000.00 | 5000.00 | 1.6 | 2.71 | 5000.00 | 5000.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 24V-5000RPM Input | 24V-5300RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 21.4 | 90 | 3.7 | 1081.1 | 2.37 | 20.98 | 62.94 | 1145.9 | 2.68 | 22.31 | 66.93 |
| 21.4 | 90 | 5.2 | 769.2 | 2.37 | 29.48 | 88.45 | 815.4 | 2.68 | 31.36 | 94.07 |
| 27.7 | 81 | 13.7 | 292.0 | 2.14 | 69.91 | 209.73 | 309.5 | 2.41 | 74.35 | 223.05 |
| 27.7 | 81 | 19.2 | 208.3 | 2.14 | 97.98 | 293.93 | 220.8 | 2.41 | 104.20 | 312.60 |
| 27.7 | 81 | 26.9 | 148.7 | 2.14 | 137.27 | 411.81 | 157.6 | 2.41 | 145.99 | 437.96 |
| 27.7 | 81 | 35.0 | 114.3 | 2.14 | 178.61 | 535.82 | 121.1 | 2.41 | 189.95 | 569.84 |
| 34 | 73 | 51.0 | 78.4 | 1.93 | 234.55 | 703.65 | 83.1 | 2.17 | 249.44 | 748.32 |
| 34 | 73 | 71.0 | 56.3 | 1.93 | 326.53 | 979.59 | 59.7 | 2.17 | 347.26 | 1041.78 |
| 34 | 73 | 100.0 | 40.0 | 1.93 | 459.90 | 1379.70 | 42.4 | 2.17 | 489.10 | 1467.30 |
| 34 | 73 | 139.0 | 28.8 | 1.93 | 639.26 | 1917.78 | 30.5 | 2.17 | 679.85 | 2039.55 |
| 40.4 | 65.6 | 189.0 | 21.2 | 1.73 | 781.10 | 2343.30 | 22.4 | 1.95 | 830.69 | 2492.08 |
| 40.4 | 65.6 | 264.0 | 15.2 | 1.73 | 1091.06 | 3273.18 | 16.1 | 1.95 | 1160.33 | 3481.00 |
| 40.4 | 65.6 | 369.0 | 10.8 | 1.73 | 1525.00 | 4575.01 | 11.5 | 1.95 | 1621.83 | 4865.49 |
| 40.4 | 65.6 | 514.0 | 7.8 | 1.73 | 2124.26 | 5000.00 | 8.2 | 1.95 | 2259.13 | 5000.00 |
| 40.4 | 65.6 | 721.0 | 5.5 | 1.73 | 2979.75 | 5000.00 | 5.9 | 1.95 | 3168.94 | 5000.00 |
| 46.7 | 59 | 699.0 | 5.7 | 1.56 | 2598.18 | 5000.00 | 6.1 | 1.76 | 2763.15 | 5000.00 |
| 46.7 | 59 | 977.0 | 4.1 | 1.56 | 3631.51 | 5000.00 | 4.3 | 1.76 | 3862.08 | 5000.00 |
| 46.7 | 59 | 1367.0 | 2.9 | 1.56 | 5000.00 | 5000.00 | 3.1 | 1.76 | 5000.00 | 5000.00 |
| 46.7 | 59 | 1911.0 | 2.1 | 1.56 | 5000.00 | 5000.00 | 2.2 | 1.76 | 5000.00 | 5000.00 |
| 46.7 | 59 | 2672.0 | 1.5 | 1.56 | 5000.00 | 5000.00 | 1.6 | 1.76 | 5000.00 | 5000.00 |
| 46.7 | 59 | 3736.0 | 1.1 | 1.56 | 5000.00 | 5000.00 | 1.1 | 1.76 | 5000.00 | 5000.00 |

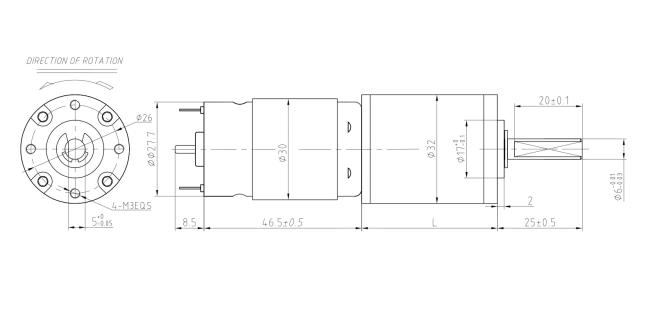

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
