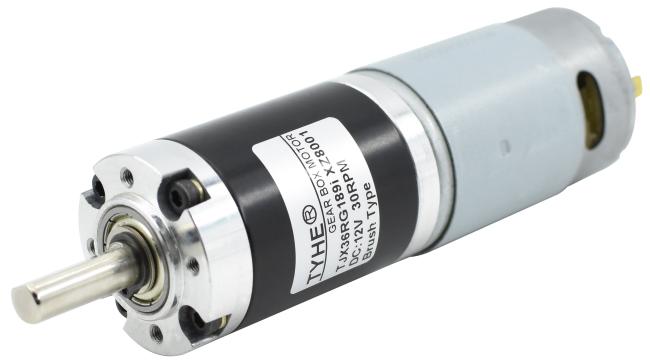

36mm 24v Micro Planetary Gear Motor 8nm For Paper Shredder
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Customizable 36mm gearbox 6v 12v 18v 24v rs 550 PMDC 1 100 gear ratio low rpm 5nm 8nm dc planetary gear motor for paper shredder
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS555 | 12 | 4500 | 150 | 3600 | 0.69 | 13.50 | 5.09 | 61.31 | 40.50 | 5.60 |
| RS555 | 12 | 5000 | 240 | 4000 | 0.93 | 16.80 | 7.04 | 63.28 | 50.40 | 6.80 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-4500RPM Input | 12V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.2 | 90 | 3.7 | 973.0 | 4.58 | 44.96 | 134.87 | 1081.1 | 6.33 | 55.94 | 167.83 |
| 28.2 | 90 | 5.2 | 692.3 | 4.58 | 63.18 | 189.54 | 769.2 | 6.33 | 78.62 | 235.87 |
| 37 | 81 | 13.7 | 262.8 | 4.12 | 149.81 | 449.43 | 292.0 | 5.70 | 186.43 | 559.29 |
| 37 | 81 | 19.2 | 187.5 | 4.12 | 209.95 | 629.86 | 208.3 | 5.70 | 261.27 | 783.82 |
| 37 | 81 | 26.9 | 133.8 | 4.12 | 294.15 | 882.45 | 148.7 | 5.70 | 366.06 | 1098.17 |
| 37 | 81 | 35.0 | 102.9 | 4.12 | 382.73 | 1148.18 | 114.3 | 5.70 | 476.28 | 1428.84 |
| 45.8 | 73 | 51.0 | 70.6 | 3.71 | 502.61 | 1507.82 | 78.4 | 5.14 | 625.46 | 1876.39 |
| 45.8 | 73 | 71.0 | 50.7 | 3.71 | 699.71 | 2099.12 | 56.3 | 5.14 | 870.74 | 2612.23 |
| 45.8 | 73 | 100.0 | 36.0 | 3.71 | 985.50 | 2956.50 | 40.0 | 5.14 | 1226.40 | 3679.20 |
| 45.8 | 73 | 139.0 | 25.9 | 3.71 | 1369.85 | 4109.54 | 28.8 | 5.14 | 1704.70 | 5114.09 |
| 54.7 | 65.6 | 189.0 | 19.0 | 3.34 | 1673.78 | 5021.35 | 21.2 | 4.62 | 2082.93 | 6248.79 |
| 54.7 | 65.6 | 264.0 | 13.6 | 3.34 | 2337.98 | 7013.95 | 15.2 | 4.62 | 2909.49 | 8728.47 |
| 54.7 | 65.6 | 369.0 | 9.8 | 3.34 | 3267.86 | 9803.59 | 10.8 | 4.62 | 4066.68 | 10000.00 |
| 54.7 | 65.6 | 514.0 | 7.0 | 3.34 | 4551.98 | 10000.00 | 7.8 | 4.62 | 5664.69 | 10000.00 |
| 54.7 | 65.6 | 721.0 | 5.0 | 3.34 | 6385.18 | 10000.00 | 5.5 | 4.62 | 7946.00 | 10000.00 |
| 64 | 59 | 699.0 | 5.2 | 3.00 | 5567.54 | 10000.00 | 5.7 | 4.15 | 6928.49 | 10000.00 |
| 64 | 59 | 977.0 | 3.7 | 3.00 | 7781.81 | 10000.00 | 4.1 | 4.15 | 9684.02 | 10000.00 |
| 64 | 59 | 1367.0 | 2.6 | 3.00 | 10000.00 | 10000.00 | 2.9 | 4.15 | 10000.00 | 10000.00 |
| 64 | 59 | 1911.0 | 1.9 | 3.00 | 10000.00 | 10000.00 | 2.1 | 4.15 | 10000.00 | 10000.00 |
| 64 | 59 | 2672.0 | 1.3 | 3.00 | 10000.00 | 10000.00 | 1.5 | 4.15 | 10000.00 | 10000.00 |
| 64 | 59 | 3736.0 | 1.0 | 3.00 | 10000.00 | 10000.00 | 1.1 | 4.15 | 10000.00 | 10000.00 |

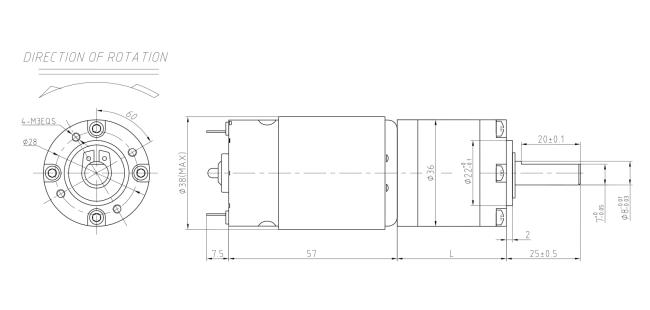

2D drawing
