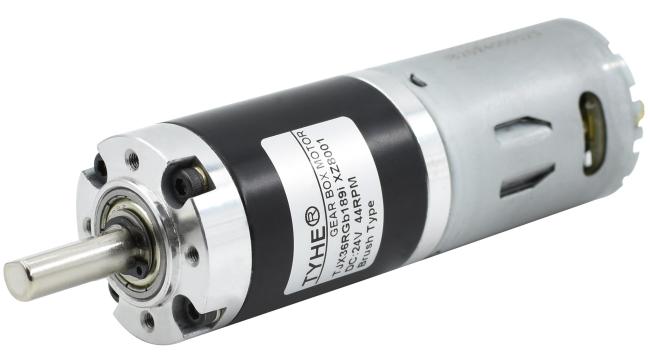

Customized Brushed 36mm Micro Planetary Gearbox 10 Watt 5Rpm
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Custom speed 36mm gearmotor 6v 12v 24v 100kgcm 40kgcm 12nm 12w 10 watt 1rpm 5 rpm brush dc planetary geared motor with encoder
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS545 | 6 | 3200 | 280 | 2560 | 0.81 | 11.20 | 3.00 | 61.65 | 33.60 | 4.70 |
| RS545 | 12 | 2000 | 70 | 1600 | 0.20 | 8.95 | 1.50 | 63.54 | 26.85 | 1.10 |
| RS545 | 24 | 6000 | 160 | 4800 | 0.60 | 17.50 | 8.80 | 61.25 | 52.50 | 4.30 |
| RS545 | 24 | 8300 | 200 | 6640 | 0.88 | 19.30 | 13.42 | 63.90 | 57.90 | 6.90 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 6V-3200RPM Input | 12V-2000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.2 | 90 | 3.7 | 691.9 | 2.70 | 37.30 | 111.89 | 432.4 | 1.35 | 29.80 | 89.41 |
| 28.2 | 90 | 5.2 | 492.3 | 2.70 | 52.42 | 157.25 | 307.7 | 1.35 | 41.89 | 125.66 |
| 37 | 81 | 13.7 | 186.9 | 2.43 | 124.29 | 372.86 | 116.8 | 1.21 | 99.32 | 297.95 |
| 37 | 81 | 19.2 | 133.3 | 2.43 | 174.18 | 522.55 | 83.3 | 1.21 | 139.19 | 417.57 |
| 37 | 81 | 26.9 | 95.2 | 2.43 | 244.04 | 732.11 | 59.5 | 1.21 | 195.01 | 585.03 |
| 37 | 81 | 35.0 | 73.1 | 2.43 | 317.52 | 952.56 | 45.7 | 1.21 | 253.73 | 761.20 |
| 45.8 | 73 | 51.0 | 50.2 | 2.19 | 416.98 | 1250.93 | 31.4 | 1.09 | 333.21 | 999.63 |
| 45.8 | 73 | 71.0 | 36.1 | 2.19 | 580.50 | 1741.49 | 22.5 | 1.09 | 463.88 | 1391.64 |
| 45.8 | 73 | 100.0 | 25.6 | 2.19 | 817.60 | 2452.80 | 16.0 | 1.09 | 653.35 | 1960.05 |
| 45.8 | 73 | 139.0 | 18.4 | 2.19 | 1136.46 | 3409.39 | 11.5 | 1.09 | 908.16 | 2724.47 |
| 54.7 | 65.6 | 189.0 | 13.5 | 1.97 | 1388.62 | 4165.86 | 8.5 | 0.98 | 1109.66 | 3328.97 |
| 54.7 | 65.6 | 264.0 | 9.7 | 1.97 | 1939.66 | 5818.98 | 6.1 | 0.98 | 1550.00 | 4649.99 |
| 54.7 | 65.6 | 369.0 | 6.9 | 1.97 | 2711.12 | 8133.35 | 4.3 | 0.98 | 2166.47 | 6499.42 |
| 54.7 | 65.6 | 514.0 | 5.0 | 1.97 | 3776.46 | 10000.00 | 3.1 | 0.98 | 3017.80 | 9053.39 |
| 54.7 | 65.6 | 721.0 | 3.6 | 1.97 | 5297.33 | 10000.00 | 2.2 | 0.98 | 4233.14 | 10000.00 |
| 64 | 59 | 699.0 | 3.7 | 1.77 | 4618.99 | 10000.00 | 2.3 | 0.88 | 3691.07 | 10000.00 |
| 64 | 59 | 977.0 | 2.6 | 1.77 | 6456.02 | 10000.00 | 1.6 | 0.88 | 5159.05 | 10000.00 |
| 64 | 59 | 1367.0 | 1.9 | 1.77 | 9033.14 | 10000.00 | 1.2 | 0.88 | 7218.44 | 10000.00 |
| 64 | 59 | 1911.0 | 1.3 | 1.77 | 10000.00 | 10000.00 | 0.8 | 0.88 | 10000.00 | 10000.00 |
| 64 | 59 | 2672.0 | 1.0 | 1.77 | 10000.00 | 10000.00 | 0.6 | 0.88 | 10000.00 | 10000.00 |
| 64 | 59 | 3736.0 | 0.7 | 1.77 | 10000.00 | 10000.00 | 0.4 | 0.88 | 10000.00 | 10000.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 24V-6000RPM Input | 24V-8300RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.2 | 90 | 3.7 | 1297.3 | 7.92 | 58.28 | 174.83 | 1794.6 | 12.08 | 64.27 | 192.81 |
| 28.2 | 90 | 5.2 | 923.1 | 7.92 | 81.90 | 245.70 | 1276.9 | 12.08 | 90.32 | 270.97 |
| 37 | 81 | 13.7 | 350.4 | 7.12 | 194.20 | 582.59 | 484.7 | 10.87 | 214.17 | 642.52 |
| 37 | 81 | 19.2 | 250.0 | 7.12 | 272.16 | 816.48 | 345.8 | 10.87 | 300.15 | 900.46 |
| 37 | 81 | 26.9 | 178.4 | 7.12 | 381.31 | 1143.92 | 246.8 | 10.87 | 420.53 | 1261.58 |
| 37 | 81 | 35.0 | 137.1 | 7.12 | 496.13 | 1488.38 | 189.7 | 10.87 | 547.16 | 1641.47 |
| 45.8 | 73 | 51.0 | 94.1 | 6.42 | 651.53 | 1954.58 | 130.2 | 9.80 | 718.54 | 2155.62 |
| 45.8 | 73 | 71.0 | 67.6 | 6.42 | 907.03 | 2721.08 | 93.5 | 9.80 | 1000.32 | 3000.96 |
| 45.8 | 73 | 100.0 | 48.0 | 6.42 | 1277.50 | 3832.50 | 66.4 | 9.80 | 1408.90 | 4226.70 |
| 45.8 | 73 | 139.0 | 34.5 | 6.42 | 1775.73 | 5327.18 | 47.8 | 9.80 | 1958.37 | 5875.11 |
| 54.7 | 65.6 | 189.0 | 25.4 | 5.77 | 2169.72 | 6509.16 | 35.1 | 8.80 | 2392.89 | 7178.67 |
| 54.7 | 65.6 | 264.0 | 18.2 | 5.77 | 3030.72 | 9092.16 | 25.2 | 8.80 | 3342.45 | 10000.00 |
| 54.7 | 65.6 | 369.0 | 13.0 | 5.77 | 4236.12 | 10000.00 | 18.0 | 8.80 | 4671.84 | 10000.00 |
| 54.7 | 65.6 | 514.0 | 9.3 | 5.77 | 5900.72 | 10000.00 | 12.9 | 8.80 | 6507.65 | 10000.00 |
| 54.7 | 65.6 | 721.0 | 6.7 | 5.77 | 8277.08 | 10000.00 | 9.2 | 8.80 | 9128.44 | 10000.00 |
| 64 | 59 | 699.0 | 6.9 | 5.19 | 7217.18 | 10000.00 | 9.5 | 7.92 | 7959.51 | 10000.00 |
| 64 | 59 | 977.0 | 4.9 | 5.19 | 10000.00 | 10000.00 | 6.8 | 7.92 | 10000.00 | 10000.00 |
| 64 | 59 | 1367.0 | 3.5 | 5.19 | 10000.00 | 10000.00 | 4.9 | 7.92 | 10000.00 | 10000.00 |
| 64 | 59 | 1911.0 | 2.5 | 5.19 | 10000.00 | 10000.00 | 3.5 | 7.92 | 10000.00 | 10000.00 |
| 64 | 59 | 2672.0 | 1.8 | 5.19 | 10000.00 | 10000.00 | 2.5 | 7.92 | 10000.00 | 10000.00 |
| 64 | 59 | 3736.0 | 1.3 | 5.19 | 10000.00 | 10000.00 | 1.8 | 7.92 | 10000.00 | 10000.00 |

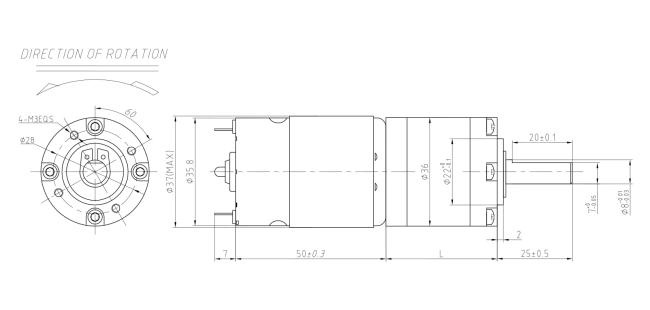

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
