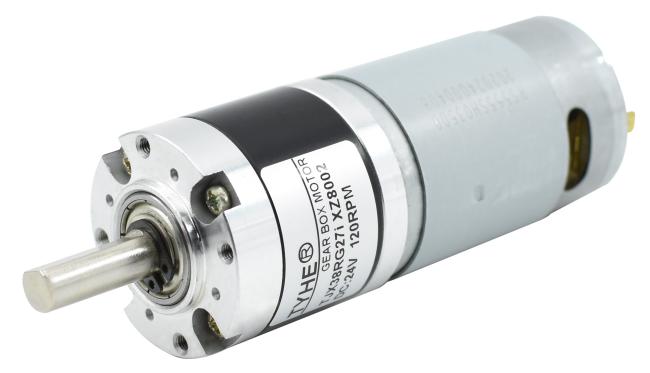

38mm 400rm Micro Dc Planetary Geared Motor Brushed 8.0Nm
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Manufacturer 38mm gearbox 12v 24v 5 rpm 400rm high torque 50kgfcm 60kgfcm 15 watt 10w 8w micro dc planetary geared motor
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS555 | 12 | 5700 | 290 | 4560 | 1.07 | 17.20 | 8.21 | 63.81 | 51.60 | 7.65 |
| RS555 | 12 | 6500 | 310 | 5200 | 1.42 | 19.50 | 10.62 | 62.24 | 58.50 | 11.48 |
| RS555 | 24 | 6500 | 170 | 5200 | 0.68 | 19.00 | 10.35 | 63.39 | 57.00 | 5.10 |
| RS555 | 24 | 7000 | 190 | 5600 | 0.87 | 22.20 | 13.02 | 62.47 | 66.60 | 7.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-5700RPM Input | 12V-6500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.2 | 90 | 3.7 | 1232.4 | 7.39 | 57.28 | 171.83 | 1405.4 | 9.56 | 64.94 | 194.81 |
| 28.2 | 90 | 5.2 | 876.9 | 7.39 | 80.50 | 241.49 | 1000.0 | 9.56 | 91.26 | 273.78 |
| 37 | 81 | 13.7 | 332.8 | 6.65 | 190.87 | 572.61 | 379.6 | 8.60 | 216.39 | 649.17 |
| 37 | 81 | 19.2 | 237.5 | 6.65 | 267.49 | 802.48 | 270.8 | 8.60 | 303.26 | 909.79 |
| 37 | 81 | 26.9 | 169.5 | 6.65 | 374.77 | 1124.31 | 193.3 | 8.60 | 424.89 | 1274.66 |
| 37 | 81 | 35.0 | 130.3 | 6.65 | 487.62 | 1462.86 | 148.6 | 8.60 | 552.83 | 1658.48 |
| 45.8 | 73 | 51.0 | 89.4 | 6.00 | 640.36 | 1921.07 | 102.0 | 7.75 | 725.99 | 2177.96 |
| 45.8 | 73 | 71.0 | 64.2 | 6.00 | 891.48 | 2674.43 | 73.2 | 7.75 | 1010.69 | 3032.06 |
| 45.8 | 73 | 100.0 | 45.6 | 6.00 | 1255.60 | 3766.80 | 52.0 | 7.75 | 1423.50 | 4270.50 |
| 45.8 | 73 | 139.0 | 32.8 | 6.00 | 1745.28 | 5235.85 | 37.4 | 7.75 | 1978.67 | 5936.00 |
| 54.7 | 65.6 | 189.0 | 24.1 | 5.39 | 2132.52 | 6397.57 | 27.5 | 6.97 | 2417.69 | 7253.06 |
| 54.7 | 65.6 | 264.0 | 17.3 | 5.39 | 2978.76 | 8936.29 | 19.7 | 6.97 | 3377.09 | 10131.26 |
| 54.7 | 65.6 | 369.0 | 12.4 | 5.39 | 4163.50 | 12490.50 | 14.1 | 6.97 | 4720.25 | 14160.74 |
| 54.7 | 65.6 | 514.0 | 8.9 | 5.39 | 5799.56 | 15000.00 | 10.1 | 6.97 | 6575.09 | 15000.00 |
| 54.7 | 65.6 | 721.0 | 6.3 | 5.39 | 8135.19 | 15000.00 | 7.2 | 6.97 | 9223.03 | 15000.00 |
| 64 | 59 | 699.0 | 6.5 | 4.85 | 7093.45 | 15000.00 | 7.4 | 6.26 | 8042.00 | 15000.00 |
| 64 | 59 | 977.0 | 4.7 | 4.85 | 9914.60 | 15000.00 | 5.3 | 6.26 | 11240.39 | 15000.00 |
| 64 | 59 | 1367.0 | 3.3 | 4.85 | 10000.00 | 15000.00 | 3.8 | 6.26 | 15000.00 | 15000.00 |
| 64 | 59 | 1911.0 | 2.4 | 4.85 | 10000.00 | 15000.00 | 2.7 | 6.26 | 15000.00 | 15000.00 |
| 64 | 59 | 2672.0 | 1.7 | 4.85 | 10000.00 | 15000.00 | 1.9 | 6.26 | 15000.00 | 15000.00 |
| 64 | 59 | 3736.0 | 1.2 | 4.85 | 10000.00 | 15000.00 | 1.4 | 6.26 | 15000.00 | 15000.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 24V-6500RPM Input | 24V-7000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.2 | 90 | 3.7 | 1405.4 | 9.31 | 63.27 | 189.81 | 1513.5 | 11.72 | 73.93 | 221.78 |
| 28.2 | 90 | 5.2 | 1000.0 | 9.31 | 88.92 | 266.76 | 1076.9 | 11.72 | 103.90 | 311.69 |
| 37 | 81 | 13.7 | 379.6 | 8.38 | 210.84 | 632.53 | 408.8 | 10.54 | 246.35 | 739.06 |
| 37 | 81 | 19.2 | 270.8 | 8.38 | 295.49 | 886.46 | 291.7 | 10.54 | 345.25 | 1035.76 |
| 37 | 81 | 26.9 | 193.3 | 8.38 | 413.99 | 1241.97 | 208.2 | 10.54 | 483.72 | 1451.15 |
| 37 | 81 | 35.0 | 148.6 | 8.38 | 538.65 | 1615.95 | 160.0 | 10.54 | 629.37 | 1888.11 |
| 45.8 | 73 | 51.0 | 102.0 | 7.55 | 707.37 | 2122.11 | 109.8 | 9.50 | 826.51 | 2479.52 |
| 45.8 | 73 | 71.0 | 73.2 | 7.55 | 984.77 | 2954.31 | 78.9 | 9.50 | 1150.63 | 3451.88 |
| 45.8 | 73 | 100.0 | 52.0 | 7.55 | 1387.00 | 4161.00 | 56.0 | 9.50 | 1620.60 | 4861.80 |
| 45.8 | 73 | 139.0 | 37.4 | 7.55 | 1927.93 | 5783.79 | 40.3 | 9.50 | 2252.63 | 6757.90 |
| 54.7 | 65.6 | 189.0 | 27.5 | 6.79 | 2355.70 | 7067.09 | 29.6 | 8.54 | 2752.44 | 8257.33 |
| 54.7 | 65.6 | 264.0 | 19.7 | 6.79 | 3290.50 | 9871.49 | 21.2 | 8.54 | 3844.68 | 11534.05 |
| 54.7 | 65.6 | 369.0 | 14.1 | 6.79 | 4599.22 | 13797.65 | 15.2 | 8.54 | 5373.82 | 15000.00 |
| 54.7 | 65.6 | 514.0 | 10.1 | 6.79 | 6406.50 | 15000.00 | 10.9 | 8.54 | 7485.48 | 15000.00 |
| 54.7 | 65.6 | 721.0 | 7.2 | 6.79 | 8986.54 | 15000.00 | 7.8 | 8.54 | 10500.07 | 15000.00 |
| 64 | 59 | 699.0 | 7.4 | 6.10 | 7835.79 | 15000.00 | 8.0 | 7.68 | 9155.50 | 15000.00 |
| 64 | 59 | 977.0 | 5.3 | 6.10 | 10952.17 | 15000.00 | 5.7 | 7.68 | 12796.75 | 15000.00 |
| 64 | 59 | 1367.0 | 3.8 | 6.10 | 15000.00 | 15000.00 | 4.1 | 7.68 | 15000.00 | 15000.00 |
| 64 | 59 | 1911.0 | 2.7 | 6.10 | 15000.00 | 15000.00 | 2.9 | 7.68 | 15000.00 | 15000.00 |
| 64 | 59 | 2672.0 | 1.9 | 6.10 | 15000.00 | 15000.00 | 2.1 | 7.68 | 15000.00 | 15000.00 |
| 64 | 59 | 3736.0 | 1.4 | 6.10 | 15000.00 | 15000.00 | 1.5 | 7.68 | 15000.00 | 15000.00 |

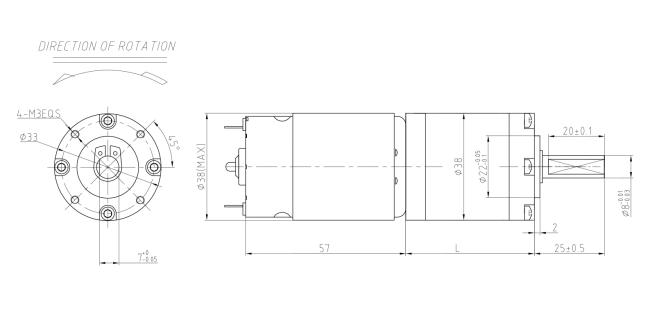

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
