50nm 24V 5rpm Planetary Brushed Gear Motor High Torque Reduction Gear Motor
Price:
Negotiation
MOQ:
100pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
60GX high torque low rpm 60mm 100w 30nm 35nm 200kgcm 50nm 24V 5rpm Brushed DC planetary Reduction gear motor for rotisserie
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY6095 | 24 | 5000 | 700 | 4000 | 3.80 | 138.53 | 58.02 | 63.62 | 415.59 | 33.00 |
| ZY6095 | 24 | 6000 | 1000 | 4800 | 5.42 | 158.52 | 79.67 | 61.29 | 475.56 | 47.00 |
| ZY6095 | 24 | 7000 | 1300 | 5600 | 7.03 | 175.85 | 103.12 | 61.09 | 527.55 | 61.00 |
| ZY6095 | 24 | 10000 | 1800 | 8000 | 9.37 | 170.52 | 142.84 | 63.54 | 511.56 | 80.00 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 24V-5000RPM Input | 24V-6000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 38.3 | 90 | 3.7 | 1081.1 | 52.22 | 461.30 | 1383.91 | 1297.3 | 71.71 | 527.87 | 1583.61 |
| 38.3 | 90 | 5.2 | 769.2 | 52.22 | 648.32 | 1944.96 | 923.1 | 71.71 | 741.87 | 2225.62 |
| 51.4 | 81 | 13.7 | 292.0 | 47.00 | 1537.27 | 4611.80 | 350.4 | 64.54 | 1759.10 | 5277.29 |
| 51.4 | 81 | 19.2 | 208.3 | 47.00 | 2154.42 | 6463.26 | 250.0 | 64.54 | 2465.30 | 7395.91 |
| 51.4 | 81 | 26.9 | 148.7 | 47.00 | 3018.43 | 9055.29 | 178.4 | 64.54 | 3453.99 | 10361.98 |
| 51.4 | 81 | 35.0 | 114.3 | 47.00 | 3927.33 | 11781.98 | 137.1 | 64.54 | 4494.04 | 13482.13 |
| 64.6 | 73 | 51.0 | 78.4 | 42.36 | 5157.47 | 15472.42 | 94.1 | 58.16 | 5901.70 | 17705.10 |
| 64.6 | 73 | 71.0 | 56.3 | 42.36 | 7180.01 | 21540.03 | 67.6 | 58.16 | 8216.09 | 24648.27 |
| 64.6 | 73 | 100.0 | 40.0 | 42.36 | 10112.69 | 30338.07 | 48.0 | 58.16 | 11571.96 | 34715.88 |
| 64.6 | 73 | 139.0 | 28.8 | 42.36 | 14056.64 | 42169.92 | 34.5 | 58.16 | 16085.02 | 48255.07 |
| 80 | 65.6 | 189.0 | 21.2 | 38.06 | 17175.50 | 50000.00 | 25.4 | 52.27 | 19653.94 | 50000.00 |
| 80 | 65.6 | 264.0 | 15.2 | 38.06 | 23991.18 | 50000.00 | 18.2 | 52.27 | 27453.13 | 50000.00 |
| 80 | 65.6 | 369.0 | 10.8 | 38.06 | 33533.13 | 50000.00 | 13.0 | 52.27 | 38371.99 | 50000.00 |
| 80 | 65.6 | 514.0 | 7.8 | 38.06 | 46710.10 | 50000.00 | 9.3 | 52.27 | 50000.00 | 50000.00 |
| 80 | 65.6 | 721.0 | 5.5 | 38.06 | 50000.00 | 50000.00 | 6.7 | 52.27 | 50000.00 | 50000.00 |
| 95 | 59 | 699.0 | 5.7 | 34.23 | 50000.00 | 50000.00 | 6.9 | 47.01 | 50000.00 | 50000.00 |
| 95 | 59 | 977.0 | 4.1 | 34.23 | 50000.00 | 50000.00 | 4.9 | 47.01 | 50000.00 | 50000.00 |
| 95 | 59 | 1367.0 | 2.9 | 34.23 | 50000.00 | 50000.00 | 3.5 | 47.01 | 50000.00 | 50000.00 |
| 95 | 59 | 1911.0 | 2.1 | 34.23 | 50000.00 | 50000.00 | 2.5 | 47.01 | 50000.00 | 50000.00 |
| 95 | 59 | 2672.0 | 1.5 | 34.23 | 50000.00 | 50000.00 | 1.8 | 47.01 | 50000.00 | 50000.00 |
| 95 | 59 | 3736.0 | 1.1 | 34.23 | 50000.00 | 50000.00 | 1.3 | 47.01 | 50000.00 | 50000.00 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 24V-7000RPM Input | 24V-10000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 38.3 | 90 | 3.7 | 1513.5 | 92.80 | 585.58 | 1756.74 | 2162.2 | 128.56 | 567.83 | 1703.49 |
| 38.3 | 90 | 5.2 | 1076.9 | 92.80 | 822.98 | 2468.93 | 1538.5 | 128.56 | 798.03 | 2394.10 |
| 51.4 | 81 | 13.7 | 408.8 | 83.52 | 1951.41 | 5854.22 | 583.9 | 115.70 | 1892.26 | 5676.78 |
| 51.4 | 81 | 19.2 | 291.7 | 83.52 | 2734.82 | 8204.46 | 416.7 | 115.70 | 2651.93 | 7955.78 |
| 51.4 | 81 | 26.9 | 208.2 | 83.52 | 3831.60 | 11494.79 | 297.4 | 115.70 | 3715.46 | 11146.38 |
| 51.4 | 81 | 35.0 | 160.0 | 83.52 | 4985.35 | 14956.04 | 228.6 | 115.70 | 4834.24 | 14502.73 |
| 64.6 | 73 | 51.0 | 109.8 | 75.27 | 6546.90 | 19640.69 | 156.9 | 104.28 | 6348.46 | 19045.38 |
| 64.6 | 73 | 71.0 | 78.9 | 75.27 | 9114.31 | 27342.92 | 112.7 | 104.28 | 8838.05 | 26514.15 |
| 64.6 | 73 | 100.0 | 56.0 | 75.27 | 12837.05 | 38511.15 | 80.0 | 104.28 | 12447.96 | 37343.88 |
| 64.6 | 73 | 139.0 | 40.3 | 75.27 | 17843.50 | 50000.00 | 57.6 | 104.28 | 17302.66 | 50000.00 |
| 80 | 65.6 | 189.0 | 29.6 | 67.64 | 21802.59 | 50000.00 | 42.3 | 93.71 | 21141.75 | 50000.00 |
| 80 | 65.6 | 264.0 | 21.2 | 67.64 | 30454.41 | 50000.00 | 30.3 | 93.71 | 29531.34 | 50000.00 |
| 80 | 65.6 | 369.0 | 15.2 | 67.64 | 42566.95 | 50000.00 | 21.7 | 93.71 | 41276.75 | 50000.00 |
| 80 | 65.6 | 514.0 | 10.9 | 67.64 | 50000.00 | 50000.00 | 15.6 | 93.71 | 50000.00 | 50000.00 |
| 80 | 65.6 | 721.0 | 7.8 | 67.64 | 50000.00 | 50000.00 | 11.1 | 93.71 | 50000.00 | 50000.00 |
| 95 | 59 | 699.0 | 8.0 | 60.84 | 50000.00 | 50000.00 | 11.4 | 84.28 | 50000.00 | 50000.00 |
| 95 | 59 | 977.0 | 5.7 | 60.84 | 50000.00 | 50000.00 | 8.2 | 84.28 | 50000.00 | 50000.00 |
| 95 | 59 | 1367.0 | 4.1 | 60.84 | 50000.00 | 50000.00 | 5.9 | 84.28 | 50000.00 | 50000.00 |
| 95 | 59 | 1911.0 | 2.9 | 60.84 | 50000.00 | 50000.00 | 4.2 | 84.28 | 50000.00 | 50000.00 |
| 95 | 59 | 2672.0 | 2.1 | 60.84 | 50000.00 | 50000.00 | 3.0 | 84.28 | 50000.00 | 50000.00 |
| 95 | 59 | 3736.0 | 1.5 | 60.84 | 50000.00 | 50000.00 | 2.1 | 84.28 | 50000.00 | 50000.00 |

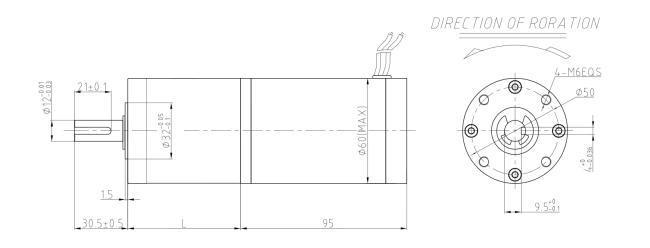

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
