Double Flat Shaft Right Angle Gearbox 10Rpm 1nm High Torque Micro Dc Gear Motor
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

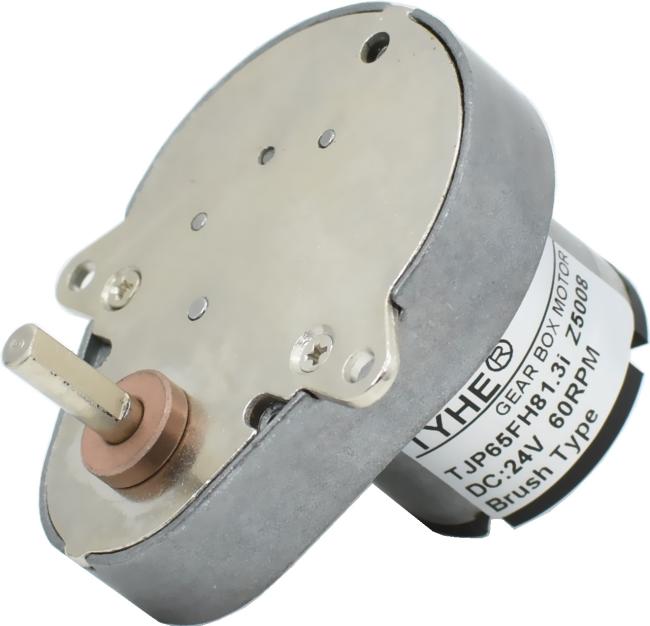

Cheap price 65*48mm right angle gearbox double flat shaft 3.7v 6v 12v 10 rpm 20rpm 1nm high torque micro dc gear motor
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY3324 | 6 | 7000 | 80 | 5600 | 0.37 | 2.35 | 1.38 | 62.78 | 7.05 | 2.95 |
| ZY3324 | 7 | 4000 | 30 | 3200 | 0.14 | 1.79 | 0.60 | 62.70 | 5.37 | 1.10 |
| ZY3324 | 12 | 5500 | 38 | 4400 | 0.13 | 2.13 | 0.98 | 64.82 | 6.39 | 0.83 |
| ZY3324 | 12 | 7300 | 64 | 5840 | 0.27 | 3.24 | 1.98 | 61.30 | 9.72 | 2.08 |
| ZY3324 | 24 | 4000 | 15 | 3200 | 0.04 | 1.87 | 0.63 | 62.66 | 5.61 | 0.23 |
| ZY3324 | 24 | 5000 | 17 | 4000 | 0.06 | 2.27 | 0.95 | 63.73 | 6.81 | 0.44 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 6V-7000RPM Input | 7V-4000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 65 | 81 | 8.3 | 674.7 | 1.12 | 15.80 | 47.40 | 385.5 | 0.49 | 12.03 | 36.10 |
| 65 | 81 | 12.0 | 466.7 | 1.12 | 22.84 | 68.53 | 266.7 | 0.49 | 17.40 | 52.20 |
| 65 | 73 | 15.7 | 356.7 | 1.01 | 26.93 | 80.80 | 203.8 | 0.44 | 20.52 | 61.55 |
| 65 | 73 | 18.2 | 307.7 | 1.01 | 31.22 | 93.67 | 175.8 | 0.44 | 23.78 | 71.35 |
| 65 | 73 | 22.6 | 247.8 | 1.01 | 38.77 | 116.31 | 141.6 | 0.44 | 29.53 | 88.59 |
| 65 | 73 | 32.4 | 172.8 | 1.01 | 55.58 | 166.75 | 98.8 | 0.44 | 42.34 | 127.01 |
| 65 | 73 | 37.0 | 151.4 | 1.01 | 63.47 | 190.42 | 86.5 | 0.44 | 48.35 | 145.04 |
| 65 | 65.6 | 81.3 | 68.9 | 0.90 | 125.33 | 376.00 | 39.4 | 0.39 | 95.47 | 286.40 |
| 65 | 65.6 | 111.0 | 50.5 | 0.90 | 171.12 | 513.35 | 28.8 | 0.39 | 130.34 | 391.02 |
| 65 | 59 | 179.0 | 31.3 | 0.81 | 248.18 | 744.55 | 17.9 | 0.35 | 189.04 | 567.13 |
| 65 | 59 | 244.0 | 23.0 | 0.81 | 338.31 | 1014.92 | 13.1 | 0.35 | 257.69 | 773.07 |
| 65 | 53 | 394.0 | 14.2 | 0.73 | 490.73 | 1472.18 | 8.1 | 0.32 | 373.79 | 1121.36 |
| 65 | 53 | 537.0 | 10.4 | 0.73 | 668.83 | 1500.00 | 6.0 | 0.32 | 509.45 | 1500.00 |
| 65 | 47.8 | 866.0 | 6.5 | 0.66 | 972.78 | 1500.00 | 3.7 | 0.29 | 740.97 | 1500.00 |
| 65 | 47.8 | 1181.0 | 4.7 | 0.66 | 1326.62 | 1500.00 | 2.7 | 0.29 | 1010.49 | 1500.00 |
| 65 | 43 | 1905.0 | 2.9 | 0.59 | 1500.00 | 1500.00 | 1.7 | 0.26 | 1466.28 | 1500.00 |
| 65 | 43 | 2597.0 | 2.2 | 0.59 | 1500.00 | 1500.00 | 1.2 | 0.26 | 1500.00 | 1500.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-5500RPM Input | 12V-7300RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 65 | 81 | 8.3 | 530.1 | 0.79 | 14.32 | 42.96 | 703.6 | 1.60 | 21.78 | 65.35 |
| 65 | 81 | 12.0 | 366.7 | 0.79 | 20.70 | 62.11 | 486.7 | 1.60 | 31.49 | 94.48 |
| 65 | 73 | 15.7 | 280.3 | 0.72 | 24.41 | 73.24 | 372.0 | 1.45 | 37.13 | 111.40 |
| 65 | 73 | 18.2 | 241.8 | 0.72 | 28.30 | 84.90 | 320.9 | 1.45 | 43.05 | 129.14 |
| 65 | 73 | 22.6 | 194.7 | 0.72 | 35.14 | 105.42 | 258.4 | 1.45 | 53.45 | 160.36 |
| 65 | 73 | 32.4 | 135.8 | 0.72 | 50.38 | 151.14 | 180.2 | 1.45 | 76.63 | 229.90 |
| 65 | 73 | 37.0 | 118.9 | 0.72 | 57.53 | 172.59 | 157.8 | 1.45 | 87.51 | 262.54 |
| 65 | 65.6 | 81.3 | 54.1 | 0.64 | 113.60 | 340.80 | 71.8 | 1.30 | 172.80 | 518.39 |
| 65 | 65.6 | 111.0 | 39.6 | 0.64 | 155.10 | 465.29 | 52.6 | 1.30 | 235.92 | 707.77 |
| 65 | 59 | 179.0 | 24.6 | 0.58 | 224.95 | 674.85 | 32.6 | 1.17 | 342.18 | 1026.53 |
| 65 | 59 | 244.0 | 18.0 | 0.58 | 306.63 | 919.90 | 23.9 | 1.17 | 466.43 | 1399.29 |
| 65 | 53 | 394.0 | 11.2 | 0.52 | 444.79 | 1334.36 | 14.8 | 1.05 | 676.58 | 1500.00 |
| 65 | 53 | 537.0 | 8.2 | 0.52 | 606.22 | 1500.00 | 10.9 | 1.05 | 922.14 | 1500.00 |
| 65 | 47.8 | 866.0 | 5.1 | 0.47 | 881.71 | 1500.00 | 6.7 | 0.95 | 1341.19 | 1500.00 |
| 65 | 47.8 | 1181.0 | 3.7 | 0.47 | 1202.42 | 1500.00 | 4.9 | 0.95 | 1500.00 | 1500.00 |
| 65 | 43 | 1905.0 | 2.3 | 0.42 | 1500.00 | 1500.00 | 3.1 | 0.85 | 1500.00 | 1500.00 |
| 65 | 43 | 2597.0 | 1.7 | 0.42 | 1500.00 | 1500.00 | 2.2 | 0.85 | 1500.00 | 1500.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 24V-4000RPM Input | 24V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 65 | 81 | 8.3 | 385.5 | 0.51 | 12.57 | 37.72 | 481.9 | 0.77 | 15.26 | 45.78 |
| 65 | 81 | 12.0 | 266.7 | 0.51 | 18.18 | 54.53 | 333.3 | 0.77 | 22.06 | 66.19 |
| 65 | 73 | 15.7 | 203.8 | 0.46 | 21.43 | 64.30 | 254.8 | 0.69 | 26.02 | 78.05 |
| 65 | 73 | 18.2 | 175.8 | 0.46 | 24.84 | 74.53 | 219.8 | 0.69 | 30.16 | 90.48 |
| 65 | 73 | 22.6 | 141.6 | 0.46 | 30.85 | 92.55 | 177.0 | 0.69 | 37.45 | 112.35 |
| 65 | 73 | 32.4 | 98.8 | 0.46 | 44.23 | 132.69 | 123.5 | 0.69 | 53.69 | 161.07 |
| 65 | 73 | 37.0 | 86.5 | 0.46 | 50.51 | 151.53 | 108.1 | 0.69 | 61.31 | 183.94 |
| 65 | 65.6 | 81.3 | 39.4 | 0.41 | 99.73 | 299.20 | 49.2 | 0.62 | 121.07 | 363.20 |
| 65 | 65.6 | 111.0 | 28.8 | 0.41 | 136.17 | 408.50 | 36.0 | 0.62 | 165.29 | 495.88 |
| 65 | 59 | 179.0 | 17.9 | 0.37 | 197.49 | 592.47 | 22.3 | 0.56 | 239.73 | 719.20 |
| 65 | 59 | 244.0 | 13.1 | 0.37 | 269.21 | 807.62 | 16.4 | 0.56 | 326.79 | 980.37 |
| 65 | 53 | 394.0 | 8.1 | 0.33 | 390.49 | 1171.48 | 10.2 | 0.50 | 474.02 | 1422.06 |
| 65 | 53 | 537.0 | 6.0 | 0.33 | 532.22 | 1500.00 | 7.4 | 0.50 | 646.06 | 1500.00 |
| 65 | 47.8 | 866.0 | 3.7 | 0.30 | 774.08 | 1500.00 | 4.6 | 0.45 | 939.66 | 1500.00 |
| 65 | 47.8 | 1181.0 | 2.7 | 0.30 | 1055.65 | 1500.00 | 3.4 | 0.45 | 1281.46 | 1500.00 |
| 65 | 43 | 1905.0 | 1.7 | 0.27 | 1500.00 | 1500.00 | 2.1 | 0.41 | 1500.00 | 1500.00 |
| 65 | 43 | 2597.0 | 1.2 | 0.27 | 1500.00 | 1500.00 | 1.5 | 0.41 | 1500.00 | 1500.00 |

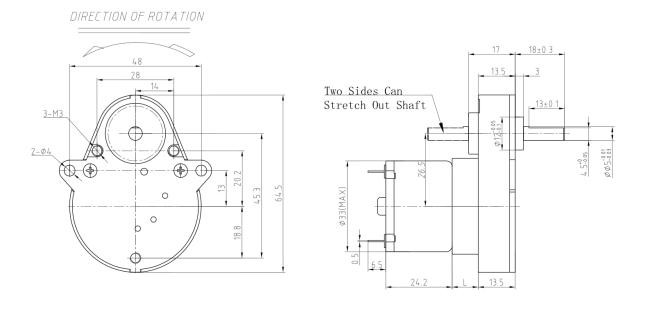

2D drawing (Gear ratio≤244)

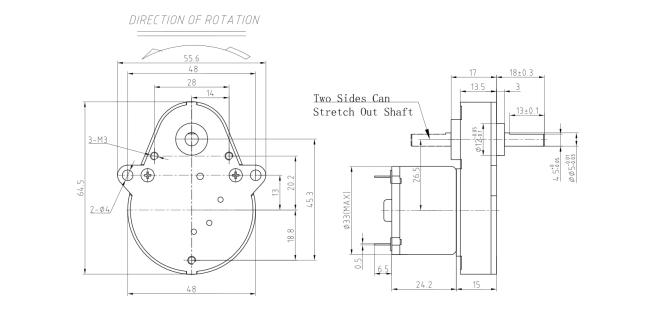

2D drawing (Gear ratio＞244)
Please let us know your requirements and we will provide you with transmission solutions.
