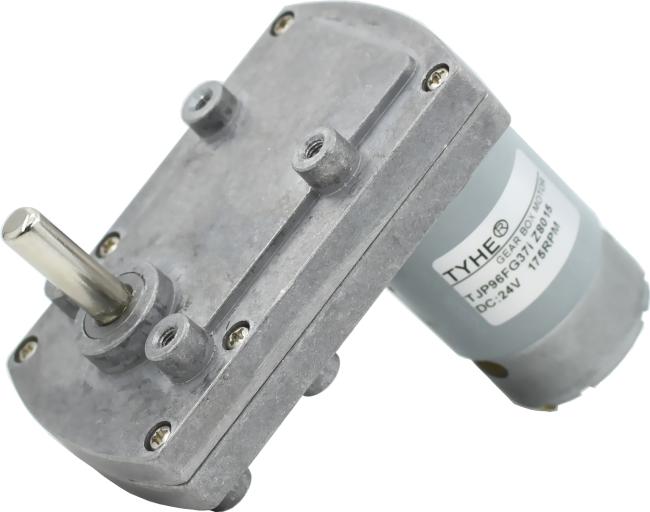

Powder Metallurgy 24v 100rpm 15w Dc Gear Motor 96mm*60mm
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Factory goods 96*60mm gearbox 12v 24v low rpm large torque 50 kgfcm 5 nm 100rpm 20 watt 15w dc gear motor for robotic
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS555 | 6 | 6000 | 560 | 4800 | 1.92 | 14.20 | 7.14 | 61.85 | 42.60 | 13.00 |
| RS555 | 12 | 3000 | 110 | 2400 | 0.42 | 12.30 | 3.09 | 62.07 | 36.90 | 3.00 |
| RS555 | 12 | 5700 | 290 | 4560 | 1.07 | 17.20 | 8.21 | 63.81 | 51.60 | 7.65 |
| RS555 | 12 | 6500 | 310 | 5200 | 1.42 | 19.50 | 10.62 | 62.24 | 58.50 | 11.48 |
| RS555 | 24 | 6500 | 170 | 5200 | 0.68 | 19.00 | 10.35 | 63.39 | 57.00 | 5.10 |
| RS555 | 24 | 7000 | 190 | 5600 | 0.87 | 22.20 | 13.02 | 62.47 | 66.60 | 7.00 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 6V-6000RPM Input | 12V-3000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 96 | 73 | 42.8 | 112.1 | 5.21 | 443.66 | 1330.99 | 56.1 | 2.26 | 384.30 | 1152.90 |
| 96 | 73 | 46.3 | 103.7 | 5.21 | 479.95 | 1439.84 | 51.8 | 2.26 | 415.73 | 1247.18 |
| 96 | 73 | 77.8 | 61.7 | 5.21 | 806.47 | 2419.42 | 30.8 | 2.26 | 698.57 | 2095.70 |
| 96 | 65.6 | 156.0 | 30.8 | 4.68 | 1453.17 | 4359.51 | 15.4 | 2.03 | 1258.73 | 3776.20 |
| 96 | 65.6 | 197.0 | 24.4 | 4.68 | 1835.09 | 5505.28 | 12.2 | 2.03 | 1589.55 | 4768.66 |
| 96 | 65.6 | 254.0 | 18.9 | 4.68 | 2366.06 | 7098.18 | 9.4 | 2.03 | 2049.48 | 6148.43 |
| 96 | 65.6 | 297.0 | 16.2 | 4.68 | 2766.61 | 8299.84 | 8.1 | 2.03 | 2396.43 | 7189.30 |
| 96 | 65.6 | 327.0 | 14.7 | 4.68 | 3046.07 | 9138.21 | 7.3 | 2.03 | 2638.50 | 7915.49 |
| 96 | 59 | 653.0 | 7.4 | 4.21 | 5470.83 | 15000.00 | 3.7 | 1.82 | 4738.82 | 14216.46 |
| 96 | 59 | 826.0 | 5.8 | 4.21 | 6920.23 | 15000.00 | 2.9 | 1.82 | 5994.28 | 15000.00 |
| 96 | 59 | 1067.0 | 4.5 | 4.21 | 8939.33 | 15000.00 | 2.2 | 1.82 | 7743.22 | 15000.00 |
| 96 | 59 | 1247.0 | 3.8 | 4.21 | 10447.37 | 15000.00 | 1.9 | 1.82 | 9049.48 | 15000.00 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 12V-5700RPM Input | 12V-6500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 96 | 73 | 42.8 | 106.5 | 6.00 | 537.40 | 1612.19 | 121.5 | 7.75 | 609.26 | 1827.77 |
| 96 | 73 | 46.3 | 98.5 | 6.00 | 581.34 | 1744.03 | 112.3 | 7.75 | 659.08 | 1977.24 |
| 96 | 73 | 77.8 | 58.6 | 6.00 | 976.86 | 2930.57 | 66.8 | 7.75 | 1107.48 | 3322.45 |
| 96 | 65.6 | 156.0 | 29.2 | 5.39 | 1760.18 | 5280.54 | 33.3 | 6.97 | 1995.55 | 5986.66 |
| 96 | 65.6 | 197.0 | 23.1 | 5.39 | 2222.79 | 6668.37 | 26.4 | 6.97 | 2520.02 | 7560.07 |
| 96 | 65.6 | 254.0 | 18.0 | 5.39 | 2865.93 | 8597.80 | 20.5 | 6.97 | 3249.17 | 9747.50 |
| 96 | 65.6 | 297.0 | 15.4 | 5.39 | 3351.11 | 10053.33 | 17.5 | 6.97 | 3799.22 | 11397.67 |
| 96 | 65.6 | 327.0 | 13.9 | 5.39 | 3689.61 | 11068.82 | 15.9 | 6.97 | 4182.98 | 12548.95 |
| 96 | 59 | 653.0 | 7.0 | 4.85 | 6626.64 | 15000.00 | 8.0 | 6.26 | 7512.77 | 15000.00 |
| 96 | 59 | 826.0 | 5.5 | 4.85 | 8382.25 | 15000.00 | 6.3 | 6.26 | 9503.13 | 15000.00 |
| 96 | 59 | 1067.0 | 4.3 | 4.85 | 10827.92 | 15000.00 | 4.9 | 6.26 | 12275.84 | 15000.00 |
| 96 | 59 | 1247.0 | 3.7 | 4.85 | 12654.56 | 15000.00 | 4.2 | 6.26 | 14346.74 | 15000.00 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 24V-6500RPM Input | 24V-7000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 96 | 73 | 42.8 | 121.5 | 7.55 | 593.64 | 1780.91 | 130.8 | 9.50 | 693.62 | 2080.85 |
| 96 | 73 | 46.3 | 112.3 | 7.55 | 642.18 | 1926.54 | 121.0 | 9.50 | 750.34 | 2251.01 |
| 96 | 73 | 77.8 | 66.8 | 7.55 | 1079.09 | 3237.26 | 72.0 | 9.50 | 1260.83 | 3782.48 |
| 96 | 65.6 | 156.0 | 33.3 | 6.79 | 1944.38 | 5833.15 | 35.9 | 8.54 | 2271.86 | 6815.58 |
| 96 | 65.6 | 197.0 | 26.4 | 6.79 | 2455.41 | 7366.22 | 28.4 | 8.54 | 2868.95 | 8606.85 |
| 96 | 65.6 | 254.0 | 20.5 | 6.79 | 3165.86 | 9497.57 | 22.0 | 8.54 | 3699.05 | 11097.16 |
| 96 | 65.6 | 297.0 | 17.5 | 6.79 | 3701.81 | 11105.42 | 18.9 | 8.54 | 4325.27 | 12975.81 |
| 96 | 65.6 | 327.0 | 15.9 | 6.79 | 4075.73 | 12227.18 | 17.1 | 8.54 | 4762.17 | 14286.50 |
| 96 | 59 | 653.0 | 8.0 | 6.10 | 7320.13 | 15000.00 | 8.6 | 7.68 | 8552.99 | 15000.00 |
| 96 | 59 | 826.0 | 6.3 | 6.10 | 9259.46 | 15000.00 | 6.8 | 7.68 | 10818.95 | 15000.00 |
| 96 | 59 | 1067.0 | 4.9 | 6.10 | 11961.07 | 15000.00 | 5.2 | 7.68 | 13975.57 | 15000.00 |
| 96 | 59 | 1247.0 | 4.2 | 6.10 | 13978.87 | 15000.00 | 4.5 | 7.68 | 15000.00 | 15000.00 |

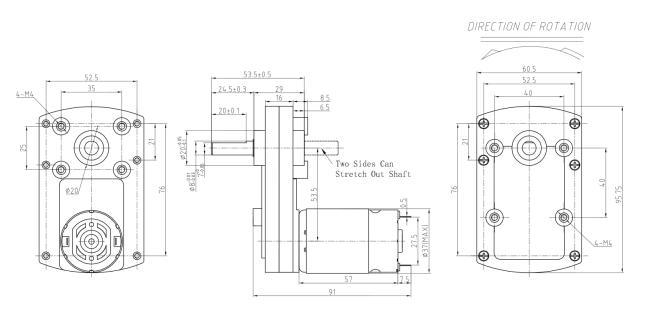

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
