Dual Shaft Micro Metal Gearmotor 3v 100Rpm Reducer Dc Motor
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
High quality 102*60mm gearmotor 3v 6v 12v 50 100 rpm 120rpm 10 watt dual shaft rs550 dc flat gear reductor motor CE Rohs
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS555 | 12 | 5700 | 290 | 4560 | 1.07 | 17.20 | 8.21 | 63.81 | 51.60 | 7.65 |
| RS555 | 12 | 6500 | 310 | 5200 | 1.42 | 19.50 | 10.62 | 62.24 | 58.50 | 11.48 |
| RS555 | 24 | 5000 | 150 | 4000 | 0.49 | 17.50 | 7.33 | 62.12 | 52.50 | 3.20 |
| RS555 | 24 | 6000 | 160 | 4800 | 0.53 | 16.80 | 8.44 | 66.18 | 50.40 | 3.50 |
| RS555 | 24 | 6500 | 170 | 5200 | 0.68 | 19.00 | 10.35 | 63.39 | 57.00 | 5.10 |
| RS555 | 24 | 7000 | 190 | 5600 | 0.87 | 22.20 | 13.02 | 62.47 | 66.60 | 7.00 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 12V-5700RPM Input | 12V-6500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 102 | 73 | 23.0 | 198.3 | 6.00 | 288.79 | 866.36 | 226.1 | 7.75 | 327.41 | 982.22 |
| 102 | 73 | 31.5 | 144.8 | 6.00 | 395.51 | 1186.54 | 165.1 | 7.75 | 448.40 | 1345.21 |
| 102 | 73 | 57.0 | 80.0 | 6.00 | 715.69 | 2147.08 | 91.2 | 7.75 | 811.40 | 2434.19 |
| 102 | 73 | 80.0 | 57.0 | 6.00 | 1004.48 | 3013.44 | 65.0 | 7.75 | 1138.80 | 3416.40 |
| 102 | 73 | 108.0 | 42.2 | 6.00 | 1356.05 | 4068.14 | 48.1 | 7.75 | 1537.38 | 4612.14 |
| 102 | 73 | 127.0 | 35.9 | 6.00 | 1594.61 | 4783.84 | 40.9 | 7.75 | 1807.85 | 5423.54 |
| 102 | 59 | 198.0 | 23.0 | 4.85 | 2009.30 | 6027.91 | 26.3 | 6.26 | 2277.99 | 6833.97 |
| 102 | 59 | 234.0 | 19.5 | 4.85 | 2374.63 | 7123.90 | 22.2 | 6.26 | 2692.17 | 8076.51 |
| 102 | 59 | 272.0 | 16.8 | 4.85 | 2760.26 | 8280.77 | 19.1 | 6.26 | 3129.36 | 9388.08 |
| 102 | 59 | 322.0 | 14.2 | 4.85 | 3267.66 | 9802.97 | 16.1 | 6.26 | 3704.61 | 11113.83 |
| 102 | 59 | 374.0 | 12.2 | 4.85 | 3795.35 | 11386.06 | 13.9 | 6.26 | 4302.87 | 12908.61 |
| 102 | 59 | 443.0 | 10.3 | 4.85 | 4495.56 | 13486.69 | 11.7 | 6.26 | 5096.72 | 15000.00 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 24V-5000RPM Input | 24V-6000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 102 | 73 | 23.0 | 173.9 | 5.35 | 293.83 | 881.48 | 208.7 | 6.16 | 282.07 | 846.22 |
| 102 | 73 | 31.5 | 127.0 | 5.35 | 402.41 | 1207.24 | 152.4 | 6.16 | 386.32 | 1158.95 |
| 102 | 73 | 57.0 | 70.2 | 5.35 | 728.18 | 2184.53 | 84.2 | 6.16 | 699.05 | 2097.14 |
| 102 | 73 | 80.0 | 50.0 | 5.35 | 1022.00 | 3066.00 | 60.0 | 6.16 | 981.12 | 2943.36 |
| 102 | 73 | 108.0 | 37.0 | 5.35 | 1379.70 | 4139.10 | 44.4 | 6.16 | 1324.51 | 3973.54 |
| 102 | 73 | 127.0 | 31.5 | 5.35 | 1622.43 | 4867.28 | 37.8 | 6.16 | 1557.53 | 4672.58 |
| 102 | 59 | 198.0 | 20.2 | 4.32 | 2044.35 | 6133.05 | 24.2 | 4.98 | 1962.58 | 5887.73 |
| 102 | 59 | 234.0 | 17.1 | 4.32 | 2416.05 | 7248.15 | 20.5 | 4.98 | 2319.41 | 6958.22 |
| 102 | 59 | 272.0 | 14.7 | 4.32 | 2808.40 | 8425.20 | 17.6 | 4.98 | 2696.06 | 8088.19 |
| 102 | 59 | 322.0 | 12.4 | 4.32 | 3324.65 | 9973.95 | 14.9 | 4.98 | 3191.66 | 9574.99 |
| 102 | 59 | 374.0 | 10.7 | 4.32 | 3861.55 | 11584.65 | 12.8 | 4.98 | 3707.09 | 11121.26 |
| 102 | 59 | 443.0 | 9.0 | 4.32 | 4573.98 | 13721.93 | 10.8 | 4.98 | 4391.02 | 13173.05 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 24V-6500RPM Input | 24V-7000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 102 | 73 | 23.0 | 226.1 | 7.55 | 319.01 | 957.03 | 243.5 | 9.50 | 372.74 | 1118.21 |
| 102 | 73 | 31.5 | 165.1 | 7.55 | 436.91 | 1310.72 | 177.8 | 9.50 | 510.49 | 1531.47 |
| 102 | 73 | 57.0 | 91.2 | 7.55 | 790.59 | 2371.77 | 98.2 | 9.50 | 923.74 | 2771.23 |
| 102 | 73 | 80.0 | 65.0 | 7.55 | 1109.60 | 3328.80 | 70.0 | 9.50 | 1296.48 | 3889.44 |
| 102 | 73 | 108.0 | 48.1 | 7.55 | 1497.96 | 4493.88 | 51.9 | 9.50 | 1750.25 | 5250.74 |
| 102 | 73 | 127.0 | 40.9 | 7.55 | 1761.49 | 5284.47 | 44.1 | 9.50 | 2058.16 | 6174.49 |
| 102 | 59 | 198.0 | 26.3 | 6.10 | 2219.58 | 6658.74 | 28.3 | 7.68 | 2593.40 | 7780.21 |
| 102 | 59 | 234.0 | 22.2 | 6.10 | 2623.14 | 7869.42 | 23.9 | 7.68 | 3064.93 | 9194.80 |
| 102 | 59 | 272.0 | 19.1 | 6.10 | 3049.12 | 9147.36 | 20.6 | 7.68 | 3562.66 | 10687.97 |
| 102 | 59 | 322.0 | 16.1 | 6.10 | 3609.62 | 10828.86 | 17.4 | 7.68 | 4217.56 | 12652.67 |
| 102 | 59 | 374.0 | 13.9 | 6.10 | 4192.54 | 12577.62 | 15.0 | 7.68 | 4898.65 | 14695.96 |
| 102 | 59 | 443.0 | 11.7 | 6.10 | 4966.03 | 14898.09 | 12.6 | 7.68 | 5802.41 | 15000.00 |

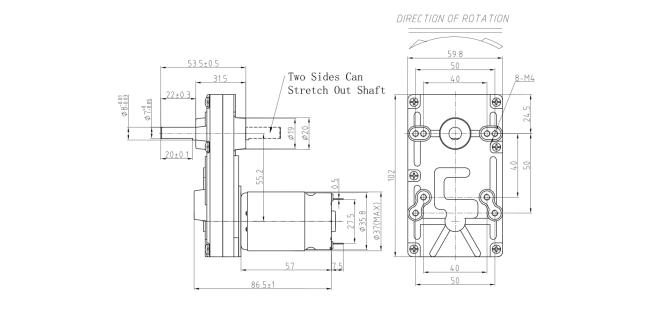

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
