D37mm Spur Gearbox 12v 24v 1000rpm 30 Rpm 15 Watt 20w 10kgcm High Speed Dc Geared Motor For Auto Cooker
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Miniature zhengk gm25-bk370 25mm 3 volt 3.6v 12v rf370 12 volt 30rpm 2watts 0.6kg torque dc gear motor
Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| RF370 | 6 | 6500 | 70 | 5200 | 0.23 | 1.58 | 0.86 | 62.34 | 4.74 | 1.50 | |||||||||
| RF370 | 6 | 7500 | 80 | 6000 | 0.26 | 1.60 | 1.01 | 65.06 | 4.80 | 1.65 | |||||||||
| RF370 | 12 | 5000 | 25 | 4000 | 0.09 | 1.62 | 0.68 | 62.25 | 4.86 | 0.64 | |||||||||
| RF370 | 12 | 6500 | 30 | 5200 | 0.12 | 1.72 | 0.94 | 62.86 | 5.16 | 0.95 | |||||||||
| RF370 | 12 | 16000 | 130 | 12800 | 0.48 | 2.71 | 3.63 | 62.52 | 8.13 | 3.47 | |||||||||
| RF370 | 24 | 5000 | 20 | 4000 | 0.05 | 1.93 | 0.81 | 62.18 | 5.79 | 0.29 | |||||||||
| RF370 | 24 | 6500 | 20 | 5200 | 0.07 | 1.82 | 0.99 | 61.94 | 5.46 | 0.44 | |||||||||

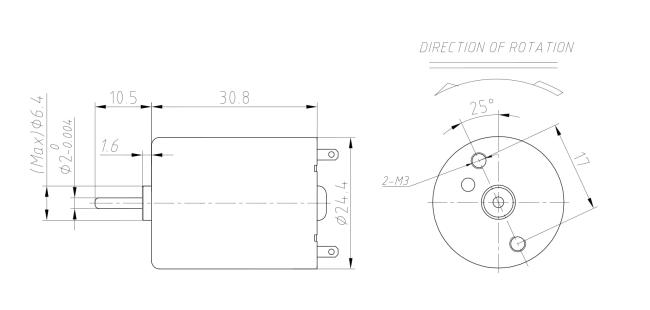

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
