High Power Electric Brushed Dc Motor 42mm 40v 50w 3500Rpm
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Manufacturer 42mm 12v 40v 24 v 12 voltio 50w 50 watt 60 watt 3500 rpm 7000rpm high power electric brushed dc motor for car brake
Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| TH42S | 12 | 4000 | 300 | 3200 | 1.20 | 26.50 | 8.88 | 61.66 | 79.50 | 7.50 | |||||||||
| TH42S | 12 | 7500 | 750 | 6000 | 3.00 | 35.50 | 22.30 | 61.95 | 106.50 | 18.75 | |||||||||
| TH42S | 24 | 2300 | 90 | 1840 | 0.36 | 28.10 | 5.41 | 62.66 | 84.30 | 2.25 | |||||||||
| TH42S | 24 | 5500 | 260 | 4400 | 1.04 | 33.50 | 15.43 | 61.84 | 100.50 | 6.50 |
|||||||||

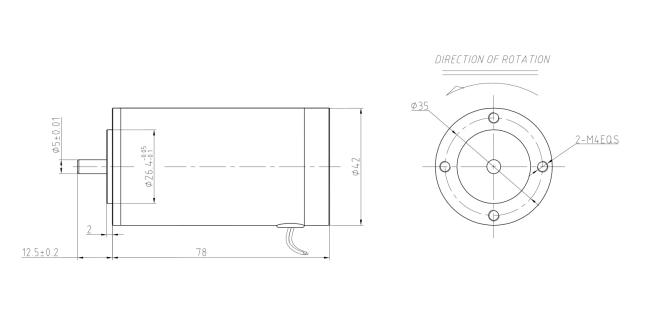

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
