RS395 30rpm 12v 24v Brushed Micro Gear Motor 160mA ISO9001
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
RS395 30rpm High Rpm 30kg Torque 7.2v 12v 24v Brushed Micro 6w 7w Gear Motor
Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| RS395 | 12 | 4500 | 100 | 3600 | 0.29 | 5.90 | 2.22 | 63.55 | 17.70 | 1.70 | |||||||||
| RS395 | 12 | 7500 | 160 | 6000 | 0.62 | 7.30 | 4.59 | 62.15 | 21.90 | 4.50 | |||||||||
| RS395 | 24 | 5000 | 50 | 4000 | 0.17 | 6.30 | 2.64 | 64.68 | 18.90 | 1.14 | |||||||||
| RS395 | 24 | 5300 | 60 | 4240 | 0.20 | 6.70 | 2.97 | 62.49 | 20.10 | 1.30 | |||||||||
| RS395 | 24 | 7500 | 75 | 6000 | 0.27 | 6.72 | 4.22 | 64.95 | 20.16 | 1.90 | |||||||||

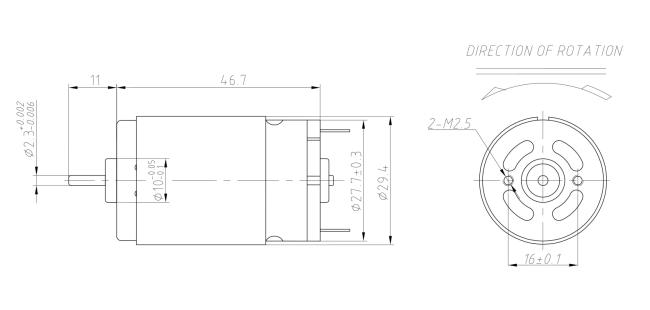

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
