Powder Metallurgy Gears 12v Mini Dc Gearbox Motor For Electric Lock
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Small Size 25mm 3v 6v 9v 12v 24v 05rpm 1nm 5 Watt Mini Dc Geared Box Motor For Actuator Vending Machines Electric Lock

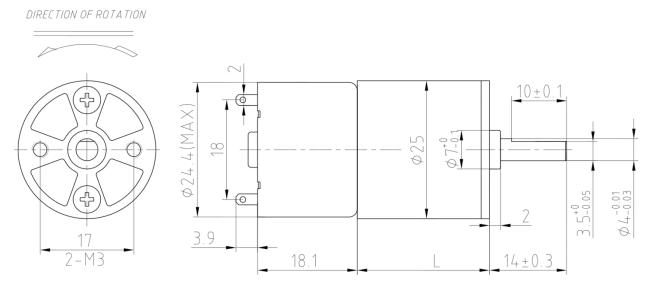

2D drawing
| Model | End cover dimensions | Motor type | Regular Shaft | Weight |
| TJZ25RB | φ25mm | RF310 | 4mm-D cut | 80g |
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| 310 | 6 | 3000 | 10 | 2400 | 0.03 | 0.46 | 0.12 | 62.49 | 1.38 | 0.19 |
| 310 | 6 | 5000 | 26 | 4000 | 0.08 | 0.72 | 0.30 | 62.31 | 2.16 | 0.50 |
| 310 | 6 | 6000 | 31 | 4800 | 0.11 | 0.79 | 0.40 | 62.14 | 2.37 | 0.72 |
| 310 | 6 | 6800 | 45 | 5440 | 0.13 | 0.84 | 0.48 | 61.74 | 2.52 | 0.74 |
| DC Motor With Gearbox Technical Data (0.3M) | ||||||||||
| Gearbox parameters | 6V-3000RPM Input | 6V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 19 | 81 | 4.8 | 500.0 | 0.09 | 1.79 | 5.37 | 833.3 | 0.24 | 2.80 | 8.40 |
| 19 | 81 | 5.7 | 421.1 | 0.09 | 2.12 | 6.37 | 701.8 | 0.24 | 3.32 | 9.97 |
| 19 | 73 | 10.6 | 226.4 | 0.08 | 3.56 | 10.68 | 377.4 | 0.22 | 5.57 | 16.71 |
| 19 | 73 | 12.5 | 192.0 | 0.08 | 4.20 | 12.59 | 320.0 | 0.22 | 6.57 | 19.71 |
| 19 | 73 | 14.7 | 163.3 | 0.08 | 4.94 | 14.81 | 272.1 | 0.22 | 7.73 | 23.18 |
| 19 | 65.6 | 23.0 | 104.3 | 0.08 | 6.94 | 20.82 | 173.9 | 0.20 | 10.86 | 32.59 |
| 19 | 65.6 | 27.5 | 87.3 | 0.08 | 8.30 | 24.90 | 145.5 | 0.20 | 12.99 | 38.97 |
| 19 | 65.6 | 32.0 | 75.0 | 0.08 | 9.66 | 28.97 | 125.0 | 0.20 | 15.11 | 45.34 |
| 19 | 65.6 | 38.0 | 63.2 | 0.08 | 11.47 | 34.40 | 105.3 | 0.20 | 17.95 | 53.84 |
| 22 | 59 | 51.5 | 46.6 | 0.07 | 13.98 | 41.93 | 77.7 | 0.18 | 21.88 | 65.63 |
| 22 | 59 | 60.5 | 39.7 | 0.07 | 16.42 | 49.26 | 66.1 | 0.18 | 25.70 | 77.10 |
| 22 | 59 | 71.0 | 33.8 | 0.07 | 19.27 | 57.81 | 56.3 | 0.18 | 30.16 | 90.48 |
| 22 | 59 | 83.0 | 28.9 | 0.07 | 22.53 | 67.58 | 48.2 | 0.18 | 35.26 | 105.78 |
| 22 | 59 | 98.0 | 24.5 | 0.07 | 26.60 | 79.79 | 40.8 | 0.18 | 41.63 | 124.89 |
| 24 | 53 | 113.0 | 21.2 | 0.06 | 27.55 | 82.65 | 35.4 | 0.16 | 43.12 | 129.36 |
| 24 | 53 | 133.0 | 18.0 | 0.06 | 32.43 | 97.28 | 30.1 | 0.16 | 50.75 | 152.26 |
| 24 | 53 | 156.0 | 15.4 | 0.06 | 38.03 | 114.10 | 25.6 | 0.16 | 59.53 | 178.59 |
| 24 | 53 | 184.0 | 13.0 | 0.06 | 44.86 | 134.58 | 21.7 | 0.16 | 70.21 | 210.64 |
| 24 | 53 | 215.0 | 11.2 | 0.06 | 52.42 | 157.25 | 18.6 | 0.16 | 82.04 | 246.13 |
| 24 | 53 | 253.0 | 9.5 | 0.06 | 61.68 | 185.04 | 15.8 | 0.16 | 96.54 | 289.63 |
| 27 | 47.8 | 249.0 | 9.6 | 0.06 | 54.75 | 164.25 | 16.1 | 0.14 | 85.70 | 257.09 |
| 27 | 47.8 | 293.0 | 8.2 | 0.06 | 64.42 | 193.27 | 13.7 | 0.14 | 100.84 | 302.52 |
| 27 | 47.8 | 344.0 | 7.0 | 0.06 | 75.64 | 226.92 | 11.6 | 0.14 | 118.39 | 355.17 |
| 27 | 47.8 | 404.0 | 5.9 | 0.06 | 88.83 | 266.49 | 9.9 | 0.14 | 139.04 | 417.12 |
| 27 | 47.8 | 474.0 | 5.1 | 0.06 | 104.22 | 312.67 | 8.4 | 0.14 | 163.13 | 489.40 |
| 27 | 47.8 | 557.0 | 4.3 | 0.06 | 122.47 | 367.42 | 7.2 | 0.14 | 191.70 | 575.09 |
| 27 | 47.8 | 654.0 | 3.7 | 0.06 | 143.80 | 431.40 | 6.1 | 0.14 | 225.08 | 675.24 |
| DC Motor With Gearbox Technical Data (0.3M) | ||||||||||
| Gearbox parameters | 6V-6000RPM Input | 6V-6800RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 19 | 81 | 4.8 | 1000.0 | 0.32 | 3.07 | 9.21 | 1133.3 | 0.39 | 3.27 | 9.80 |
| 19 | 81 | 5.7 | 842.1 | 0.32 | 3.65 | 10.94 | 954.4 | 0.39 | 3.88 | 11.63 |
| 19 | 73 | 10.6 | 452.8 | 0.29 | 6.11 | 18.34 | 513.2 | 0.35 | 6.50 | 19.50 |
| 19 | 73 | 12.5 | 384.0 | 0.29 | 7.21 | 21.63 | 435.2 | 0.35 | 7.67 | 23.00 |
| 19 | 73 | 14.7 | 326.5 | 0.29 | 8.48 | 25.43 | 370.1 | 0.35 | 9.01 | 27.04 |
| 19 | 65.6 | 23.0 | 208.7 | 0.26 | 11.92 | 35.76 | 236.5 | 0.31 | 12.67 | 38.02 |
| 19 | 65.6 | 27.5 | 174.5 | 0.26 | 14.25 | 42.75 | 197.8 | 0.31 | 15.15 | 45.46 |
| 19 | 65.6 | 32.0 | 150.0 | 0.26 | 16.58 | 49.75 | 170.0 | 0.31 | 17.63 | 52.90 |
| 19 | 65.6 | 38.0 | 126.3 | 0.26 | 19.69 | 59.08 | 143.2 | 0.31 | 20.94 | 62.82 |
| 22 | 59 | 51.5 | 93.2 | 0.23 | 24.00 | 72.01 | 105.6 | 0.28 | 25.52 | 76.57 |
| 22 | 59 | 60.5 | 79.3 | 0.23 | 28.20 | 84.60 | 89.9 | 0.28 | 29.98 | 89.95 |
| 22 | 59 | 71.0 | 67.6 | 0.23 | 33.09 | 99.28 | 76.6 | 0.28 | 35.19 | 105.56 |
| 22 | 59 | 83.0 | 57.8 | 0.23 | 38.69 | 116.06 | 65.5 | 0.28 | 41.13 | 123.40 |
| 22 | 59 | 98.0 | 49.0 | 0.23 | 45.68 | 137.03 | 55.5 | 0.28 | 48.57 | 145.71 |
| 24 | 53 | 113.0 | 42.5 | 0.21 | 47.31 | 141.94 | 48.1 | 0.25 | 50.31 | 150.92 |
| 24 | 53 | 133.0 | 36.1 | 0.21 | 55.69 | 167.06 | 40.9 | 0.25 | 59.21 | 177.63 |
| 24 | 53 | 156.0 | 30.8 | 0.21 | 65.32 | 195.95 | 34.9 | 0.25 | 69.45 | 208.35 |
| 24 | 53 | 184.0 | 26.1 | 0.21 | 77.04 | 231.12 | 29.6 | 0.25 | 81.92 | 245.75 |
| 24 | 53 | 215.0 | 22.3 | 0.21 | 90.02 | 270.06 | 25.3 | 0.25 | 95.72 | 287.15 |
| 24 | 53 | 253.0 | 19.0 | 0.21 | 105.93 | 317.79 | 21.5 | 0.25 | 112.64 | 337.91 |
| 27 | 47.8 | 249.0 | 19.3 | 0.19 | 94.03 | 282.08 | 21.8 | 0.23 | 99.98 | 299.94 |
| 27 | 47.8 | 293.0 | 16.4 | 0.19 | 110.64 | 331.93 | 18.6 | 0.23 | 117.65 | 352.94 |
| 27 | 47.8 | 344.0 | 14.0 | 0.19 | 129.90 | 389.70 | 15.8 | 0.23 | 138.12 | 414.37 |
| 27 | 47.8 | 404.0 | 11.9 | 0.19 | 152.56 | 457.68 | 13.5 | 0.23 | 162.21 | 486.64 |
| 27 | 47.8 | 474.0 | 10.1 | 0.19 | 178.99 | 536.98 | 11.5 | 0.23 | 190.32 | 570.96 |
| 27 | 47.8 | 557.0 | 8.6 | 0.19 | 210.33 | 631.00 | 9.8 | 0.23 | 223.65 | 670.94 |
| 27 | 47.8 | 654.0 | 7.3 | 0.19 | 246.96 | 740.89 | 8.3 | 0.23 | 262.59 | 787.78 |
Please let us know your requirements and we will provide you with transmission solutions.
