Reversible Tyhe Dc Geared Motor 37mm Gearbox 12v High Torque Low Speed
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Reversible tyhe 37mm gearbox 12 volt 12v 24v 35w 25 watt 15rpm 20rpm 25 rpm 2nm high torque low speed dc geared motor

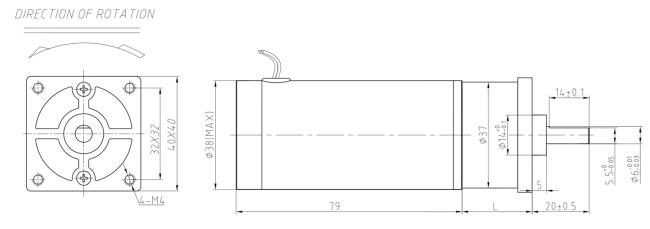

2D drawing
| Model | End cover dimensions | Motor type | Regular Shaft | Weight |
| TJZ37FOO | φ37mm | TH38S-1 | 6mm-D cut | 360g |
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY3879 | 12 | 4500 | 350 | 3600 | 1.23 | 24.50 | 9.24 | 62.83 | 73.50 | 7.00 |
| ZY3879 | 12 | 5000 | 400 | 4000 | 1.35 | 24.50 | 10.26 | 63.34 | 73.50 | 7.50 |
| ZY3879 | 12 | 8000 | 900 | 6400 | 2.65 | 29.70 | 19.90 | 62.59 | 89.10 | 13.00 |
| ZY3879 | 24 | 3500 | 100 | 2800 | 0.48 | 24.90 | 7.30 | 63.37 | 74.70 | 3.30 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-4500RPM Input | 12V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 4.6 | 782.6 | 7.48 | 91.29 | 273.86 | 869.6 | 8.31 | 91.29 | 273.86 |
| 22.5 | 81 | 5.9 | 610.2 | 7.48 | 117.09 | 351.26 | 678.0 | 8.31 | 117.09 | 351.26 |
| 22.5 | 73 | 8.4 | 428.6 | 6.74 | 150.23 | 450.70 | 476.2 | 7.49 | 150.23 | 450.70 |
| 22.5 | 73 | 10.6 | 339.6 | 6.74 | 189.58 | 568.74 | 377.4 | 7.49 | 189.58 | 568.74 |
| 22.5 | 73 | 13.5 | 266.7 | 6.74 | 241.45 | 724.34 | 296.3 | 7.49 | 241.45 | 724.34 |
| 24.5 | 65.6 | 19.3 | 186.5 | 6.06 | 310.19 | 930.57 | 207.3 | 6.73 | 310.19 | 930.57 |
| 24.5 | 65.6 | 24.4 | 147.5 | 6.06 | 392.16 | 1176.47 | 163.9 | 6.73 | 392.16 | 1176.47 |
| 24.5 | 65.6 | 31.6 | 113.9 | 6.06 | 507.88 | 1523.63 | 126.6 | 6.73 | 507.88 | 1523.63 |
| 26.5 | 59 | 45.0 | 80.0 | 5.45 | 650.48 | 1951.43 | 88.9 | 6.05 | 650.48 | 1951.43 |
| 26.5 | 59 | 57.0 | 63.2 | 5.45 | 823.94 | 2471.81 | 70.2 | 6.05 | 823.94 | 2471.81 |
| 26.5 | 59 | 73.6 | 48.9 | 5.45 | 1063.89 | 2500.00 | 54.3 | 6.05 | 1063.89 | 2500.00 |
| 29.5 | 53 | 105.0 | 34.3 | 4.89 | 1363.43 | 2500.00 | 38.1 | 5.44 | 1363.43 | 2500.00 |
| 29.5 | 53 | 133.0 | 27.1 | 4.89 | 1727.01 | 2500.00 | 30.1 | 5.44 | 1727.01 | 2500.00 |
| 29.5 | 53 | 172.0 | 20.9 | 4.89 | 2233.42 | 2500.00 | 23.3 | 5.44 | 2233.42 | 2500.00 |
| 32.5 | 47.8 | 245.0 | 14.7 | 4.41 | 2500.00 | 2500.00 | 16.3 | 4.91 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 310.0 | 11.6 | 4.41 | 2500.00 | 2500.00 | 12.9 | 4.91 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 401.0 | 9.0 | 4.41 | 2500.00 | 2500.00 | 10.0 | 4.91 | 2500.00 | 2500.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-8000RPM Input | 24V-3500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 4.6 | 1391.3 | 16.12 | 110.66 | 331.99 | 608.7 | 5.91 | 92.78 | 278.33 |
| 22.5 | 81 | 5.9 | 1084.7 | 16.12 | 141.94 | 425.81 | 474.6 | 5.91 | 119.00 | 356.99 |
| 22.5 | 73 | 8.4 | 761.9 | 14.53 | 182.12 | 546.36 | 333.3 | 5.33 | 152.69 | 458.06 |
| 22.5 | 73 | 10.6 | 603.8 | 14.53 | 229.82 | 689.46 | 264.2 | 5.33 | 192.68 | 578.03 |
| 22.5 | 73 | 13.5 | 474.1 | 14.53 | 292.69 | 878.08 | 207.4 | 5.33 | 245.39 | 736.17 |
| 24.5 | 65.6 | 19.3 | 331.6 | 13.06 | 376.03 | 1128.08 | 145.1 | 4.79 | 315.25 | 945.76 |
| 24.5 | 65.6 | 24.4 | 262.3 | 13.06 | 475.39 | 1426.17 | 114.8 | 4.79 | 398.56 | 1195.68 |
| 24.5 | 65.6 | 31.6 | 202.5 | 13.06 | 615.67 | 1847.01 | 88.6 | 4.79 | 516.17 | 1548.50 |
| 26.5 | 59 | 45.0 | 142.2 | 11.74 | 788.54 | 2365.61 | 62.2 | 4.31 | 661.10 | 1983.29 |
| 26.5 | 59 | 57.0 | 112.3 | 11.74 | 998.81 | 2500.00 | 49.1 | 4.31 | 837.39 | 2500.00 |
| 26.5 | 59 | 73.6 | 87.0 | 11.74 | 1289.69 | 2500.00 | 38.0 | 4.31 | 1081.26 | 2500.00 |
| 29.5 | 53 | 105.0 | 61.0 | 10.55 | 1652.81 | 2500.00 | 26.7 | 3.87 | 1385.69 | 2500.00 |
| 29.5 | 53 | 133.0 | 48.1 | 10.55 | 2093.55 | 2500.00 | 21.1 | 3.87 | 1755.20 | 2500.00 |
| 29.5 | 53 | 172.0 | 37.2 | 10.55 | 2500.00 | 2500.00 | 16.3 | 3.87 | 2269.88 | 2500.00 |
| 32.5 | 47.8 | 245.0 | 26.1 | 9.51 | 2500.00 | 2500.00 | 11.4 | 3.49 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 310.0 | 20.6 | 9.51 | 2500.00 | 2500.00 | 9.0 | 3.49 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 401.0 | 16.0 | 9.51 | 2500.00 | 2500.00 | 7.0 | 3.49 | 2500.00 | 2500.00 |
Please let us know your requirements and we will provide you with transmission solutions.
