Reversible Dc Spur Gear Motor Miniature Gearbox 15rpm High Torque
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Reversible 37mm miniature gear box 12v 24v 10 rpm 8rpm 14rpm 15rpm high torque 20kg 15kgcm dc spur gear motor for bbq
| Model | End cover dimensions | Motor type | Regular Shaft | Weight |
| TJZ37RGa | φ37mm | RS530 | 6mm-D cut | 180g |
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS530 | 12 | 3500 | 60 | 2800 | 0.21 | 5.30 | 1.55 | 61.91 | 15.90 | 1.43 |
| RS530 | 12 | 5000 | 160 | 4000 | 0.49 | 8.90 | 3.73 | 62.86 | 26.70 | 3.05 |
| RS530 | 24 | 3500 | 35 | 2800 | 0.12 | 5.90 | 1.73 | 62.68 | 17.70 | 0.75 |
| RS530 | 24 | 5000 | 80 | 4000 | 0.25 | 9.12 | 3.82 | 62.83 | 27.36 | 1.60 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-3500RPM Input | 12V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 4.6 | 608.7 | 1.26 | 19.75 | 59.24 | 869.6 | 3.02 | 33.16 | 99.48 |
| 22.5 | 81 | 5.9 | 474.6 | 1.26 | 25.33 | 75.99 | 678.0 | 3.02 | 42.53 | 127.60 |
| 22.5 | 81 | 6.9 | 405.8 | 1.26 | 29.62 | 88.87 | 579.7 | 3.02 | 49.74 | 149.23 |
| 22.5 | 73 | 8.4 | 333.3 | 1.13 | 32.50 | 97.50 | 476.2 | 2.72 | 54.57 | 163.72 |
| 22.5 | 73 | 10.6 | 264.2 | 1.13 | 41.01 | 123.03 | 377.4 | 2.72 | 68.87 | 206.60 |
| 22.5 | 73 | 13.5 | 207.4 | 1.13 | 52.23 | 156.69 | 296.3 | 2.72 | 87.71 | 263.13 |
| 22.5 | 73 | 16.0 | 175.0 | 1.13 | 61.90 | 185.71 | 250.0 | 2.72 | 103.95 | 311.86 |
| 24.5 | 65.6 | 19.3 | 145.1 | 1.02 | 67.10 | 201.31 | 207.3 | 2.45 | 112.68 | 338.04 |
| 24.5 | 65.6 | 24.4 | 114.8 | 1.02 | 84.83 | 254.50 | 163.9 | 2.45 | 142.46 | 427.37 |
| 24.5 | 65.6 | 31.6 | 88.6 | 1.02 | 109.87 | 329.60 | 126.6 | 2.45 | 184.49 | 553.48 |
| 24.5 | 65.6 | 37.0 | 75.7 | 1.02 | 128.64 | 385.92 | 108.1 | 2.45 | 216.02 | 648.06 |
| 26.5 | 59 | 45.0 | 62.2 | 0.92 | 140.72 | 422.15 | 88.9 | 2.20 | 236.30 | 708.89 |
| 26.5 | 59 | 57.0 | 49.1 | 0.92 | 178.24 | 534.72 | 70.2 | 2.20 | 299.31 | 897.92 |
| 26.5 | 59 | 73.6 | 38.0 | 0.92 | 230.15 | 690.44 | 54.3 | 2.20 | 386.47 | 1159.42 |
| 26.5 | 59 | 86.0 | 32.6 | 0.92 | 268.92 | 806.77 | 46.5 | 2.20 | 451.59 | 1354.76 |
| 26.5 | 59 | 95.0 | 29.5 | 0.92 | 297.07 | 891.20 | 42.1 | 2.20 | 498.85 | 1496.54 |
| 29.5 | 53 | 105.0 | 26.7 | 0.82 | 294.95 | 884.84 | 38.1 | 1.98 | 495.29 | 1485.86 |
| 29.5 | 53 | 133.0 | 21.1 | 0.82 | 373.60 | 1120.79 | 30.1 | 1.98 | 627.36 | 1882.08 |
| 29.5 | 53 | 172.0 | 16.3 | 0.82 | 483.15 | 1449.44 | 23.3 | 1.98 | 811.32 | 2433.97 |
| 29.5 | 53 | 201.0 | 13.9 | 0.82 | 564.61 | 1693.83 | 19.9 | 1.98 | 948.12 | 2500.00 |
| 29.5 | 53 | 221.0 | 12.7 | 0.82 | 620.79 | 1862.37 | 18.1 | 1.98 | 1042.46 | 2500.00 |
| 29.5 | 53 | 244.0 | 11.5 | 0.82 | 685.40 | 2056.19 | 16.4 | 1.98 | 1150.95 | 2500.00 |
| 32.5 | 47.8 | 245.0 | 11.4 | 0.74 | 620.68 | 1862.05 | 16.3 | 1.78 | 1042.28 | 2500.00 |
| 32.5 | 47.8 | 310.0 | 9.0 | 0.74 | 785.35 | 2356.06 | 12.9 | 1.78 | 1318.80 | 2500.00 |
| 32.5 | 47.8 | 401.0 | 7.0 | 0.74 | 1015.89 | 2500.00 | 10.0 | 1.78 | 1705.93 | 2500.00 |
| 32.5 | 47.8 | 469.0 | 6.0 | 0.74 | 1188.16 | 2500.00 | 8.5 | 1.78 | 1995.22 | 2500.00 |
| 32.5 | 47.8 | 516.0 | 5.4 | 0.74 | 1307.23 | 2500.00 | 7.8 | 1.78 | 2195.17 | 2500.00 |
| 32.5 | 47.8 | 569.0 | 4.9 | 0.74 | 1441.50 | 2500.00 | 7.0 | 1.78 | 2420.64 | 2500.00 |
| 32.5 | 47.8 | 627.0 | 4.5 | 0.74 | 1588.44 | 2500.00 | 6.4 | 1.78 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1093.0 | 2.6 | 0.67 | 2490.95 | 2500.00 | 3.7 | 1.60 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1205.0 | 2.3 | 0.67 | 2500.00 | 2500.00 | 3.3 | 1.60 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1328.0 | 2.1 | 0.67 | 2500.00 | 2500.00 | 3.0 | 1.60 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1463.0 | 1.9 | 0.67 | 2500.00 | 2500.00 | 2.7 | 1.60 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1613.0 | 1.7 | 0.67 | 2500.00 | 2500.00 | 2.5 | 1.60 | 2500.00 | 2500.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 24V-3500RPM Input | 24V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 4.6 | 608.7 | 1.40 | 21.98 | 65.95 | 869.6 | 3.09 | 33.98 | 101.94 |
| 22.5 | 81 | 5.9 | 474.6 | 1.40 | 28.20 | 84.59 | 678.0 | 3.09 | 43.58 | 130.75 |
| 22.5 | 81 | 6.9 | 405.8 | 1.40 | 32.98 | 98.93 | 579.7 | 3.09 | 50.97 | 152.92 |
| 22.5 | 73 | 8.4 | 333.3 | 1.3 | 36.18 | 108.54 | 476.19 | 2.79 | 55.92 | 167.77 |
| 22.5 | 73 | 10.6 | 264.2 | 1.3 | 45.65 | 136.96 | 377.36 | 2.79 | 70.57 | 211.71 |
| 22.5 | 73 | 13.5 | 207.4 | 1.3 | 58.14 | 174.43 | 296.30 | 2.79 | 89.88 | 269.63 |
| 22.5 | 73 | 16.0 | 175.0 | 1.3 | 68.91 | 206.74 | 250.00 | 2.79 | 106.52 | 319.56 |
| 24.5 | 65.6 | 19.3 | 145.1 | 1.13 | 74.70 | 224.10 | 207.3 | 2.51 | 115.47 | 346.40 |
| 24.5 | 65.6 | 24.4 | 114.8 | 1.13 | 94.44 | 283.31 | 163.9 | 2.51 | 145.98 | 437.94 |
| 24.5 | 65.6 | 31.6 | 88.6 | 1.13 | 122.30 | 366.91 | 126.6 | 2.51 | 189.05 | 567.16 |
| 24.5 | 65.6 | 37.0 | 75.7 | 1.13 | 143.20 | 429.61 | 108.1 | 2.51 | 221.36 | 664.08 |
| 26.5 | 59 | 45.0 | 62.2 | 1.0 | 156.65 | 469.94 | 88.89 | 2.25 | 242.14 | 726.41 |
| 26.5 | 59 | 57.0 | 49.1 | 1.0 | 198.42 | 595.25 | 70.18 | 2.25 | 306.71 | 920.12 |
| 26.5 | 59 | 73.6 | 38.0 | 1.0 | 256.20 | 768.60 | 54.35 | 2.25 | 396.03 | 1188.08 |
| 26.5 | 59 | 86.0 | 32.6 | 1.0 | 299.37 | 898.10 | 46.51 | 2.25 | 462.75 | 1388.25 |
| 26.5 | 59 | 95.0 | 29.5 | 1.0 | 330.70 | 992.09 | 42.11 | 2.25 | 511.18 | 1533.53 |
| 29.5 | 53 | 105.0 | 26.7 | 0.92 | 328.34 | 985.01 | 38.1 | 2.02 | 507.53 | 1522.58 |
| 29.5 | 53 | 133.0 | 21.1 | 0.92 | 415.89 | 1247.67 | 30.1 | 2.02 | 642.87 | 1928.61 |
| 29.5 | 53 | 172.0 | 16.3 | 0.92 | 537.84 | 1613.53 | 23.3 | 2.02 | 831.38 | 2494.14 |
| 29.5 | 53 | 201.0 | 13.9 | 0.92 | 628.53 | 1885.58 | 19.9 | 2.02 | 971.55 | 2500.00 |
| 29.5 | 53 | 221.0 | 12.7 | 0.92 | 691.07 | 2073.20 | 18.1 | 2.02 | 1068.23 | 2500.00 |
| 29.5 | 53 | 244.0 | 11.5 | 0.92 | 762.99 | 2288.96 | 16.4 | 2.02 | 1179.40 | 2500.00 |
| 32.5 | 47.8 | 245.0 | 11.4 | 0.8 | 690.95 | 2072.85 | 16.33 | 1.83 | 1068.04 | 2500.00 |
| 32.5 | 47.8 | 310.0 | 9.0 | 0.8 | 874.26 | 2500.00 | 12.90 | 1.83 | 1351.40 | 2500.00 |
| 32.5 | 47.8 | 401.0 | 7.0 | 0.8 | 1130.90 | 2500.00 | 9.98 | 1.83 | 1748.10 | 2500.00 |
| 32.5 | 47.8 | 469.0 | 6.0 | 0.8 | 1322.67 | 2500.00 | 8.53 | 1.83 | 2044.54 | 2500.00 |
| 32.5 | 47.8 | 516.0 | 5.4 | 0.8 | 1455.22 | 2500.00 | 7.75 | 1.83 | 2249.43 | 2500.00 |
| 32.5 | 47.8 | 569.0 | 4.9 | 0.8 | 1604.69 | 2500.00 | 7.03 | 1.83 | 2480.48 | 2500.00 |
| 32.5 | 47.8 | 627.0 | 4.5 | 0.8 | 1768.27 | 2500.00 | 6.38 | 1.83 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1093.0 | 2.6 | 0.74 | 2500.00 | 2500.00 | 3.7 | 1.64 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1205.0 | 2.3 | 0.74 | 2500.00 | 2500.00 | 3.3 | 1.64 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1328.0 | 2.1 | 0.74 | 2500.00 | 2500.00 | 3.0 | 1.64 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1463.0 | 1.9 | 0.74 | 2500.00 | 2500.00 | 2.7 | 1.64 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1613.0 | 1.7 | 0.74 | 2500.00 | 2500.00 | 2.5 | 1.64 | 2500.00 | 2500.00 |

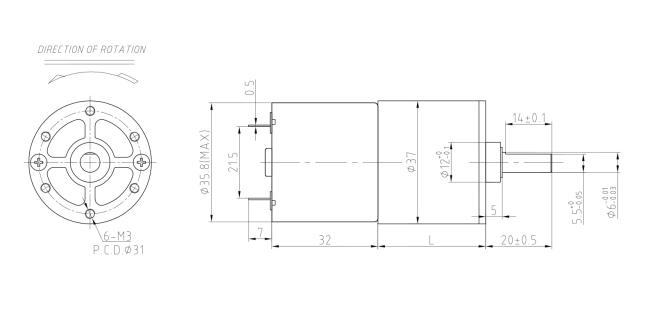

2D drawing
Please let us know your requirements and we will provide you with transmission solutions.
