37mm High Speed Brushed Dc Gearbox Micro Motor 1000rpm 1.5kgcm For Power Tool
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Manufacturer 37mm specifications 10v 12V 24v 25w high torque high speed 1000rpm 1.5kgcm dc gear motor for power tool

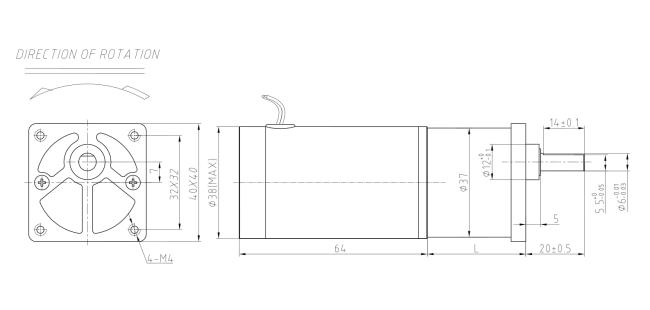

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY3864 | 12 | 4500 | 250 | 3600 | 0.95 | 19.50 | 7.35 | 64.82 | 58.50 | 5.70 |
| ZY3864 | 12 | 5000 | 300 | 4000 | 1.10 | 19.70 | 8.25 | 62.51 | 59.10 | 6.50 |
| ZY3864 | 24 | 5000 | 160 | 4000 | 0.55 | 19.50 | 8.17 | 61.88 | 58.50 | 3.10 |
| ZY3864 | 24 | 6000 | 220 | 4800 | 0.86 | 24.70 | 12.41 | 60.29 | 74.10 | 5.28 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-4500RPM Input | 12V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.5 | 81 | 8.2 | 439.0 | 5.95 | 129.52 | 388.56 | 487.8 | 6.68 | 130.85 | 392.54 |
| 25.5 | 73 | 11.7 | 307.7 | 5.37 | 166.55 | 499.65 | 341.9 | 6.02 | 168.26 | 504.77 |
| 25.5 | 73 | 14.7 | 244.9 | 5.37 | 209.25 | 627.76 | 272.1 | 6.02 | 211.40 | 634.20 |
| 25.5 | 73 | 19.1 | 188.5 | 5.37 | 271.89 | 815.67 | 209.4 | 6.02 | 274.68 | 824.03 |
| 27.5 | 65.6 | 27.2 | 132.4 | 4.82 | 347.94 | 1043.83 | 147.1 | 5.41 | 351.51 | 1054.53 |
| 27.5 | 65.6 | 34.4 | 104.7 | 4.82 | 440.04 | 1320.13 | 116.3 | 5.41 | 444.56 | 1333.67 |
| 27.5 | 65.6 | 44.5 | 80.9 | 4.82 | 569.24 | 1707.73 | 89.9 | 5.41 | 575.08 | 1725.25 |
| 29.5 | 59 | 63.5 | 56.7 | 4.34 | 730.57 | 2191.70 | 63.0 | 4.87 | 738.06 | 2214.18 |
| 29.5 | 59 | 80.3 | 44.8 | 4.34 | 923.85 | 2500.00 | 49.8 | 4.87 | 933.33 | 2500.00 |
| 29.5 | 59 | 104.0 | 34.6 | 4.34 | 1196.52 | 2500.00 | 38.5 | 4.87 | 1208.79 | 2500.00 |
| 32.5 | 53 | 148.0 | 24.3 | 3.90 | 1529.58 | 2500.00 | 27.0 | 4.37 | 1545.27 | 2500.00 |
| 32.5 | 53 | 187.0 | 19.3 | 3.90 | 1932.65 | 2500.00 | 21.4 | 4.37 | 1952.47 | 2500.00 |
| 32.5 | 53 | 242.0 | 14.9 | 3.90 | 2500.00 | 2500.00 | 16.5 | 4.37 | 2500.00 | 2500.00 |
| 35.5 | 47.8 | 346.0 | 10.4 | 3.51 | 2500.00 | 2500.00 | 11.6 | 3.94 | 2500.00 | 2500.00 |
| 35.5 | 47.8 | 437.0 | 8.2 | 3.51 | 2500.00 | 2500.00 | 9.2 | 3.94 | 2500.00 | 2500.00 |
| 35.5 | 47.8 | 565.0 | 6.4 | 3.51 | 2500.00 | 2500.00 | 7.1 | 3.94 | 2500.00 | 2500.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 24V-5000RPM Input | 24V-6000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.5 | 81 | 8.2 | 487.8 | 6.62 | 129.52 | 388.56 | 585.4 | 10.06 | 164.06 | 492.17 |
| 25.5 | 73 | 11.7 | 341.9 | 5.96 | 166.55 | 499.65 | 410.3 | 9.06 | 210.96 | 632.89 |
| 25.5 | 73 | 14.7 | 272.1 | 5.96 | 209.25 | 627.76 | 326.5 | 9.06 | 265.06 | 795.17 |
| 25.5 | 73 | 19.1 | 209.4 | 5.96 | 271.89 | 815.67 | 251.3 | 9.06 | 344.39 | 1033.18 |
| 27.5 | 65.6 | 27.2 | 147.1 | 5.36 | 347.94 | 1043.83 | 176.5 | 8.14 | 440.73 | 1322.18 |
| 27.5 | 65.6 | 34.4 | 116.3 | 5.36 | 440.04 | 1320.13 | 139.5 | 8.14 | 557.39 | 1672.17 |
| 27.5 | 65.6 | 44.5 | 89.9 | 5.36 | 569.24 | 1707.73 | 107.9 | 8.14 | 721.04 | 2163.13 |
| 29.5 | 59 | 63.5 | 63.0 | 4.82 | 730.57 | 2191.70 | 75.6 | 7.32 | 925.39 | 2500.00 |
| 29.5 | 59 | 80.3 | 49.8 | 4.82 | 923.85 | 2500.00 | 59.8 | 7.32 | 1170.21 | 2500.00 |
| 29.5 | 59 | 104.0 | 38.5 | 4.82 | 1196.52 | 2500.00 | 46.2 | 7.32 | 1515.59 | 2500.00 |
| 32.5 | 53 | 148.0 | 27.0 | 4.33 | 1529.58 | 2500.00 | 32.4 | 6.58 | 1937.47 | 2500.00 |
| 32.5 | 53 | 187.0 | 21.4 | 4.33 | 1932.65 | 2500.00 | 25.7 | 6.58 | 2448.02 | 2500.00 |
| 32.5 | 53 | 242.0 | 16.5 | 4.33 | 2500.00 | 2500.00 | 19.8 | 6.58 | 2500.00 | 2500.00 |
| 35.5 | 47.8 | 346.0 | 11.6 | 3.90 | 2500.00 | 2500.00 | 13.9 | 5.93 | 2500.00 | 2500.00 |
| 35.5 | 47.8 | 437.0 | 9.2 | 3.90 | 2500.00 | 2500.00 | 11.0 | 5.93 | 2500.00 | 2500.00 |
| 35.5 | 47.8 | 565.0 | 7.1 | 3.90 | 2500.00 | 2500.00 | 8.5 | 5.93 | 2500.00 | 2500.00 |
Please let us know your requirements and we will provide you with transmission solutions.
